DS 900 - Husqvarna Drill System (2015-01) CARRIAGE Parts Diagram

Drill System

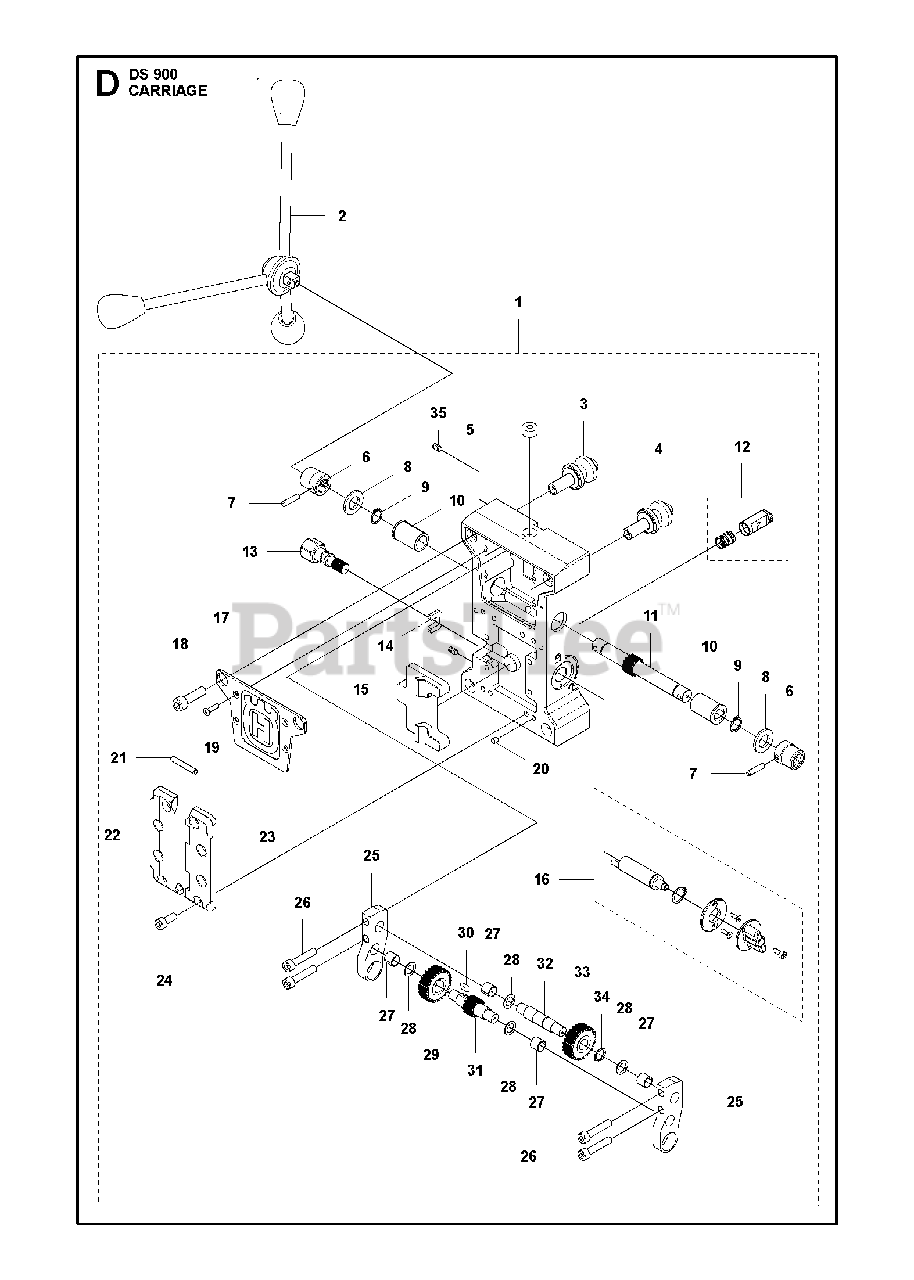

CARRIAGE Parts Diagram

  • Title

1

Husqvarna Construction 586 66 52-01

CARRIAGE

$

$

Currently unavailable

2

Husqvarna Construction 541 40 50-39

HANDLE

$240.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 586 90 41-01

WHEEL KITScrew included

$543.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 586 90 42-01

WHEEL KITScrew included

$555.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 531 14 08-97

LEVEL

$21.00

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 504 90 83-09

CASE

$188.99

$

Usually ships in 3-10 days

0

7

Husqvarna 720 18 28-51

PARALLEL PIN

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 734 11 86-01

WASHER

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 735 31 18-01

CIRCLIP
(Superseded to 735311800)

$

$

Not available

10

Husqvarna Construction 586 67 27-01

BEARING

$72.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 586 67 32-01

DRIVE SHAFT

$183.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 586 88 50-01

LOCK

$103.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 541 40 50-06

QUICK COUPLING

$41.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 541 40 50-27

BOLT

$23.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 584 97 30-01

LOCKING PLATE

$148.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 586 88 51-01

LOCK

$103.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 586 67 34-01

COVER PLATE

$

$

Currently unavailable

18

Husqvarna Construction 725 54 97-01

SCREW IHSCM

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 725 63 23-01

SCREW IHCSFM

$

$

Currently unavailable

20

Husqvarna 720 13 47-51

PARALLEL PIN

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 720 13 61-51

PIN

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 541 40 50-05

PLATE

$106.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 541 40 50-04

PLATE

$93.99

$

In Stock, only 1 left!

0

24

Husqvarna Construction 725 54 51-01

SCREW IHSCM

$3.49

$

In Stock, only 4 left!

0

25

Husqvarna Construction 586 67 26-01

BRACKET

$161.99

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 725 54 59-01

SCREW IHSCM

$8.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 506 11 05-01

BEARING

$39.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 586 73 12-01

SHIM

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 586 67 33-01

GEAR WHEEL

$103.83

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 586 73 18-01

PARALLEL KEY

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 586 67 30-01

SHAFT

$168.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 586 67 31-01

SHAFT

$44.33

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 586 67 29-01

GEAR WHEEL

$147.99

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 735 31 16-00

CIRCLIP1

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 587 15 97-01

SCREW1

$5.49

$

Usually ships in 3-10 days

0
