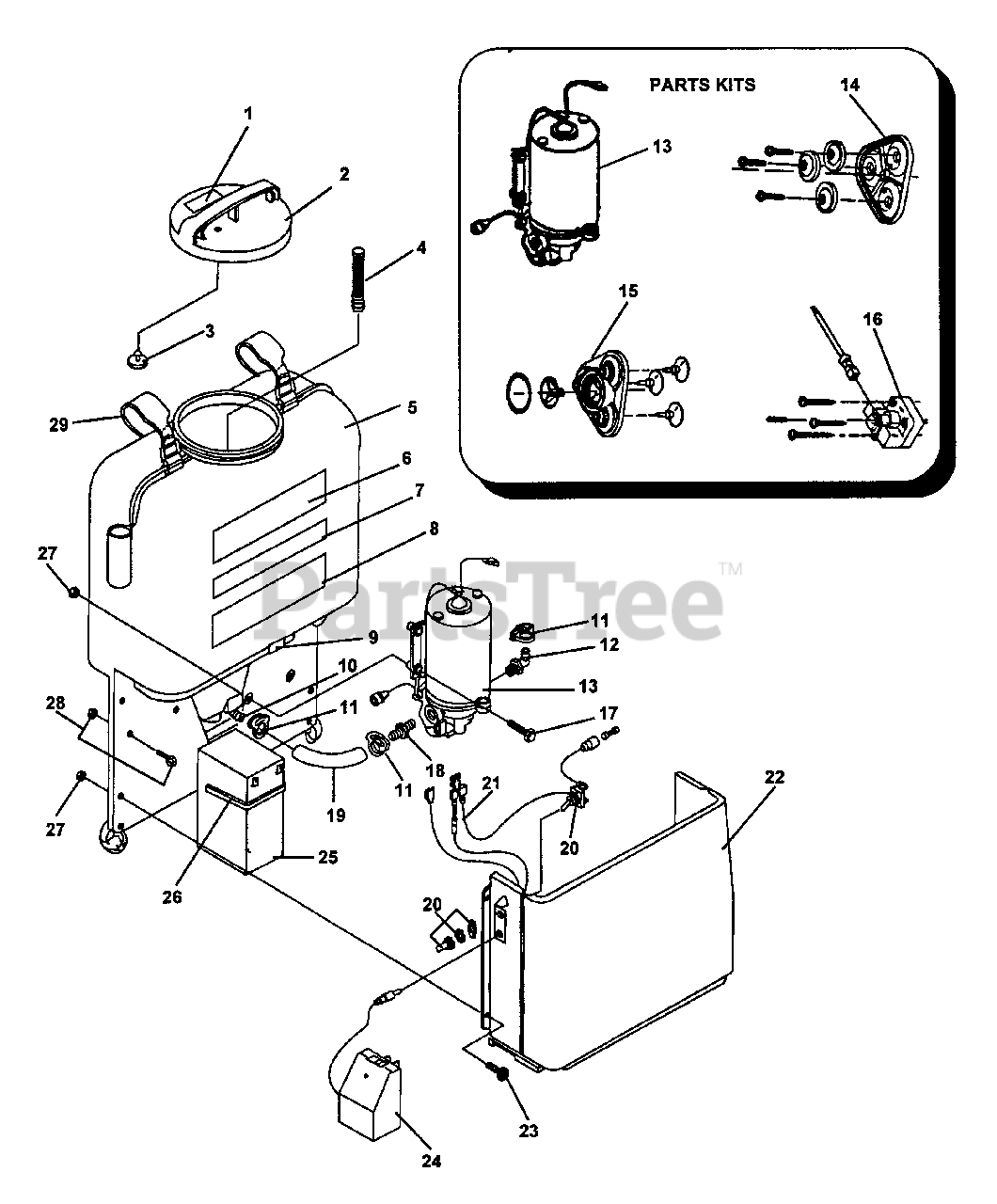

DSHR-1000 - Echo Battery Electric Sprayer Battery, Charger, Cover, Harness, Tank, Pump, Switch Parts Diagram

Battery Electric Sprayer

Battery, Charger, Cover, Harness, Tank, Pump, Switch Parts Diagram

  • Title

1

Echo 4310013

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

2

Echo 4310030

CAP

$

$

Not available

3

Echo 4020308

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

4

Echo 4310011

FILTER, TANK
(Superseded to Discontinued)

$

$

Not available

5

Echo 4310010

TANK

$152.99

$

Usually ships in 2-4 days

0

6

Echo 4310014

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

7

Echo 4310015

LABEL - SERIAL NUMBER
(Superseded to Discontinued)

$

$

Not available

8

Echo 4310016

LABEL - LARGE WARNING

$2.99

$

Usually ships in 2-4 days

0

9

Echo 4310017

LABEL - BATTERY WARNING
(Superseded to Discontinued)

$

$

Not available

10

Echo 4310012

BARB FITTING, TANK - 90 Deg.

$20.99

$

Usually ships in 2-4 days

0

11

Echo 4310130

CLAMP, HOSE

$1.49

$

Usually ships in 2-4 days

0

12

Echo 4310120

FITTING, BARB - 90 DEG. X 3/8 NPT
(Superseded to Discontinued)

$

$

Not available

13

Echo 4341236

PUMP - 12 VOLT
(Superseded to Discontinued)

$

$

Not available

14

Echo 4339506

DIAPHRAGM KIT
(Superseded to Discontinued)

$

$

Not available

15

Echo 4339505

VALVE KIT
(Superseded to Discontinued)

$

$

Not available

16

Echo 4337505

PRESSURE SWITCH KIT

$65.99

$

Usually ships in 2-4 days

0

17

Echo 4310140

BOLTS - 8 X 1-1/4"
(Superseded to Discontinued)

$

$

Not available

18

Echo 4310200

FITTING - 3/8 NPT

$2.49

$

Usually ships in 2-4 days

0

19

Echo 4310100

HOSE - 3/8 I.D. PUMP TO TANK
(Superseded to Discontinued)

$

$

Not available

20

Echo 4310060

SWITCH KIT
(Superseded to Discontinued)

$

$

Not available

21

Echo 4310070

WIRING HARNESS
(Superseded to Discontinued)

$

$

Not available

22

Echo 4310020

COVER
(Superseded to Discontinued)

$

$

Not available

23

Echo 4310180

BOLTS - 8 X 1-1/4"
(Superseded to Discontinued)

$

$

Not available

24

Echo 211211451

CHARGER, BATTERY - 12 VOLT

$157.99

$

Usually ships in 2-4 days

0

25

Echo 211127000

BATTERY - 12 VOLT

$132.99

$

Usually ships in 2-4 days

0

26

Echo 4310170

STRAP, BATTERY

$1.99

$

Usually ships in 2-4 days

0

27

Echo 4310190

NUTS, COVER #8
(Superseded to Discontinued)

$

$

Not available

28

Echo 4310160

EYEBOLT & NUT, BATTERY TIE DOWN
(Superseded to Discontinued)

$

$

Not available

29

Echo 4310050

HARNESS ASSY

$36.99

$

Usually ships in 2-4 days

0

Echo 21121452

CHARGING JACK ASS'Y

Note: NOT SHOWN

$42.99

$

Usually ships in 2-4 days

0
