DSRM-200 - Echo Battery Electric String Trimmer (SN: T9000001001 - T90000999999) Gear Case Parts Diagram

Battery Electric String Trimmer

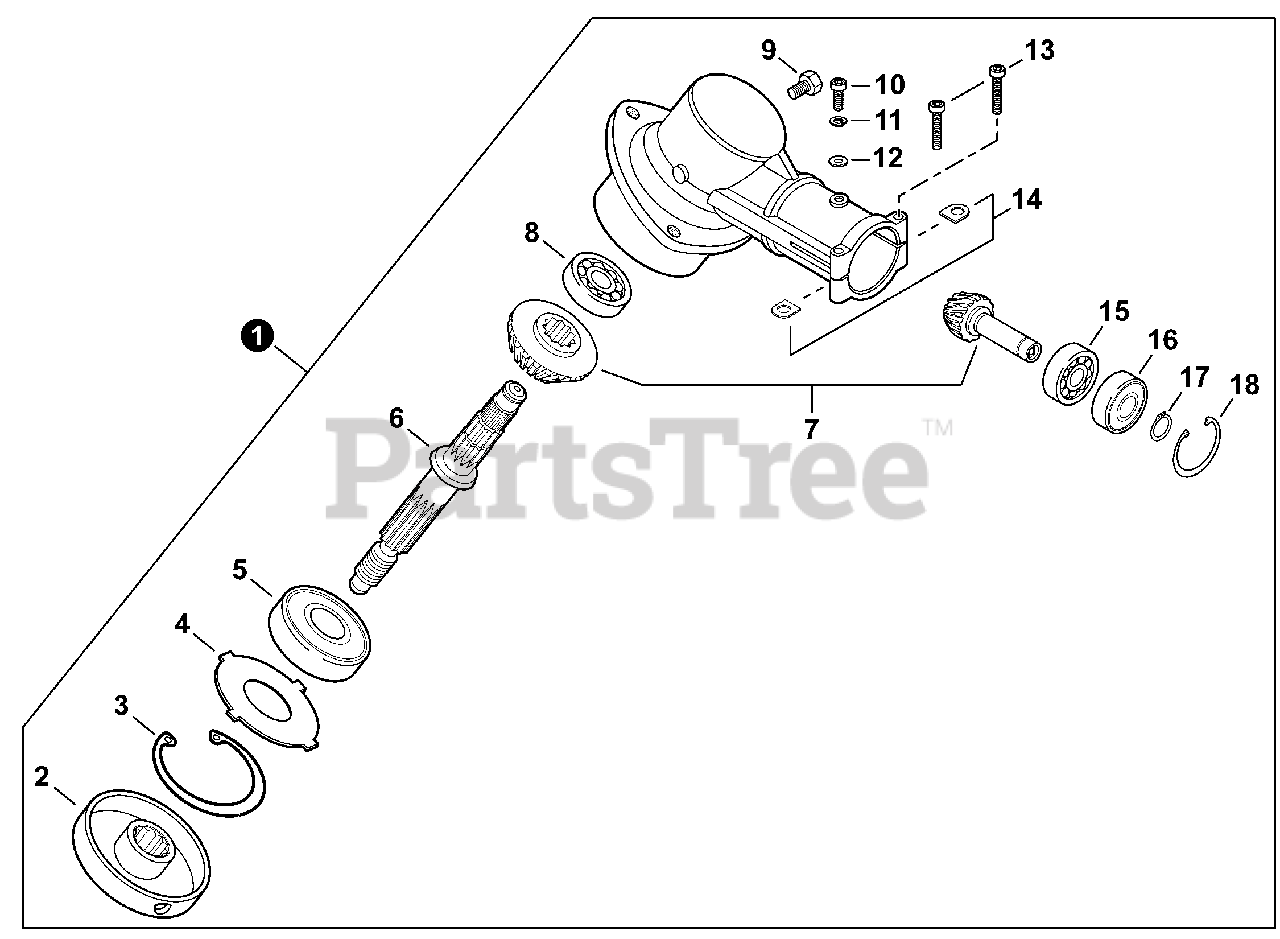

Gear Case Parts Diagram

  • Title

1

Echo P021046290

GEAR CASE ASSY

Note: Includes Items 2-18

$169.99

$

Usually ships in 2-4 days

0

2

Echo C535000210

PLATE, ADAPTOR - UPPER

$14.99

$

In Stock, Qty 20+

0

3

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 11

0

4

Echo V340000180

WASHER

$1.99

$

In Stock, Qty 16

0

5

Echo 90081206201

BEARING, BALL 6201

$13.99

$

In Stock, Qty 9

0

6

Echo C534000270

SHAFT, GEAR

$74.99

$

In Stock, only 4 left!

0

7

Echo V000000220

GEAR SET, BEVEL

$86.99

$

Usually ships in 2-4 days

0

8

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$10.99

$

In Stock, Qty 7

0

9

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 20+

0

10

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, only 4 left!

0

12

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo V805000260

BOLT, TORX 5×25

$1.49

$

Usually ships in 2-4 days

0

14

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

15

Echo 90085506900

BEARING, BALL 6900

$20.99

$

In Stock, only 2 left!

0

16

Echo 90085806900

BEARING, BALL 6900-Z

$25.99

$

In Stock, only 3 left!

0

17

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

18

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 15

0
