DSRM-200 - Echo Battery Electric String Trimmer (SN: T9000001001 - T90000999999) Motor Parts Diagram

Battery Electric String Trimmer

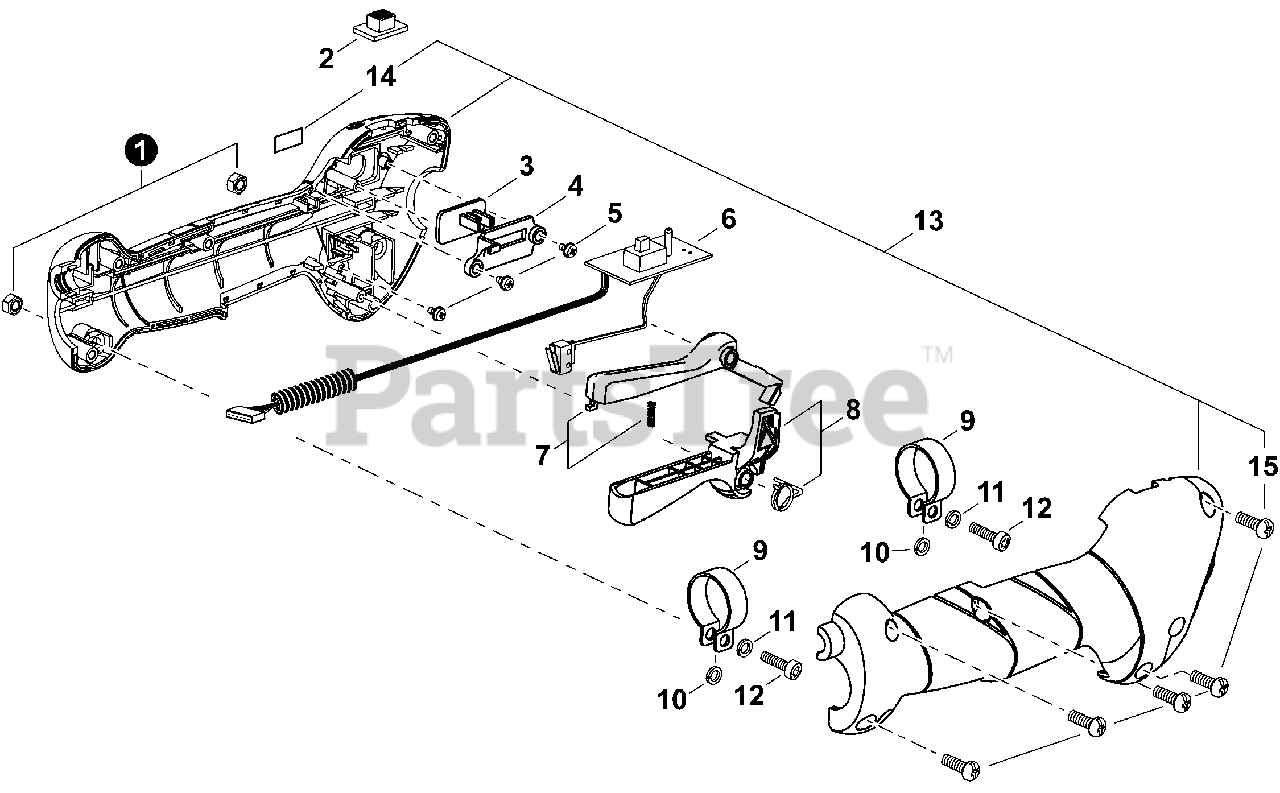

Motor Parts Diagram

  • Title

1

Echo P022033630

NUT

$

$

Not available

2

Echo P022033470

KNOB, SWITCH

$2.49

$

Usually ships in 2-4 days

0

3

Echo P022033480

SWITCH, SPEED CONTROL

$2.49

$

Usually ships in 2-4 days

0

4

Echo P022033490

BRACKET, SWITCH

$6.49

$

Usually ships in 2-4 days

0

5

Echo P022033560

SCREW

$

$

Not available

6

Echo P022033550

SWITCH, ON-OFF

$73.99

$

Usually ships in 2-4 days

0

7

Echo P022033500

LOCKOUT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

8

Echo P022037290

TRIGGER, THROTTLE

$12.99

$

In Stock, only 1 left!

0

9

Echo P022033540

BAND

$

$

Not available

10

Echo P022036730

WASHER

$

$

Not available

11

Echo P022033640

WASHER, SPRING

$1.49

$

Usually ships in 2-4 days

0

12

Echo P022033620

SCREW

$

$

Not available

13

Echo P021046680

GRIP SET, THROTTLE

Note: Includes Items 14-15

$43.99

$

Usually ships in 2-4 days

0

14

Echo X511000210

LABEL, SPEED CONTROL

$

$

Not available

15

Echo P022033590

SCREW

$

$

Not available
