DSRM-2600 U - Echo Battery Electric Brush Cutter (SN: U56500001001 - U56500999999) Handlebar Parts Diagram

Battery Electric Brush Cutter

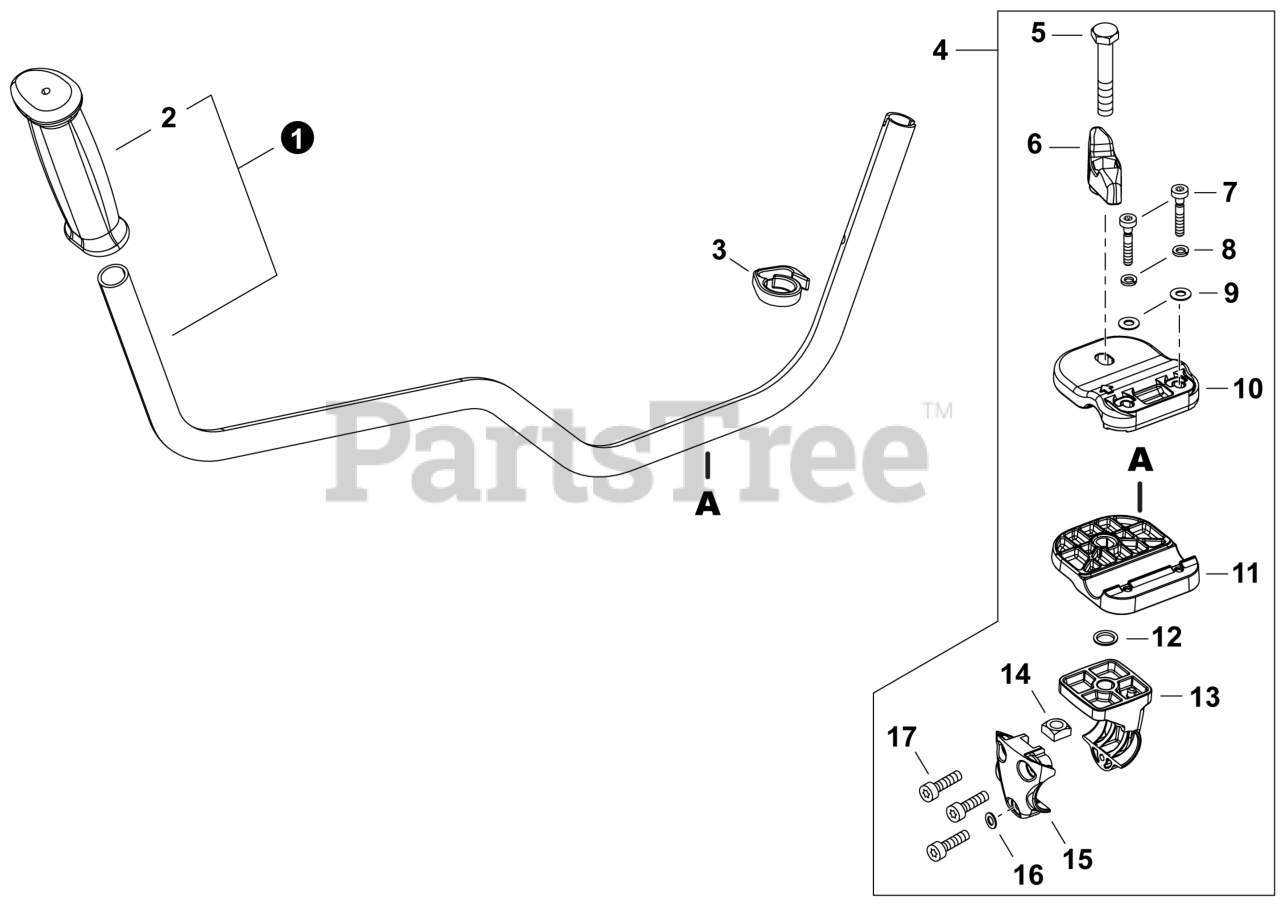

Handlebar Parts Diagram

  • Title

1

Echo P100010560

HANDLEBAR ASSY

Note: Includes item 2

$25.99

$

Usually ships in 2-4 days

0

2

Echo C403000031

GRIP, HANDLE

$9.99

$

Usually ships in 2-4 days

0

3

Echo 15911209961

CLIP, CABLE

$3.99

$

Usually ships in 2-4 days

0

4

Echo P100010570

BRACKET KIT, HANDLEBAR

Note: Includes items 4-16

$31.99

$

Usually ships in 2-4 days

0

5

Echo V205001400

BOLT M8x1.25

$2.49

$

Usually ships in 2-4 days

0

6

Echo V299000680

KNOB, FASTENER

$1.49

$

Usually ships in 2-4 days

0

7

Echo V203002500

BOLT 5x30

$1.49

$

Usually ships in 2-4 days

0

8

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, only 4 left!

0

9

Echo 90062000005

WASHER

$0.99

$

Usually ships in 2-4 days

0

10

Echo C423001090

BRACKET, HANDLE - UPPER

$9.99

$

Usually ships in 2-4 days

0

11

Echo C423001100

BRACKET, HANDLE - LOWER

$10.99

$

Usually ships in 2-4 days

0

12

Echo 90072020007

O-RING 7

$1.49

$

Usually ships in 2-4 days

0

13

Echo C423001110

BRACKET, MOUNTING - RIGHT

$7.49

$

Usually ships in 2-4 days

0

14

Echo 90056550008

NUT 8x1.25

$1.49

$

Usually ships in 2-4 days

0

15

Echo C423001120

BRACKET, MOUNTING - LEFT

$6.49

$

Usually ships in 2-4 days

0

16

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0
