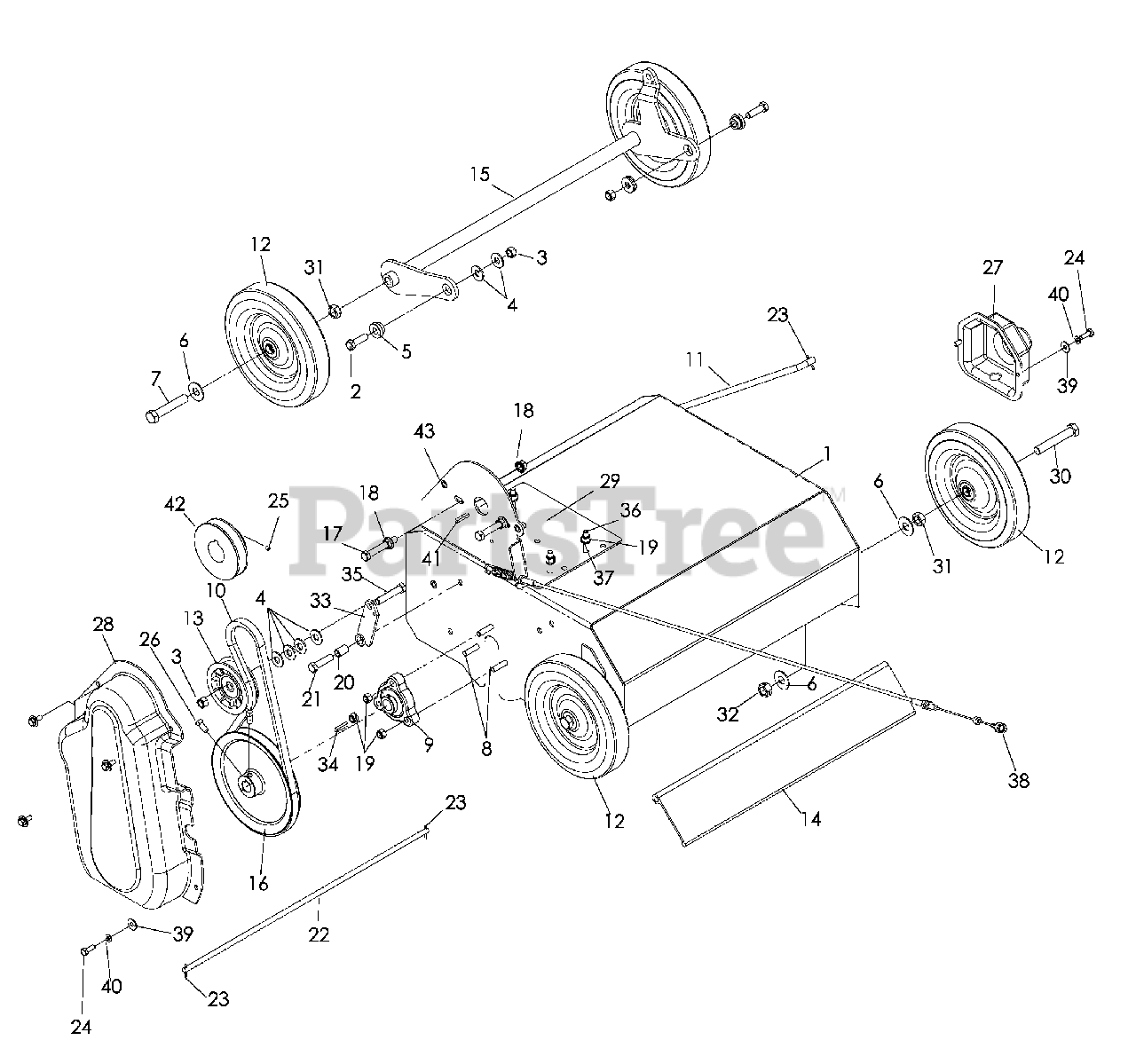

DT 18 BF (966019501) - Husqvarna 18" Dethatcher (2009-01) Chassis / Frame Parts Diagram

18" Dethatcher

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 525398701

BODY W/DECALS

$

$

Not available

2

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, Qty 6

0

3

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106847

BUSHING

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990550

WASHER ½ FLAT

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101332

HCS ½-13 x 2¾

$4.99

$

In Stock, only 4 left!

0

8

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, Qty 10

0

9

Husqvarna 539100488

BEARING, FLANGE

$74.99

$

In Stock, Qty 6

0

10

Husqvarna 539100439

BELT

$42.99

$

In Stock, only 1 left!

0

11

Husqvarna 539106805

LINKAGE

$

$

Not available

12

Husqvarna 540075051

WHEEL 8 x 1¾

$37.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110311

PULLEY, IDLER

$13.99

$

In Stock, Qty 20+

0

14

Husqvarna 539100508

REAR FLAP

$60.99

$

Usually ships in 3-10 days

0

15

Husqvarna 525245201

FRONT AXLE

$

$

Not available

16

Husqvarna 539100511

PULLEY 7"

$93.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990637

HCS 3/8-16 x 2½

$1.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539990613

NUT 3/8-16 SERRATED

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539100482

BEARING

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 539100512

FLAP ROD

$40.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990037

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

In Stock, only 4 left!

0

25

Husqvarna 539976959

KPSS 5/16-18 x 3/8

$

$

Currently unavailable

26

Husqvarna 539102717

SCREW-18 x 5/8 SET

$3.99

$

In Stock, Qty 6

0

27

Husqvarna 539106754

GUARD, SHAFT

$

$

Not available

28

Husqvarna 539108069

GUARD, BELT
(Superseded to 539108070)

$145.99

$

In Stock, only 3 left!

0

29

Husqvarna 539106771

BACKING PLATE
(Superseded to 576225201)

$

$

Not available

30

Husqvarna 539101572

HCS ½-13 x 3

$4.99

$

In Stock, Qty 12

0

31

Husqvarna 539990625

NUT ½-13 JAM

$3.99

$

In Stock, Qty 15

0

32

Husqvarna 539200100

NUT ½-13 CNTRLK

$6.49

$

In Stock, Qty 10

0

33

Husqvarna 522795001

IDLER ARM

$74.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539910061

KEY 3/16 x 3/16 x 1

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 12

0

36

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 539990187

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539106849

CABLE

$37.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990598

WASHER ¼

$

$

Not available

40

Husqvarna 539990052

LOCKWASHER ¼

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539910061

KEY 3/16"

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539108059

PULLEY
(Superseded to 539108543)

$

$

Not available

43

Husqvarna 539108147

KNURLED INSERT ¼-20

$3.99

$

Usually ships in 3-10 days

0
