DT 18 BF - Husqvarna 18" Dethatcher (2009-01) CHASSIS / FRAME Parts Diagram

18" Dethatcher

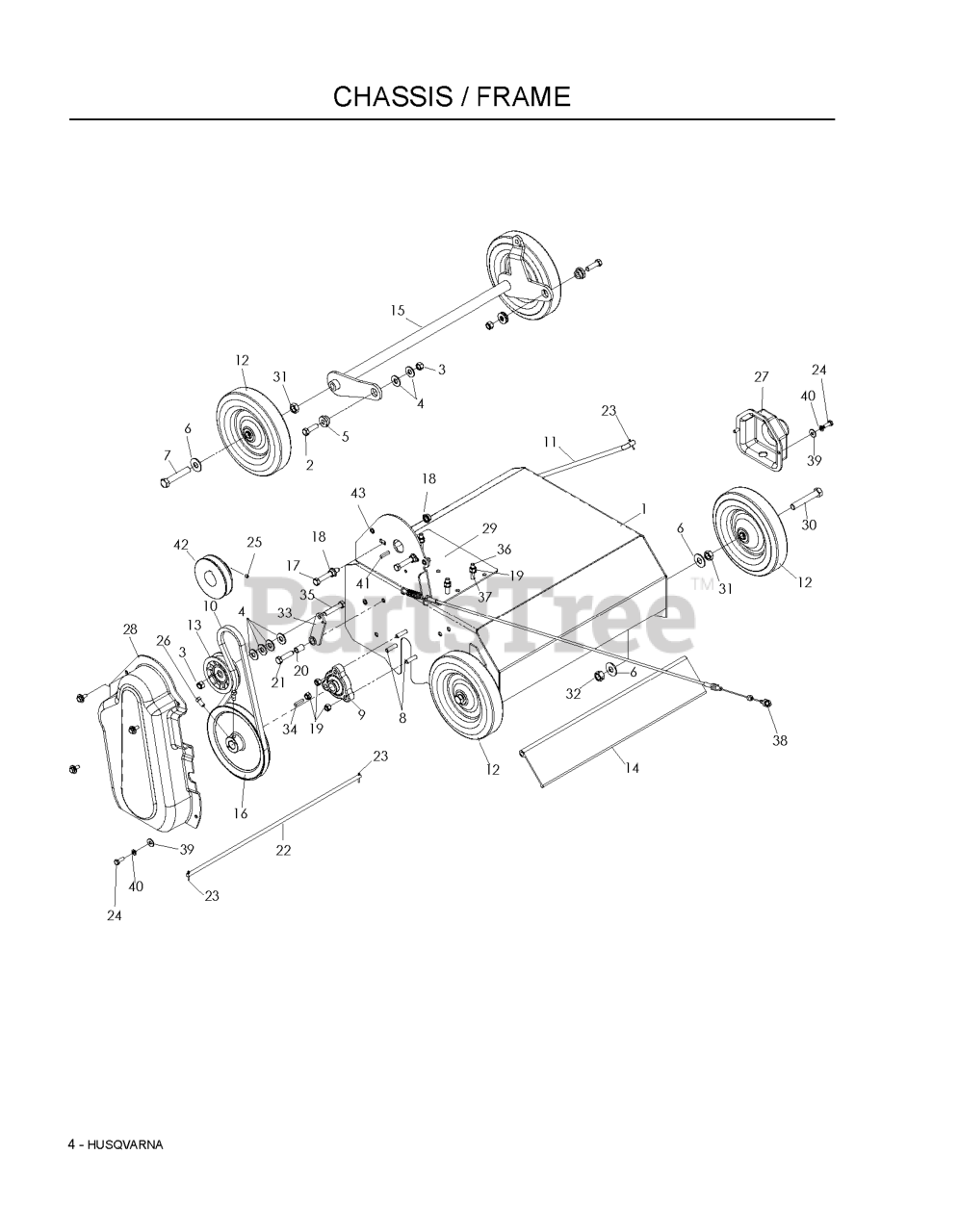

CHASSIS / FRAME Parts Diagram

  • Title

10

Husqvarna 539100439

BELT, DRIVE RAKE/SLICER DFS

$42.99

$

In Stock, only 1 left!

0

14

Husqvarna 539100508

DEFLECTOR SHIELD

$60.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

3

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539106849

CABLE POWER RAKE

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539106805

LINKAGE

$

$

Not available

15

Husqvarna 525245201

FRONT AXLE ORANGE

$

$

Not available

28

Husqvarna 539108069

BELT GUARD
(Superseded to 539108070)

$145.99

$

In Stock, only 3 left!

0

33

Husqvarna 522795001

IDLER, ARM, BLACK

$74.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539910061

KEY, 3/16 SQUARE

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 12

0

43

Husqvarna 539108147

KNURLED INSERT

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539100512

DEFLECTOR ROD

$40.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$13.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

2

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, Qty 6

0

20

Husqvarna 539100482

BEARING, ONLITE RAKE/DT

$10.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, Qty 10

0

18

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990625

NUT 1/2 HEX JAM

$3.99

$

In Stock, Qty 15

0

41

Husqvarna 539910061

KEY, 3/16 SQUARE

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 540075051

WHEEL 8 X 1 3/4 RAKE

$37.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

23

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106847

BUSHING RAKE

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539100488

BEARING, FLANGED

$74.99

$

In Stock, Qty 6

0

8

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

26

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, Qty 6

0

16

Husqvarna 539100511

PULLEY, MAIN SHAFT

$93.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539106771

BACKING PLATE, BLUE
(Superseded to 576225201)

$

$

Not available

42

Husqvarna 539108059

ENGINE PULLEY - 5.5 HP
(Superseded to 539108543)

$

$

Not available

1

Husqvarna 525398701

KIT, BODY W/DECALS

$

$

Not available

24

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

37

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539106754

SHAFT GUARD

$

$

Not available

21

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0
