DT 18 C (968981005) - Husqvarna 18" Dethatcher (2000-12) Delta Blade Reel Parts Diagram

18" Dethatcher

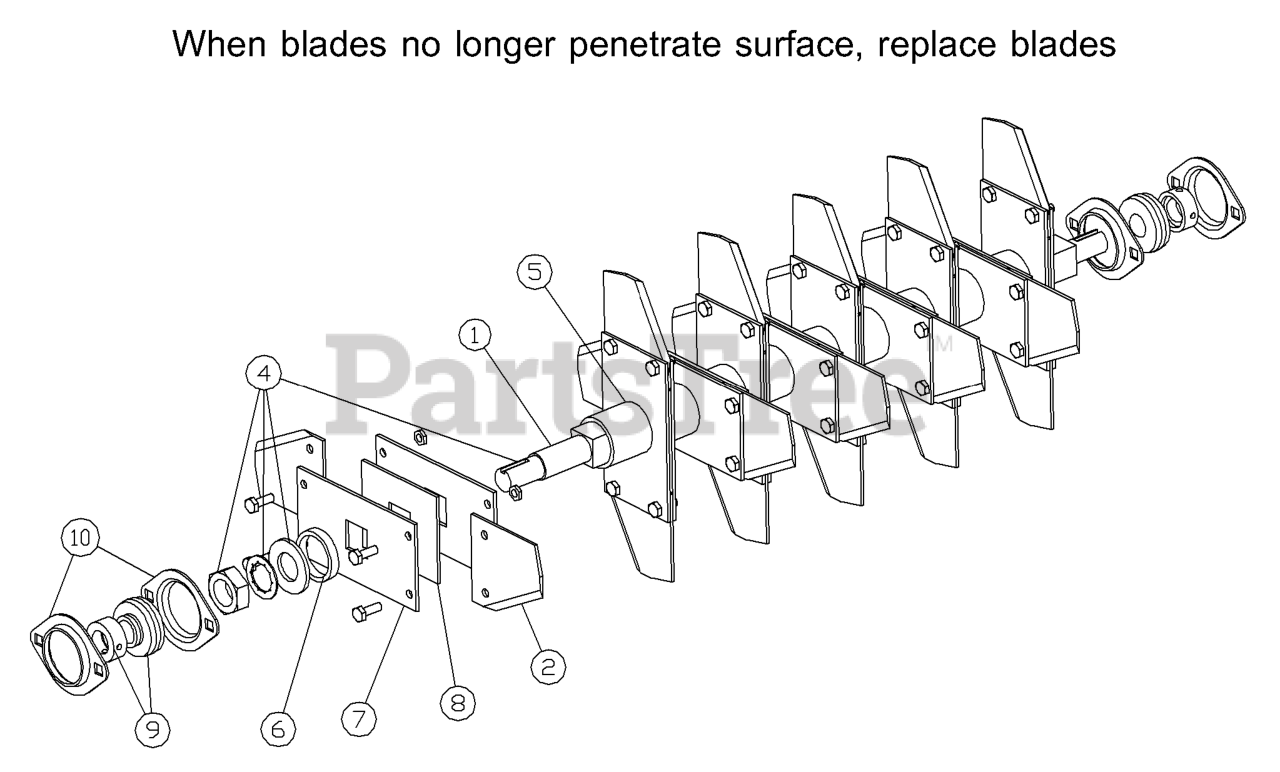

Delta Blade Reel Parts Diagram

  • Title

1

Husqvarna 540005249

DELTA REEL ASSY
(Superseded to 540000071)

Note: W/o blades or hardware DT18C

$

$

Not available

1

Husqvarna 540005049

DELTA REEL ASSY,W/O BLADES
(Superseded to 540005942)

Note: W/o blades or hardware DT18

$

$

Not available

1

Husqvarna 540005920

DELTA REEL COMPLETE
(Superseded to 540000071)

Note: Complete w/o bearings DT18C

$

$

Not available

1

Husqvarna 540005940

DELTA REEL
(Superseded to 540005942)

Note: Complete w/o bearings DT18

$

$

Not available

1

Husqvarna 540005922

DELTA REEL ASSY
(Superseded to 540000071)

Note: Complete w/ blades and bearings DT18C

$

$

Not available

1

Husqvarna 540005942

DELTA REEL WSL

Note: Complete w/ blades and bearings DT18

$

$

Not available

2

Husqvarna 540005970

BLADE SET
(Superseded to 539005970)

Note: DT18C / DT18

$102.99

$

In Stock, only 2 left!

0

3

Husqvarna 540005075

BOLT KIT

Note: DT18C / DT18 (not shown)

$

$

Not available

4

Husqvarna 540005061

SHAFT, DELTA REEL
(Superseded to 540005942)

Note: W/ nut and washers DT18C / DT18

$

$

Not available

5

Husqvarna 540005064

SPACER, CARRIER
(Superseded to 539005064)

Note: DT18C / DT18

$

$

Not available

6

Husqvarna 540005065

END RING, STEEL

Note: DT18C / DT18

$

$

Not available

7

Husqvarna 540005268

PLATE, BLADE CARRIER

Note: DT18C

$

$

Not available

7

Husqvarna 540005062

PLATE, BLADE CARRIER
(Superseded to 539005062)

Note: DT18

$

$

Not available

8

Husqvarna 540005269

PLATE, BLADE SPACER
(Superseded to 539005269)

Note: DT18C

$

$

Not available

8

Husqvarna 540005063

PLATE, BLADE SPACER
(Superseded to 539005063)

Note: DT18

$

$

Not available

9

Husqvarna 540000315

BEARING
(Superseded to 539000315)

Note: DT18C / DT18

$41.99

$

In Stock, Qty 6

0

10

Husqvarna 540005185

STAMPING KIT
(Superseded to 539005185)

Note: Includes flanges and hardware DT18C / DT18

$16.99

$

In Stock, only 4 left!

0
