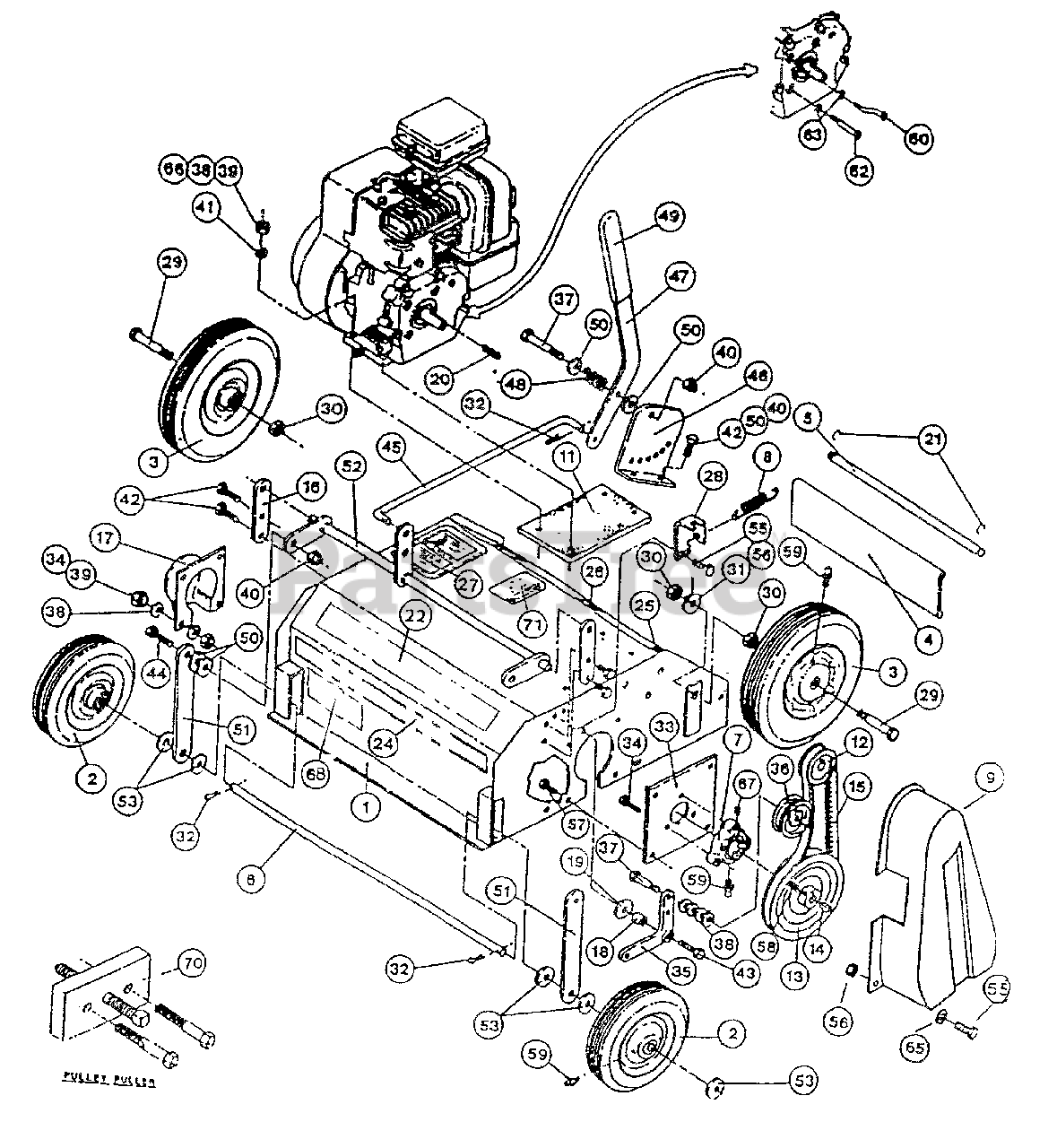

DT 20 A (539104746-02) - Husqvarna 20" Dethatcher (2000-05) Body Assembly Parts Diagram

20" Dethatcher

Body Assembly Parts Diagram

  • Title

1

Husqvarna 539104550

Dethatcher Body w/Decals

$

$

Not available

1

Husqvarna 539100873

Slicer Body w/Decals

$

$

Currently unavailable

2

Husqvarna 539104549

Front Wheel

$

$

Not available

3

Husqvarna 539104548

Rear Wheel

$32.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539100508

Deflector Shield

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539100512

Deflector Rod

$40.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539100509

Front Axle

$33.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539100488

Flanged Bearing

$74.99

$

In Stock, Qty 6

0

8

Husqvarna 539976564

Extension Spring

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976086

Belt Guard

$61.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539100480

Engine Pad

$

$

Not available

12

Husqvarna 539100516

Engine Drive Pulley

$36.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539100511

Main Shaft Pulley

$93.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539910211

#9 Woodruff Key

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 539100439

Drive Belt

$42.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539100513

Pivot Arm

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976524

Shaft Guard

$2.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539100482

Oilite Bearing

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539100514

Spacer

$

$

Not available

20

Husqvarna 539100471

3/16 Square x 1-3/4 Key

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539100470

5/16 Retaining Ring

$0.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104790

Decal, Husqvarna

$

$

Not available

24

Husqvarna 539104793

Decal, DT20

$

$

Currently unavailable

25

Husqvarna 539913010

Warning Decal, Small

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 539100342

Warning Decal, Large
(Superseded to 539113213)

$21.99

$

In Stock, only 1 left!

0

27

Husqvarna 539100506

Adjusting Decal

$

$

Not available

28

Husqvarna 539100504

Cable Bracket

$

$

Not available

29

Husqvarna 539100464

5/8-11 x 4 Axle Bolt

$

$

Not available

30

Husqvarna 539100476

5/8-11 Hex Jam Nut

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990333

5/8 Split Lock Washer

$1.49

$

In Stock, Qty 6

0

32

Husqvarna 539990365

1/8 x 3/4 Cotter Pin
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539100487

End Plate

$23.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539100469

5/16-18 x 1-1/4 Tap Bolt
(Superseded to 539990627)

$4.99

$

In Stock, Qty 10

0

35

Husqvarna 539100485

Bell Crank

$

$

Not available

36

Husqvarna 539919078

Idler Pulley

$37.99

$

In Stock, Qty 9

0

37

Husqvarna 539990588

3/8-16 x 2 Hex Cap Screw

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 539990692

5/16 Flat Washer
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990717

5/16-18 Nyloc Nut
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539976979

3/8-16 Nyloc Nut
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539990187

5/16 Split Lock Washer
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

42

Husqvarna 539990563

3/8-16 x 1 Hex Cap Screw

$1.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539990655

3/8-16 x 1-1/2 HCS

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 539976941

3/8-16 x 1-1/4 HCS

$4.99

$

In Stock, Qty 6

0

45

Husqvarna 539100496

Linkage Arm

$

$

Not available

46

Husqvarna 539976121

Adjustment Gauge

$

$

Not available

47

Husqvarna 539100498

Adjusting Lever

$

$

Not available

48

Husqvarna 539976438

Compression Spring

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539976526

Lever Grip

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539990517

3/8 Flat Washer

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539100501

Lift Arm

$

$

Not available

52

Husqvarna 539100500

Height Adjusting Rod

$48.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990550

1/2 Flat Washer

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539990072

1/4-20 x 5/8 Hex Cap Screw

$3.99

$

In Stock, only 3 left!

0

56

Husqvarna 539976978

1/4-20 Nyloc Nut
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990206

5/16-18 x 3/4 Hex Cap Screw
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

58

Husqvarna 539976956

5/16-18 x 3/8 Set Screw

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539976998

1/4-28 Straight Grease Zerk
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

60

Husqvarna 539100521

Belt Guide, Offset

$

$

Not available

62

Husqvarna 539100573

5/16-24 x 2-3/4 HCS

$

$

Not available

63

Husqvarna 539100561

5/16-24 Hex Jam Nut

$0.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539990598

1/4 Flat Washer

$

$

Not available

66

Husqvarna 539990669

5/16-18 x 1-3/4 HCS
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

67

Husqvarna 539977679

#10-32 x 1/4 Set Screw

$

$

Not available

68

Husqvarna 539105071

Decal, Nascar

$

$

Not available

70

Husqvarna 539100907

Pulley Puller

Note: (Optional)

$

$

Not available

71

Husqvarna 539101881

Decal, Warning
(Superseded to 596024201)

$2.49

$

In Stock, only 4 left!

0
