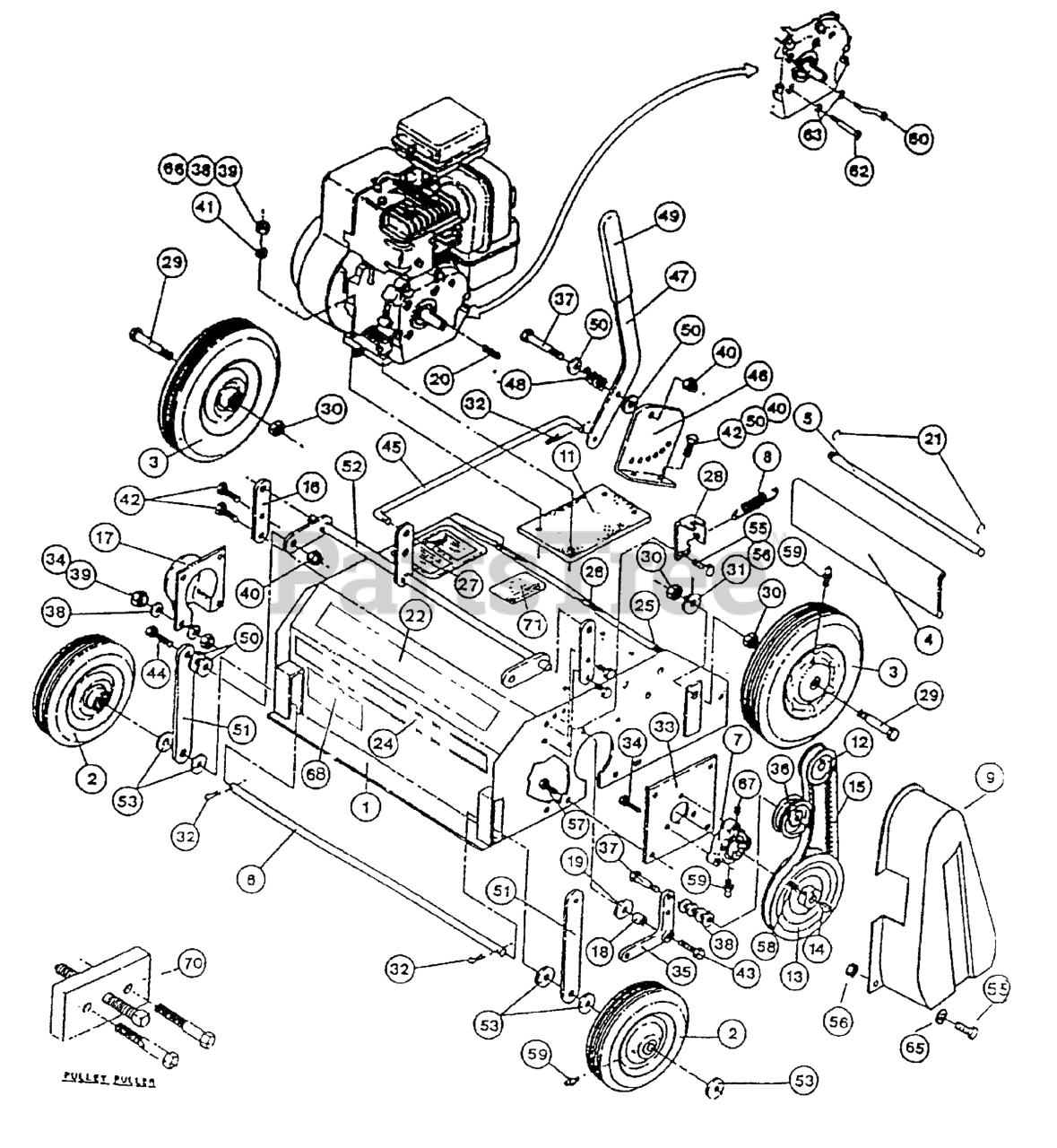

DT 20 A (539104746-02) - Husqvarna 20" Dethatcher (2000-05) Body Assembly Parts Diagram

20" Dethatcher

Body Assembly Parts Diagram

  • Title

1

Husqvarna 539104550

RAKE BODY W/DECALS

$

$

Not available

1

Husqvarna 539100873

Slicer Body w/Decals

$

$

Currently unavailable

2

Husqvarna 539104549

WHEEL, FRONT

$

$

Not available

3

Husqvarna 539104548

WHEEL

$

$

Not available

4

Husqvarna 539100508

DEFLECTOR SHIELD

$

$

Not available

5

Husqvarna 539100512

DEFLECTOR ROD

$45.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539100509

FRONT AXLE

$

$

Not available

7

Husqvarna 539100488

BEARING, FLANGED

$51.99

$

In Stock, only 2 left!

0

8

Husqvarna 539976564

EXTENSION SPRING

$

$

Not available

9

Husqvarna 539976086

BELT GUARD

$

$

Not available

11

Husqvarna 539100480

PAD, ENGINE

$

$

Not available

12

Husqvarna 539100516

PULLEY, ENGINE DRIVE

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539100511

PULLEY, MAIN SHAFT

$

$

Not available

14

Husqvarna 539910211

KEY, #9 WOODRUFF

$3.49

$

In Stock, only 2 left!

0

15

Husqvarna 539100439

BELT, DRIVE RAKE/SLICER DFS

$37.99

$

In Stock, only 1 left!

0

16

Husqvarna 539100513

PIVOT ARM

$

$

Not available

17

Husqvarna 539976524

SHAFT GUARD

$

$

Not available

18

Husqvarna 539100482

BEARING, ONLITE RAKE/DT

$

$

Not available

19

Husqvarna 539100514

SPACER

$

$

Not available

20

Husqvarna 539100471

KEY 3/16 SQUARE X 1 3/4

$

$

Not available

21

Husqvarna 539100470

RETAINING RING 5/16

$

$

Not available

22

Husqvarna 539104790

DECAL, HUSQVARNA 17.5"

$

$

Not available

24

Husqvarna 539104793

Decal, DT20

$

$

Currently unavailable

25

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539100342

DECAL, WARNING
(Superseded to 539113213)

$

$

Not available

27

Husqvarna 539100506

DECAL, ADJUSTING

$

$

Not available

28

Husqvarna 539100504

BRACKET, CABLE

$

$

Not available

29

Husqvarna 539100464

BOLT, AXLE 5/8-11 X 4

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539100476

NUT JAM 5/8-11 HEX

$

$

Not available

31

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, only 2 left!

0

32

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539100487

END PLATE

$

$

Not available

34

Husqvarna 539100469

BOLT, TAP 5/16-18
(Superseded to 539990627)

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 539100485

BELL CRANK

$

$

Not available

36

Husqvarna 539919078

IDLER PULLEY

$31.99

$

In Stock, Qty 5

0

37

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

43

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

45

Husqvarna 539100496

LINKAGE ARM

$

$

Not available

46

Husqvarna 539976121

ADJUSTMENT GAUGE

$

$

Not available

47

Husqvarna 539100498

ADJUSTING LEVER

$

$

Not available

48

Husqvarna 539976438

COMPRESSION SPRING

$

$

Not available

49

Husqvarna 539976526

GRIP

$3.49

$

In Stock, only 1 left!

0

50

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 539100501

LIFT ARM

$

$

Not available

52

Husqvarna 539100500

HEIGHT ADJ ROD

$

$

Not available

53

Husqvarna 539990550

WASHER 1/2 FLAT

$

$

Not available

55

Husqvarna 539990072

HCS 1/4C X 5/8
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

57

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$

$

Not available

59

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

60

Husqvarna 539100521

BELT GUIDE, OFFSET

$

$

Not available

62

Husqvarna 539100573

SCREW, 5/16-24 X 2-3/4 HED CAP

$

$

Not available

63

Husqvarna 539100561

NUT JAM 5/16F HEX

$

$

Not available

65

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

66

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$

$

Not available

67

Husqvarna 539977679

SET SCW #10-32 X 1/4

$

$

Not available

68

Husqvarna 539105071

DECAL, NASCAR

$

$

Not available

70

Husqvarna 539100907

PULLEY PULLER

Note: (Optional)

$

$

Not available

71

Husqvarna 539101881

DECAL, PROP. 65
(Superseded to 596024201)

$

$

Not available
