DT 20 A (539104746-02) - Husqvarna 20" Dethatcher (2000-05) "Quick Change" Slicer Shaft Conversion Parts Diagram

20" Dethatcher

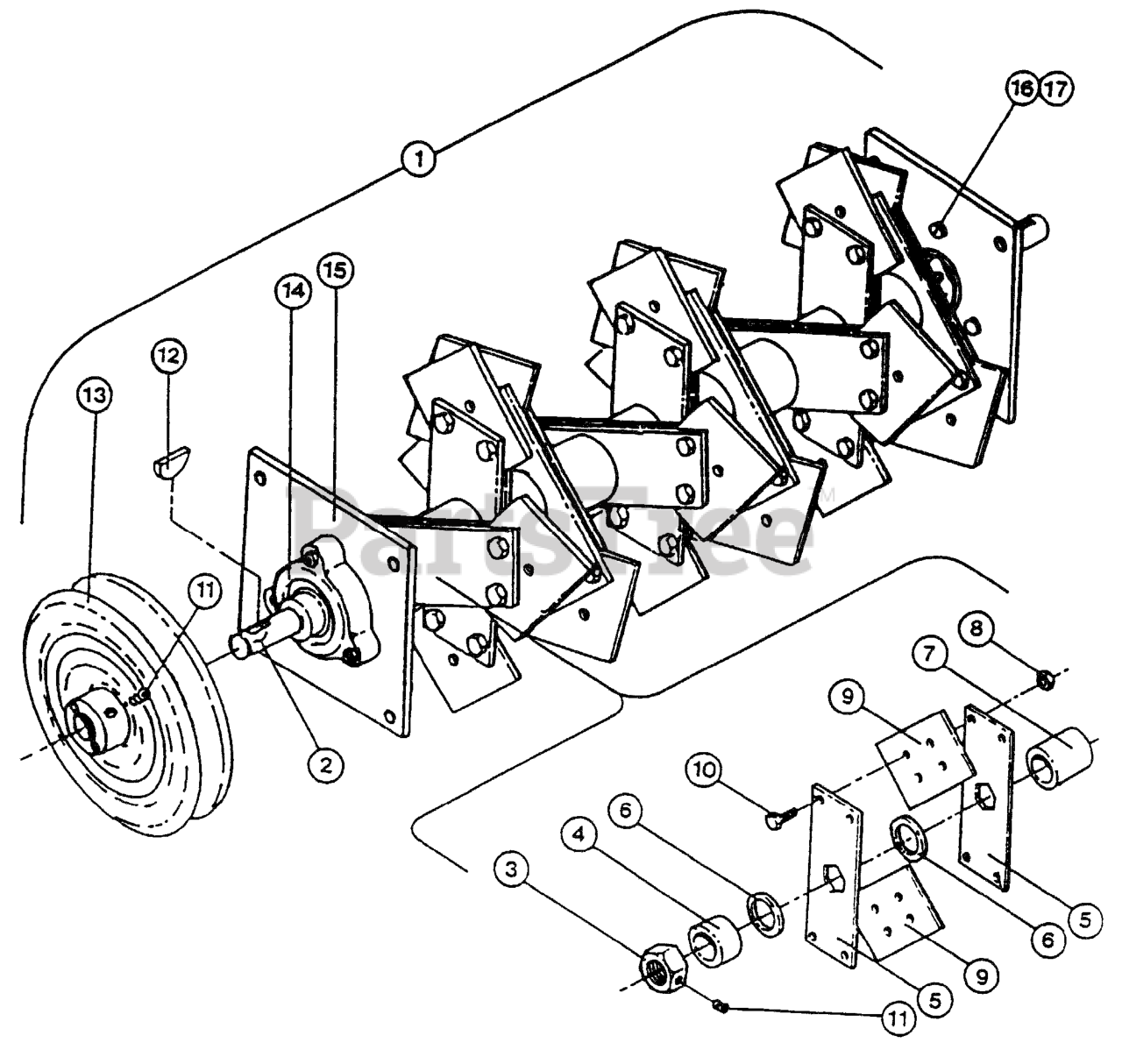

"Quick Change" Slicer Shaft Conversion Parts Diagram

  • Title

1

Husqvarna 539100416

KIT-SLICER SHAFT QUICK CHANGE

Note: This kit converts your Dethatcher to a Slicer

$

$

Not available

2

Husqvarna 539100529

SLICER SHAFT, BARE

$

$

Not available

3

Husqvarna 539100530

JAM NUT W/SET SCREW

$

$

Not available

4

Husqvarna 539100531

SPACER, SLEEVE SHORT

$

$

Not available

5

Husqvarna 539100532

BLADE HOLDER PLATE

$

$

Not available

6

Husqvarna 539100533

WASHER, BLADE

$

$

Not available

7

Husqvarna 539100534

SPACER, SLEEVE (LONG)

$

$

Not available

8

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 539100536

SLICER BLADE

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990072

HCS 1/4C X 5/8
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$

$

Not available

12

Husqvarna 539910211

KEY, #9 WOODRUFF

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 539100511

PULLEY, MAIN SHAFT

$

$

Not available

14

Husqvarna 539100488

BEARING, FLANGED

$51.99

$

In Stock, only 2 left!

0

15

Husqvarna 539100487

END PLATE

$

$

Not available

16

Husqvarna 539100469

BOLT, TAP 5/16-18
(Superseded to 539990627)

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0
