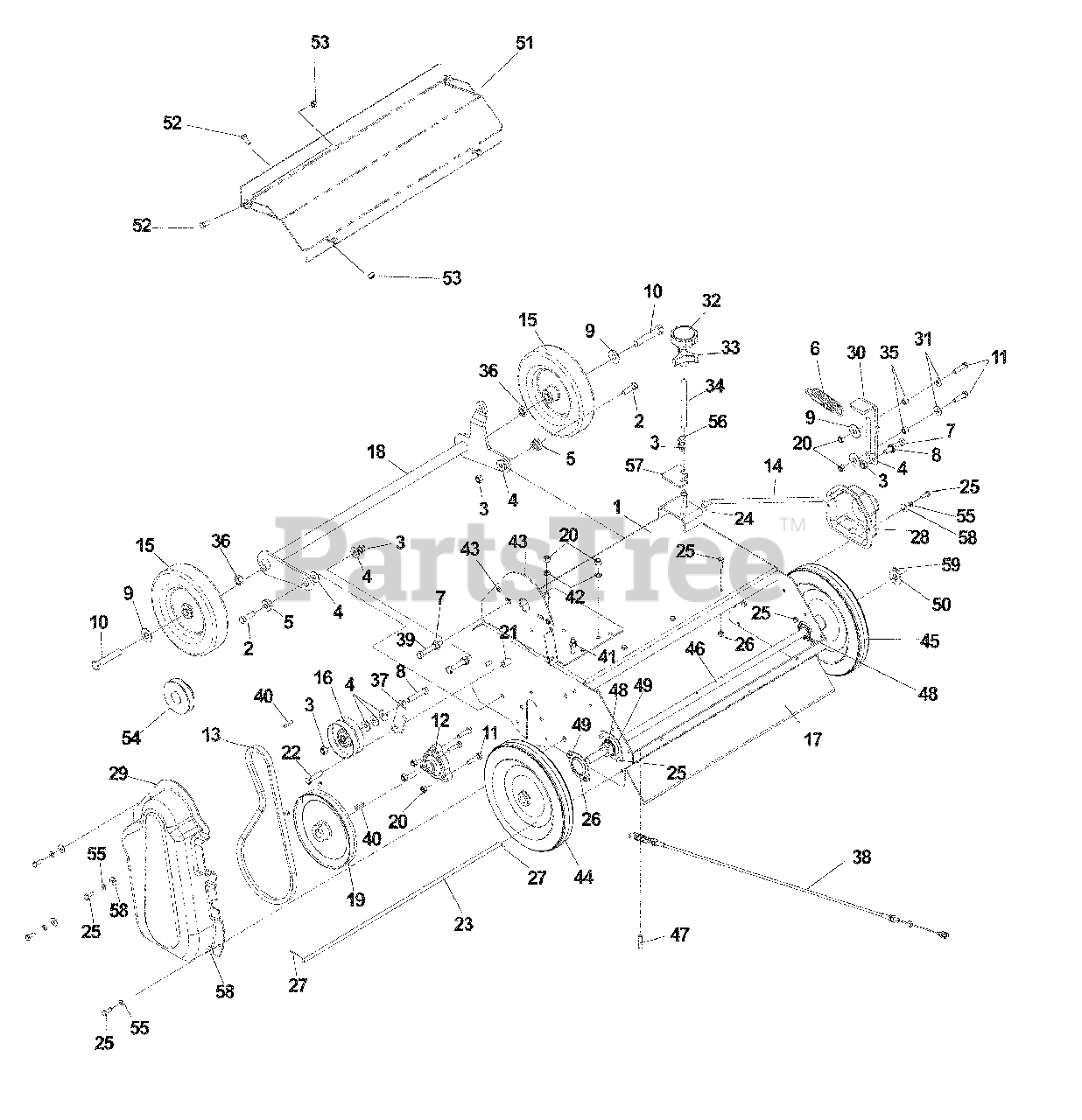

DT 22 BNR (968999367) - Husqvarna 22" Dethatcher (2005-11) Body Assembly Parts Diagram

22" Dethatcher

Body Assembly Parts Diagram

  • Title

1

Husqvarna 539106762

BODY
(Superseded to 539107354)

$

$

Not available

2

Husqvarna 539976941

HCS 3/8C X 1 1/4

$4.99

$

In Stock, Qty 6

0

3

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539990517

WASHER, 3/8, FLAT

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106847

BUSHING

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106850

SPRING

$

$

Not available

7

Husqvarna 539990613

NUT, 3/8C

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

9

Husqvarna 539990550

WASHER, 1/2, FLAT

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

12

Husqvarna 539100488

C.I. FLANGE BEARING

$74.99

$

In Stock, Qty 6

0

13

Husqvarna 539100439

BELT

$42.99

$

In Stock, only 1 left!

0

14

Husqvarna 539106805

LINKAGE

$

$

Not available

15

Husqvarna 540075051

WHEEL, 8 X 1 3/4

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539110311

IDLER PULLEY, FLAT

$13.99

$

In Stock, Qty 20+

0

17

Husqvarna 539106643

REAR FLAP

$

$

Not available

18

Husqvarna 539106759

FRONT AXLE

$

$

Not available

19

Husqvarna 539108541

PULLEY W/SET SCREW

$

$

Not available

20

Husqvarna 539990717

NUT, 5/16, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539100482

BUSHING

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539106672

FLAP ROD

$15.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990365

COTTER PIN
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990580

HCS 1/4C X 3/4

$3.99

$

In Stock, only 4 left!

0

26

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990365

COTTER PIN
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 539106754

SHAFT GUARD

$

$

Not available

29

Husqvarna 539108069

BELT GUARD
(Superseded to 539108070)

$145.99

$

In Stock, only 3 left!

0

30

Husqvarna 539106816

SLIDER

$54.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990692

WASHER, 5/16, FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 540000035

KNOB
(Superseded to 539000035)

$

$

Not available

33

Husqvarna 540030485

KNOB
(Superseded to 539030485)

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 540052761

ROD, THREADED
(Superseded to 539108588)

$

$

Not available

35

Husqvarna 539102827

SPACER, PULLEY

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 539990625

NUT, 1/2 HEX, JAM

$3.99

$

In Stock, Qty 15

0

37

Husqvarna 539108067

IDLER ARM, ORANGE
(Superseded to 522795001)

$74.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539106849

CABLE

$37.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

40

Husqvarna 540005226

KEY, 3/16 X 3/16 X 1
(Superseded to 539910061)

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

42

Husqvarna 539990187

LOCKWASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539106772

BACKING PLATE

$109.99

$

Usually ships in 3-10 days

0

44

Husqvarna 540000058

WHEEL, 10 X 1 3/4, DRILLED

$74.99

$

Usually ships in 3-10 days

0

45

Husqvarna 540053401

WHEEL, 10 X 1 3/4, W/BUSHINGS

$66.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539106663

AXLE, REAR

$

$

Not available

47

Husqvarna 540000364

ROLL PIN, 1/4 X 1 1/8
(Superseded to 540109273)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 540000319

BEARING, 5/8" W/COLLAR
(Superseded to 540009127)

$

$

Not available

49

Husqvarna 540000321

FLANGE, FOR BEARING 5/8"
(Superseded to 539000485)

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539000436

WASHER, 5/8, SAE
(Superseded to 539976982)

$4.99

$

In Stock, only 2 left!

0

51

Husqvarna 539106757

REAR COVER

$54.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

53

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539108543

PULLEY, ENGINE W/SET SCREW

$

$

Not available

55

Husqvarna 539990052

LOCKWASHER, 1/4

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539990563

SCREW, 3/8C X 1

$1.49

$

Usually ships in 3-10 days

0

57

Husqvarna 539108022

DEPTH SHIM

$11.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539990598

WASHER, 1/4, FLAT

$

$

Not available

59

Husqvarna 539990297

COTTER PIN, 1/8 X 1 ½

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539108147

KNURLED INSERT, 1/4-20

$3.99

$

Usually ships in 3-10 days

0
