DT 22 - Husqvarna 22" Dethatcher (2003-03) DELTA BLADE Parts Diagram

22" Dethatcher

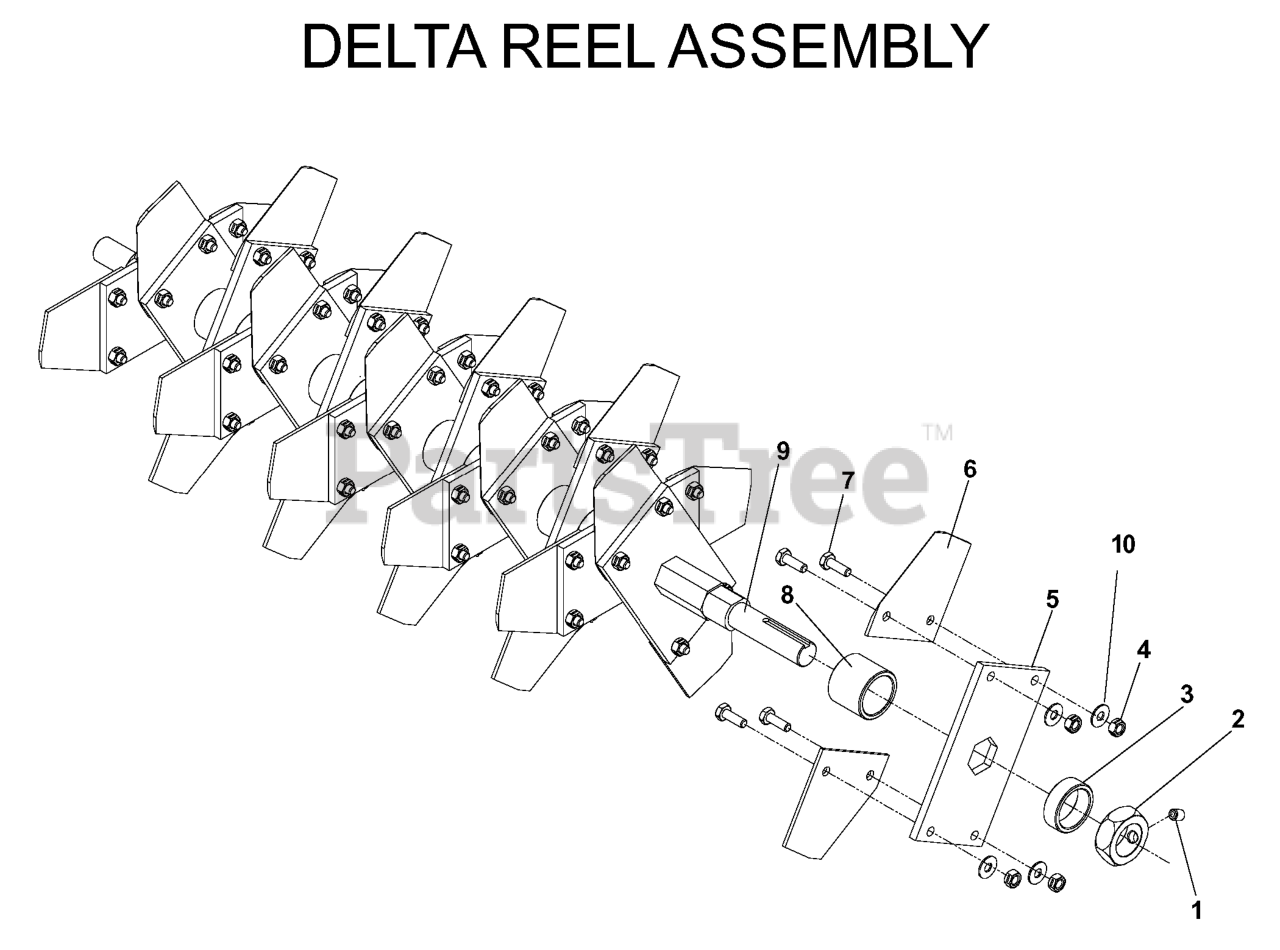

DELTA BLADE Parts Diagram

  • Title

6

Husqvarna 540005966

DELTA BLADE

$

$

Not available

8

Husqvarna 539106652

SPACER - LONG

$

$

Not available

10

Husqvarna 539000407

TH CABLE AR# 441L-632-10

$

$

Not available

539108117

Husqvarna 539108117

SCREW & NUT (60 EACH)

$

$

Not available

1

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$

$

Not available

539108116

Husqvarna 539108116

30 DELTA SET W/HARDWARE

$

$

Not available

3

Husqvarna 539106653

END SPACER

$

$

Not available

7

Husqvarna 539108056

HEX SCREW 1/4X.75

$

$

Not available

9

Husqvarna 539106650

SHAFT

$143.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539992761

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 539100530

JAM NUT W/SET SCREW

$

$

Not available

539107184

Husqvarna 539107184

22" DELTA REEL (COMPLETE)

$

$

Not available

5

Husqvarna 539106651

BLADE MOUNTING PLATE

$

$

Not available
