DT 22 - Husqvarna 22" Dethatcher (2004-01) FRAME Parts Diagram

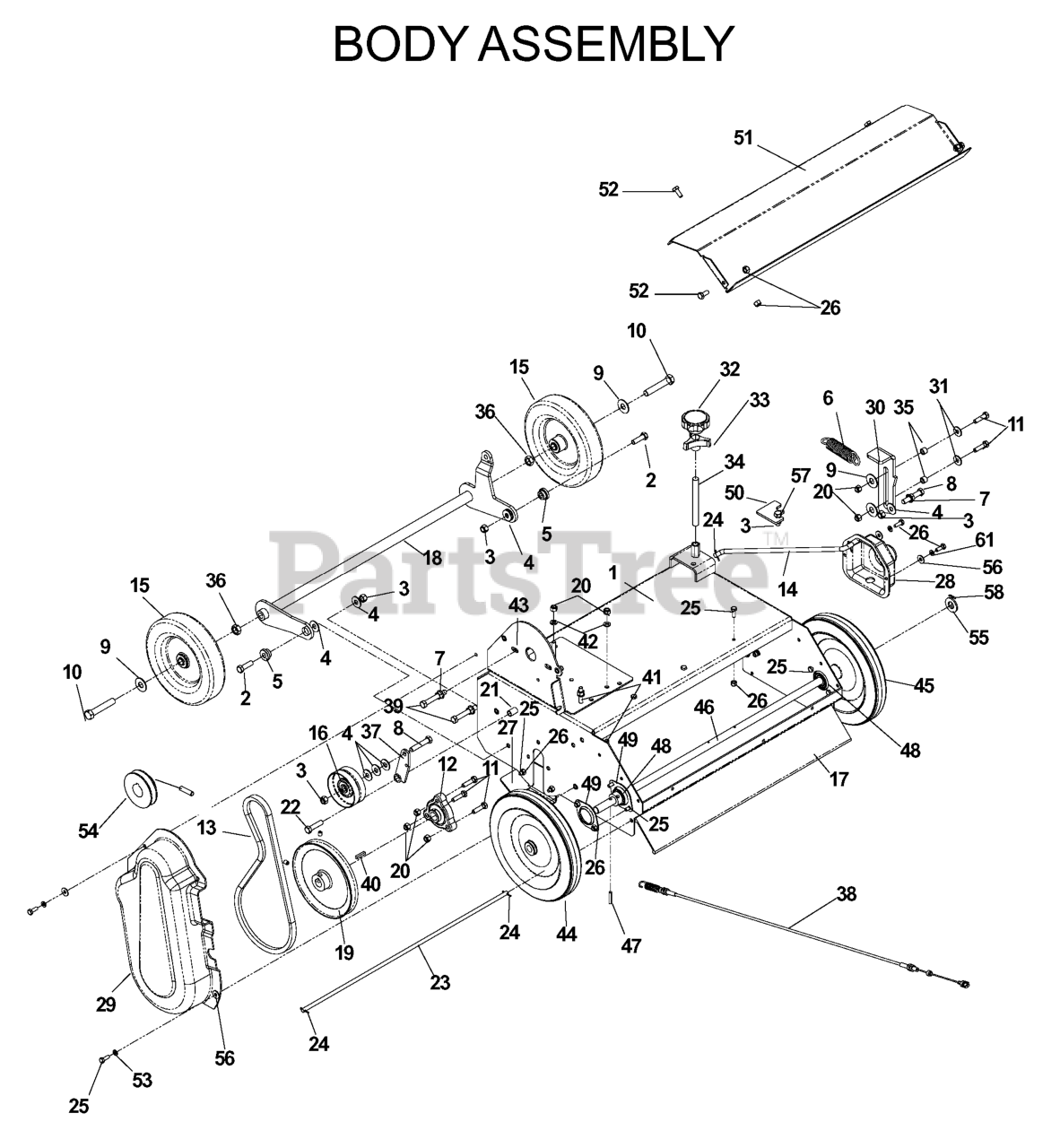

22" Dethatcher

FRAME Parts Diagram

  • Title

33

Husqvarna 539030485

KNOB

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

57

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539106805

LINKAGE

$

$

Not available

36

Husqvarna 539990625

NUT 1/2 HEX JAM

$3.99

$

In Stock, Qty 15

0

41

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

50

Husqvarna 539108022

DEPTH SHIM

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540075051

WHEEL 8 X 1 3/4 RAKE

$37.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

1

Husqvarna 539107354

BODY W/DECALS

$

$

Not available

32

Husqvarna 539000035

KNOB

$

$

Not available

10

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539106757

REAR COVER ORANGE

$54.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539108037

SKID PLATE

$36.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539000364

DNB BUSHING STEERING Y

$

$

Not available

20

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 540000058

WHEEL 10 X 1 3/4

$74.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539108067

IDLER ARM - ORANGE
(Superseded to 522795001)

$74.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539880613

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

52

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 539106850

SPRING

$

$

Not available

49

Husqvarna 539000485

FLANGE BEARING ZINC PLATED

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539052761

R/B 108588 STUD, THREADED
(Superseded to 539108588)

$

$

Not available

5

Husqvarna 539106847

BUSHING RAKE

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539106754

SHAFT GUARD

$

$

Not available

18

Husqvarna 539106759

FRONT AXLE

$

$

Not available

29

Husqvarna 539108070

BELT SHIELD POWER RAKE

$145.99

$

In Stock, only 3 left!

0

54

Husqvarna 539108543

ENGINE PULLEY W/SET SCW

$

$

Not available

23

Husqvarna 539106672

FLAP ROD

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539100482

BEARING, ONLITE RAKE/DT

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539100488

BEARING, FLANGED

$74.99

$

In Stock, Qty 6

0

46

Husqvarna 539106663

AXLE, REAR

$

$

Not available

9

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539106816

SLIDER

$54.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539106772

BACKING PLATE ORANGE

$109.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539000489

PULLEY, IDLER 3 1/4 OD PAINTED

$18.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102827

SPACER

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 539106849

CABLE POWER RAKE

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, Qty 6

0

13

Husqvarna 539100439

BELT, DRIVE RAKE/SLICER DFS

$42.99

$

In Stock, only 1 left!

0

19

Husqvarna 539108541

PULLEY W/SET SCREW

$

$

Not available

17

Husqvarna 539106643

REAR FLAP

$

$

Not available

3

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539005226

R/B 910061 KEY 3/16 SQ. X 1 LG
(Superseded to 539910061)

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 540000319

BEARING - 5/8" W/COLLAR
(Superseded to 540009127)

$

$

Not available

24

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

58

Husqvarna 539990297

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 540053401

WHEEL 10 X 1 3/4

$66.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539000436

WASHER
(Superseded to 539976982)

$4.99

$

In Stock, only 2 left!

0
