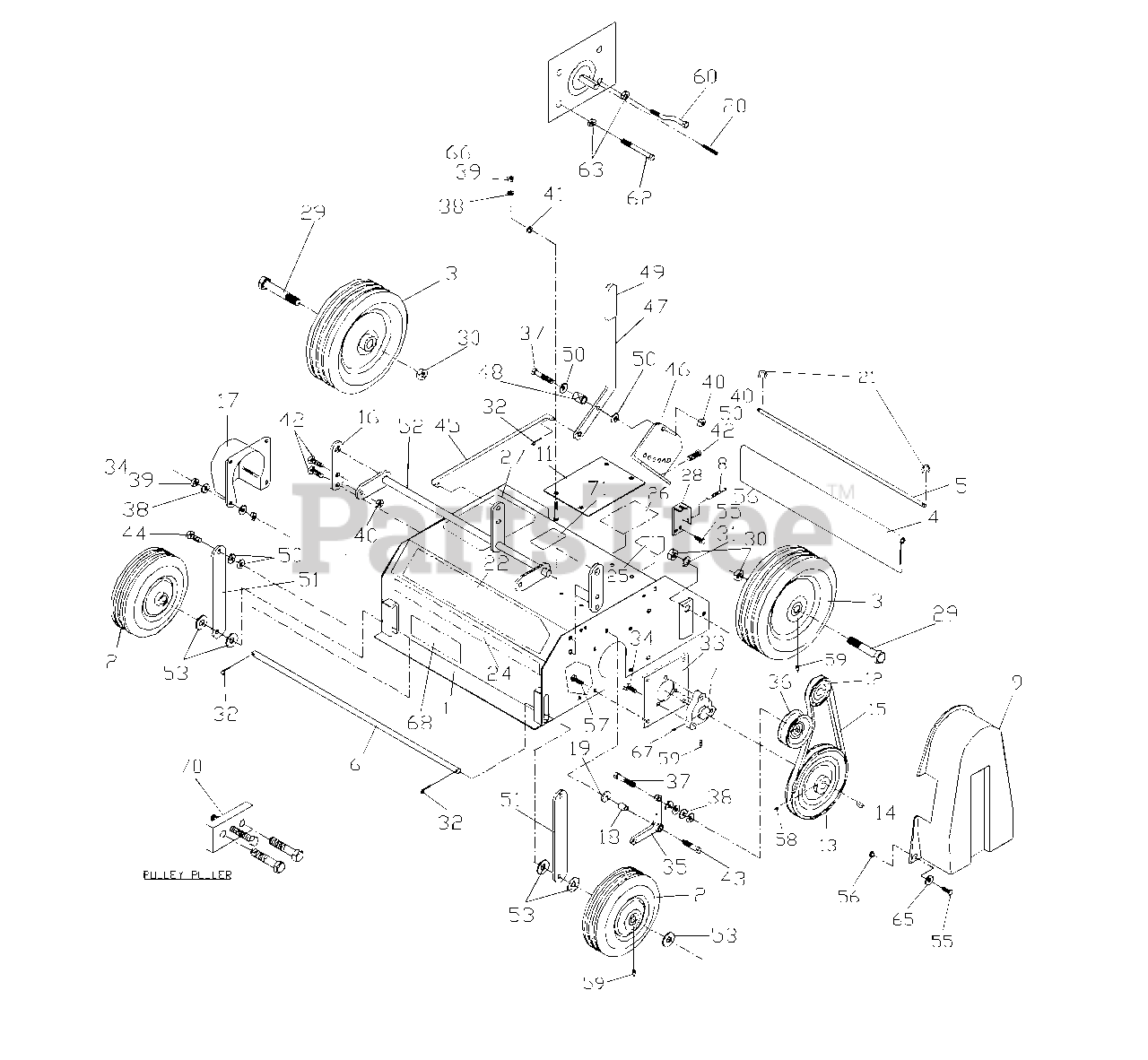

DTH 20A (968999192) - Husqvarna Dethatcher (2000-09) Body Assembly Parts Diagram

Dethatcher

Body Assembly Parts Diagram

  • Title

1

Husqvarna 539104550

DETHATCHER BODY W/DECALS

$

$

Not available

1

Husqvarna 539100873

SLICER BODY W/DECALS

$

$

Currently unavailable

2

Husqvarna 539104549

FRONT WHEEL

$

$

Not available

3

Husqvarna 539104548

REAR WHEEL

$32.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539100508

DEFLECTOR SHIELD

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539100512

DEFLECTOR ROD

$40.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539100509

FRONT AXLE

$33.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539100488

FLANGED BEARING

$74.99

$

In Stock, Qty 6

0

8

Husqvarna 539976564

EXTENSION SPRING

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976086

BELT GUARD

$61.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539100480

ENGINE PAD

$

$

Not available

12

Husqvarna 539100516

ENGINE DRIVE PULLEY

$36.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539100511

MAIN SHAFT PULLEY

$93.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539910211

#9 WOODRUFF KEY

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 539100439

DRIVE BELT

$42.99

$

In Stock, only 1 left!

0

16

Husqvarna 539100513

PIVOT ARM

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976524

SHAFT GUARD

$2.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539100482

OILITE BEARING

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539100514

SPACER

$

$

Not available

20

Husqvarna 539100471

3/16 X 1-3/4 SQUARE KEY

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539100470

5/16 RETAINING RING

$0.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104790

DECAL, HUSQVARNA

$

$

Not available

24

Husqvarna 539104793

DECAL, DT20

$

$

Currently unavailable

25

Husqvarna 539913010

DECAL, WARNING SM.

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 539100342

DECAL, WARNING LG.
(Superseded to 539113213)

$21.99

$

In Stock, only 1 left!

0

27

Husqvarna 539100506

DECAL, ADJUSTING

$

$

Not available

28

Husqvarna 539100504

CABLE BRACKET

$

$

Not available

29

Husqvarna 539100464

5/8 X 4 AXLE BOLT

$

$

Not available

30

Husqvarna 539100476

5/8-11 HEX JAM NUT

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990333

5/8 LOCK WASHER

$1.49

$

In Stock, only 2 left!

0

32

Husqvarna 539990365

1/8 X 3/4 COTTER PIN
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539100487

END PLATE

$23.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539100469

5/16-18 X 1-1/4 TAP BOLT
(Superseded to 539990627)

$4.99

$

In Stock, Qty 10

0

35

Husqvarna 539100485

BELL CRANK

$

$

Not available

36

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 9

0

37

Husqvarna 539990588

3/8-16 X 2 HCS

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990717

5/16-18 NYLOC NUT
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539976979

3/8-16 NYLOC NUT
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539990187

5/16 LOCK WASHER
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990563

3/8-16 X 1 HCS

$1.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539990655

3/8-16 X 1-1/2 HCS

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 539976941

3/8-16 X 1-1/2 HCS

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539100496

LINKAGE ARM

$

$

Not available

46

Husqvarna 539976121

ADJUSTMENT GAUGE

$

$

Not available

47

Husqvarna 539100498

ADJUSTING LEVER

$

$

Not available

48

Husqvarna 539976438

COMPRESSION SPRING

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539976526

LEVER GRIP

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539100501

LIFT ARM

$

$

Not available

52

Husqvarna 539100500

HEIGHT ADJUSTING ROD

$48.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990550

1/2 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539990072

1/4-20 X 5/8 HCS

$3.99

$

In Stock, only 3 left!

0

56

Husqvarna 539976978

1/4-20 NYLOC NUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990206

5/16-18 X 3/4 HCS
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

58

Husqvarna 539976956

5/16-18 X 3/8 SET SCREW

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539976998

1/4-28 STR. ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

60

Husqvarna 539100521

BELT GUIDE, OFFSET

$

$

Not available

62

Husqvarna 539100573

5/16-24 X 2-3/4 HCS

$

$

Not available

63

Husqvarna 539100561

5/16-24 HEX JAM NUT

$0.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539990598

1/4 FLAT WASHER

$

$

Not available

66

Husqvarna 539990669

5/16-18 X 1-3/4 HCS
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

67

Husqvarna 539977679

#10-32 X 1/4 SET SCREW

$

$

Not available

68

Husqvarna 539105071

DECAL, NASCAR

$

$

Not available

70

Husqvarna 539100907

PULLEY PULLER

Note: (OPT.)

$

$

Not available

71

Husqvarna 539101881

DECAL, WARNING
(Superseded to 596024201)

$2.49

$

In Stock, only 4 left!

0

72

Husqvarna 539103564

EXHAUST DEFLECTOR

Note: NOT SHOWN IN PARTS ILLUSTRATION; USED ON HONDA ENGINE ONLY

$

$

Currently unavailable

73

Husqvarna 539103563

SPARK ARRESTOR

Note: NOT SHOWN IN PARTS ILLUSTRATION; USED ON HONDA ENGINE ONLY

$18.99

$

Usually ships in 3-10 days

0

74

Husqvarna 539103565

SCREW

Note: NOT SHOWN IN PARTS ILLUSTRATION; USED ON HONDA ENGINE ONLY

$

$

Currently unavailable

75

Husqvarna 539105298

MUFFLER EXTENSION

Note: (FOR BRIGGS INTEK ENGINE ONLY.); NOT SHOWN IN PARTS ILLUSTRATION

$

$

Currently unavailable
