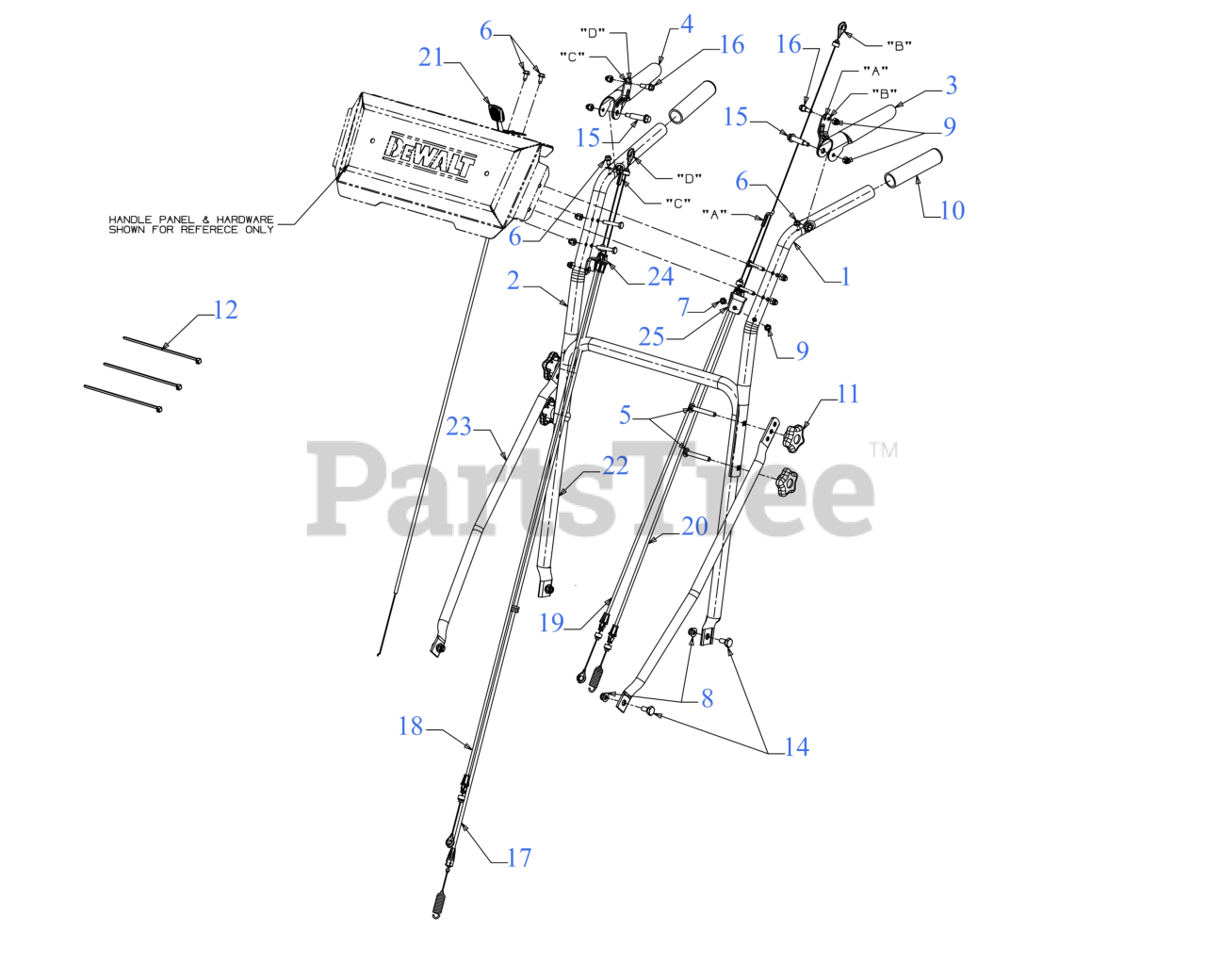

DW33 (DXGMW33382R) (12AE76M8038) - DeWALT Walk-Behind Mower (2021) Handle Parts Diagram

Walk-Behind Mower

Handle Parts Diagram

  • Title

1

MTD 649-05655

HANDLE ASSEMBLY (UPPER) (LH)

Note: (Choose color when ordering)

$51.99

$

Usually ships in 3-6 days

0

2

MTD 649-05656

HANDLE ASSEMBLY (UPPER) (RH)

Note: (Choose color when ordering)

$51.99

$

Usually ships in 3-6 days

0

3

MTD 687-02418C

LEVER ASSEMBLY (LH)

Note: (Choose color when ordering)

$9.99

$

Usually ships in 3-6 days

0

4

MTD 687-02425C

LEVER ASSEMBLY (RH)

Note: (Choose color when ordering)

$9.99

$

Usually ships in 3-6 days

0

5

MTD 710-0572

BOLT 5/16-18 x 2.50 GR1

$4.49

$

In Stock, only 4 left!

0

6

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.49

$

In Stock, Qty 13

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0442

HEX ACORN NUT

$6.99

$

In Stock, Qty 5

0

10

MTD 720-0274

GRIP

$11.99

$

In Stock, Qty 6

0

11

MTD 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

12

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 4 left!

0

14

MTD 938-0140

SHOULDER SCREW .437 DIA x .180
(Superseded to 738-0140)

$

$

Not available

15

MTD 738-05041A

SHOULDER BOLT .375X1.285:1/4-20

$6.49

$

Usually ships in 3-6 days

0

16

MTD 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.49

$

Usually ships in 3-6 days

0

17

MTD 946-05073

BLADE CONTROL CABLE

$39.99

$

In Stock, Qty 19

0

18

MTD 946-05076A

TRANSMISSION BRAKE CABLE (RH)

$36.99

$

In Stock, Qty 17

0

19

MTD 946-05077A

TRANSMISSION BRAKE CABLE (LH)

$36.99

$

In Stock, Qty 20+

0

20

MTD 946-05149

WHEEL CLUTCH CABLE

$55.99

$

In Stock, Qty 9

0

21

MTD 946-05354

THROTTLE CABLE

$40.99

$

Usually ships in 3-6 days

0

22

MTD 749-09304

HANDLE (LOWER)

Note: (Choose color when ordering)

$44.99

$

Usually ships in 3-6 days

0

23

MTD 749-09316

HANDLE BRACE TUBE

Note: (Choose color when ordering)

$32.99

$

Usually ships in 3-6 days

0

24

MTD 787-01490A-0637

CABLE BRACKET MOUNTING (RH)

$10.99

$

Usually ships in 3-6 days

0

25

MTD 787-01491A-0637

CABLE BRACKET MOUNTING (LH)

$19.99

$

Usually ships in 3-6 days

0
