DX 152 (966664201) - Dixon 52" Zero-Turn Mower (2010-10) MOWER DECK / CUTTING DECK Parts Diagram

52" Zero-Turn Mower

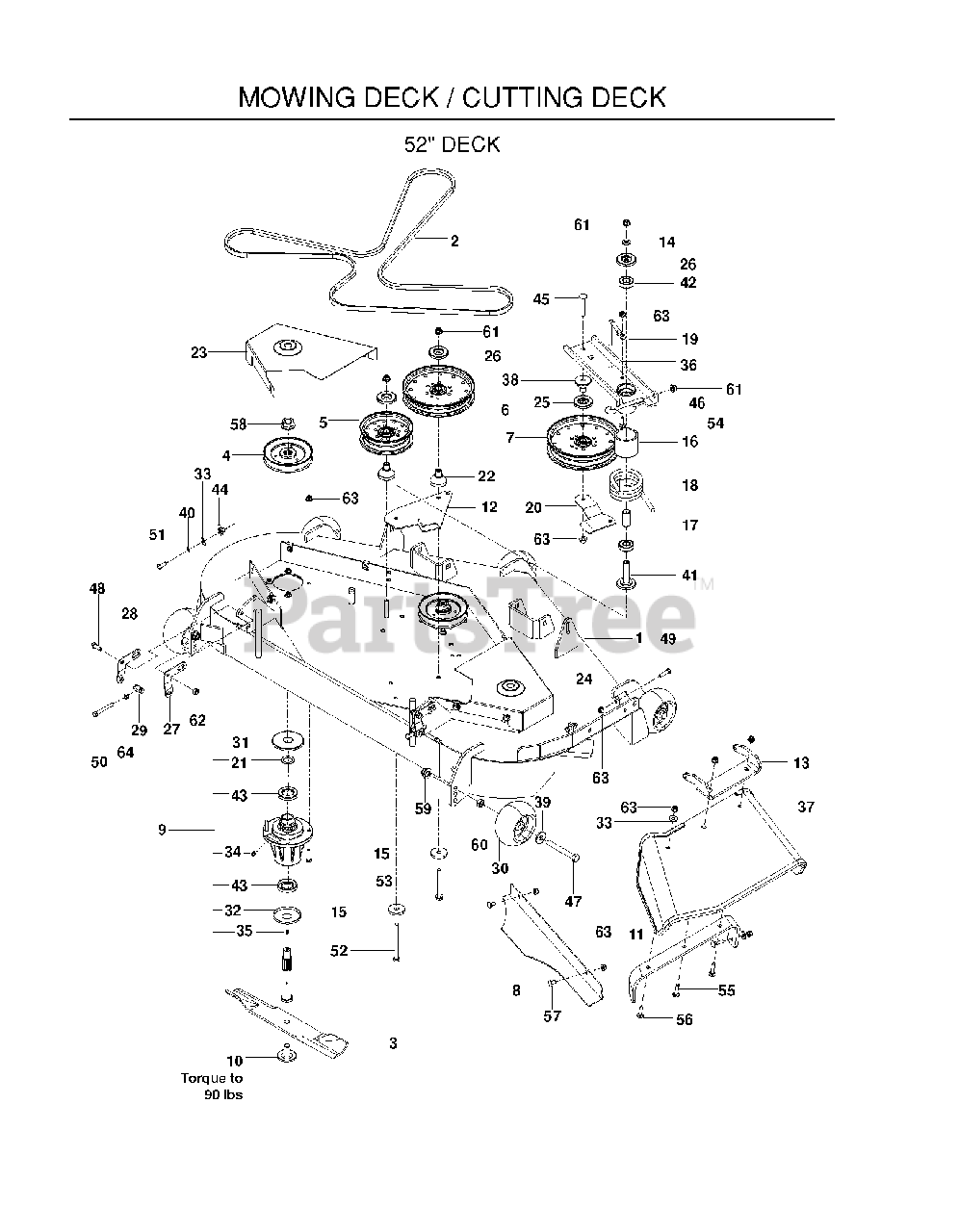

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 576915703

No Description Available

Note: w / SAFETY DECALS

$1821.99

$

Usually ships in 3-10 days

0

2

Dixon 577029302

No Description Available

$133.99

$

Usually ships in 3-10 days

0

3

Dixon 539105712

No Description Available

$31.99

$

Usually ships in 3-10 days

0

4

Dixon 539112124

PULLEY 52

$56.99

$

Usually ships in 3-10 days

0

5

Dixon 539103257

IDLER PULLEY

$56.99

$

In Stock, only 3 left!

0

6

Dixon 525598201

PULLEY - 7" NARROW

$

$

Not available

7

Dixon 510015101

PULLEY - IDLER 7"

$

$

Not available

8

Dixon 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$

$

Not available

9

Dixon 539131383

OBSOLETE - HOUSING ASM, 52/61
(Superseded to 966956101)

$159.99

$

Usually ships in 3-10 days

0

10

Dixon 539119007

BLADE BOLT/WASHER

$13.99

$

In Stock, Qty 10

0

11

Dixon 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$28.99

$

Usually ships in 3-10 days

0

12

Dixon 576388702

No Description Available

$

$

Not available

13

Dixon 539130917

PIVOT BRACKET - CHUTE

$227.99

$

Usually ships in 3-10 days

0

14

Dixon 522023401

WASHER, 3/8 THICK

$3.49

$

In Stock, Qty 20+

0

15

Dixon 539106504

SPINDLE WASHER

$

$

Not available

16

Dixon 525465601

SPACER, IDLER PIVOT

$11.99

$

In Stock, only 2 left!

0

17

Dixon 510264201

SPACER, IDLER BEARINGS

$9.49

$

Usually ships in 3-10 days

0

18

Dixon 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

19

Dixon 574262201

BELT KEEPER

$

$

Not available

20

Dixon 574262102

BELT GUIDE, BLK

$43.99

$

Usually ships in 3-10 days

0

21

Dixon 539916561

MACHINE BUSHING

$

$

Not available

22

Dixon 577073401

No Description Available

$20.99

$

In Stock, only 2 left!

0

23

Dixon 521969502

SHIELD, BELT, 52 LT, BLUE

Note: LT

$

$

Not available

24

Dixon 521969402

SHIELD, BELT, 52 RT, BLUE

Note: RT

$

$

Not available

25

Dixon 510262201

SHIELD, DUST

$

$

Not available

26

Dixon 510254501

DUST SHIELD

$

$

Not available

27

Dixon 539131858

PITCH, ADJUST, LT

Note: LT

$43.99

$

In Stock, only 2 left!

0

28

Dixon 539131857

PITCH, ADJUST, RT

Note: RT

$39.99

$

Usually ships in 3-10 days

0

29

Dixon 539131859

TRUNION, PITCH

$

$

Not available

30

Dixon 539107610

OBSOLETE - GAUGE WHEEL
(Superseded to 532133957)

$14.99

$

In Stock, Qty 17

0

31

Dixon 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 7

0

32

Dixon 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 5

0

33

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

34

Dixon 539977326

PLUG-VENTED

$11.99

$

In Stock, only 1 left!

0

35

Dixon 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

36

Dixon 525464402

No Description Available

$193.99

$

Usually ships in 3-10 days

0

37

Dixon 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$102.99

$

In Stock, only 2 left!

0

38

Dixon 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, only 2 left!

0

39

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

40

Dixon 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

41

Dixon 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, Qty 8

0

42

Dixon 539112050

BEARING, BALL

$6.99

$

In Stock, Qty 15

0

43

Dixon 539108754

SHAFT SEAL

$7.99

$

In Stock, only 4 left!

0

44

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, only 2 left!

0

45

Dixon 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

46

Dixon 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

47

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 8

0

48

Dixon 539990563

HCS 3/8C X 1

$

$

Not available

49

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 2 left!

0

50

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

51

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

52

Dixon 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$

$

Not available

53

Dixon 577117701

No Description Available
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

54

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

55

Dixon 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

56

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$

$

Not available

57

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

58

Dixon 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 1 left!

0

59

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 15

0

60

Dixon 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

61

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

62

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

63

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 11

0

64

Dixon 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0
