DX 260 (966651401) - Dixon 60" Zero-Turn Mower (2012-04) STEERING Parts Diagram

60" Zero-Turn Mower

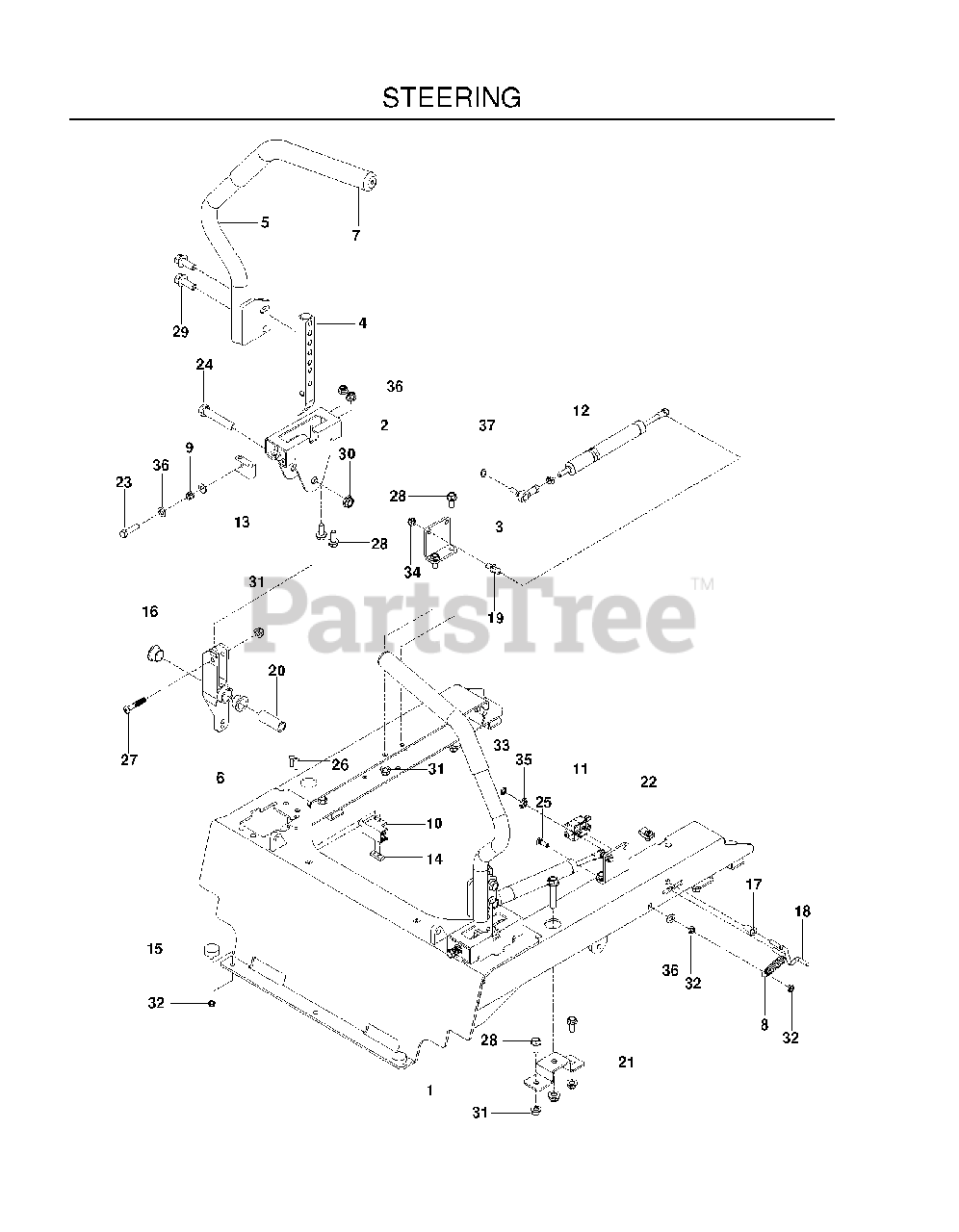

STEERING Parts Diagram

  • Title

1

Dixon 577327703

No Description Available

$242.99

$

Usually ships in 3-10 days

0

2

Dixon 577251701

No Description Available
(Superseded to 586737202)

$26.99

$

In Stock, only 2 left!

0

3

Dixon 577265801

No Description Available

$

$

Not available

4

Dixon 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

5

Dixon 577042403

No Description Available

$109.99

$

Usually ships in 3-10 days

0

6

Dixon 577042303

No Description Available

$109.99

$

Usually ships in 3-10 days

0

7

Dixon 576140302

No Description Available

$78.99

$

Usually ships in 3-10 days

0

8

Dixon 539130894

GRIP - DRIVE LEVER

$9.99

$

In Stock, Qty 14

0

9

Dixon 539020035

SPRING, EXTENSION
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

10

Dixon 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

11

Dixon 532109553

No Description Available
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

12

Dixon 539113792

SWITCH, BRAKE 3P

$12.99

$

In Stock, Qty 18

0

13

Dixon 516020301

ASSEMBLY, DAMPENER
(Superseded to 597084601)

$113.99

$

Usually ships in 3-10 days

0

14

Dixon 577251801

No Description Available

$

$

Not available

15

Dixon 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

16

Dixon 575811501

BUMPER, 1/4-20 STUD, 1/4

$4.99

$

Usually ships in 3-10 days

0

17

Dixon 539131518

BEARING, FLANGE

$10.99

$

In Stock, Qty 5

0

18

Dixon 511594901

BUSHING, 1/4 FLANGE

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 511595001

LINK, SWITCH

$7.49

$

Usually ships in 3-10 days

0

20

Dixon 539110607

10MM BALL STUD

$4.99

$

Usually ships in 3-10 days

0

21

Dixon 577252401

No Description Available
(Superseded to 584927201)

$4.99

$

In Stock, Qty 11

0

22

Dixon 522849702

MOUNT, MID-SECTION, BLK

$24.99

$

Usually ships in 3-10 days

0

23

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

24

Dixon 539100469

OBSOLETE - BOLT, TAP 5/16-18
(Superseded to 539990627)

$4.99

$

In Stock, Qty 10

0

25

Dixon 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

26

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 12

0

28

Dixon 576850402

No Description Available

$4.99

$

In Stock, Qty 5

0

29

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

30

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

31

Dixon 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, Qty 5

0

32

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

33

Dixon 539108120

JAM NUT 1/4C

$3.99

$

In Stock, only 2 left!

0

34

Dixon 539102234

NUT PUSH

$3.99

$

Usually ships in 3-10 days

0

35

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

36

Dixon 539913847

BOLT RETAINER 3/8

$4.99

$

Usually ships in 3-10 days

0

37

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
