DX 260 D (966651601) - Dixon 60" Zero-Turn Mower (2012-02) SEAT Parts Diagram

60" Zero-Turn Mower

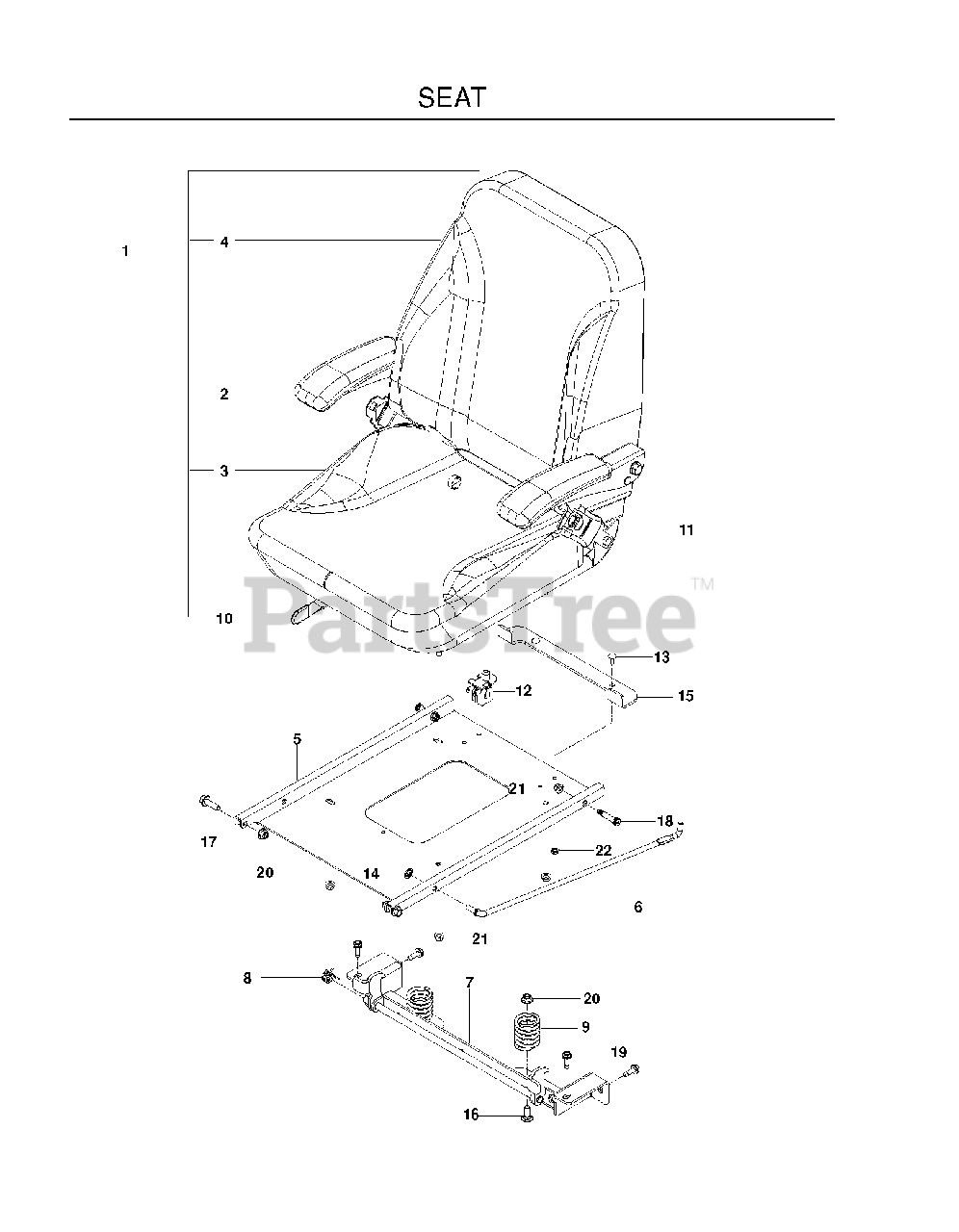

SEAT Parts Diagram

  • Title

1

Dixon 574030801

SEAT ASSY

$971.99

$

Usually ships in 3-10 days

0

2

Dixon 574284606

ARMREST, RT

Note: RT

$133.99

$

Usually ships in 3-10 days

0

Dixon 574284605

ARMREST, LT

Note: LT

$133.99

$

Usually ships in 3-10 days

0

3

Dixon 574030803

CUSHION COVER

$157.99

$

Usually ships in 3-10 days

0

4

Dixon 574030804

BACK COVER

$169.99

$

Usually ships in 3-10 days

0

5

Dixon 510039302

PAN, SEAT, BLACK

$145.99

$

In Stock, only 1 left!

0

6

Dixon 510064101

ROD, SEAT

$10.99

$

Usually ships in 3-10 days

0

7

Dixon 574182202

LATCH, SEAT, BLK

$267.99

$

Usually ships in 3-10 days

0

8

Dixon 520283101

SPRING, TORSION

$3.99

$

Usually ships in 3-10 days

0

9

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

10

Dixon 574030802

TRACK KIT

$157.99

$

Usually ships in 3-10 days

0

11

Dixon 539130359

OBSOLETE - N/A
(Superseded to 596322701)

$133.99

$

In Stock, only 1 left!

0

12

Dixon 539119741

SEAT SWITCH
(Superseded to 532421062)

$10.99

$

In Stock, Qty 17

0

13

Dixon 575321702

No Description Available

$18.99

$

Usually ships in 3-10 days

0

14

Dixon 539913847

BOLT RETAINER 3/8

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539111786

RHSSNB, 1/4-20X5/8

$1.99

$

Usually ships in 3-10 days

0

16

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

18

Dixon 515990601

BOLT, SHOULDER 3/8 X 1.25

$3.99

$

In Stock, only 2 left!

0

19

Dixon 539113226

BLT 5/16-18 X 1 THRD FORM ZD
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

21

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

22

Dixon 539108120

JAM NUT 1/4C

$3.99

$

In Stock, only 2 left!

0
