DXGHW48P (55RI6HN6038) - DeWALT Walk-Behind Mower (2021) PTO Clutch Parts Diagram

Walk-Behind Mower

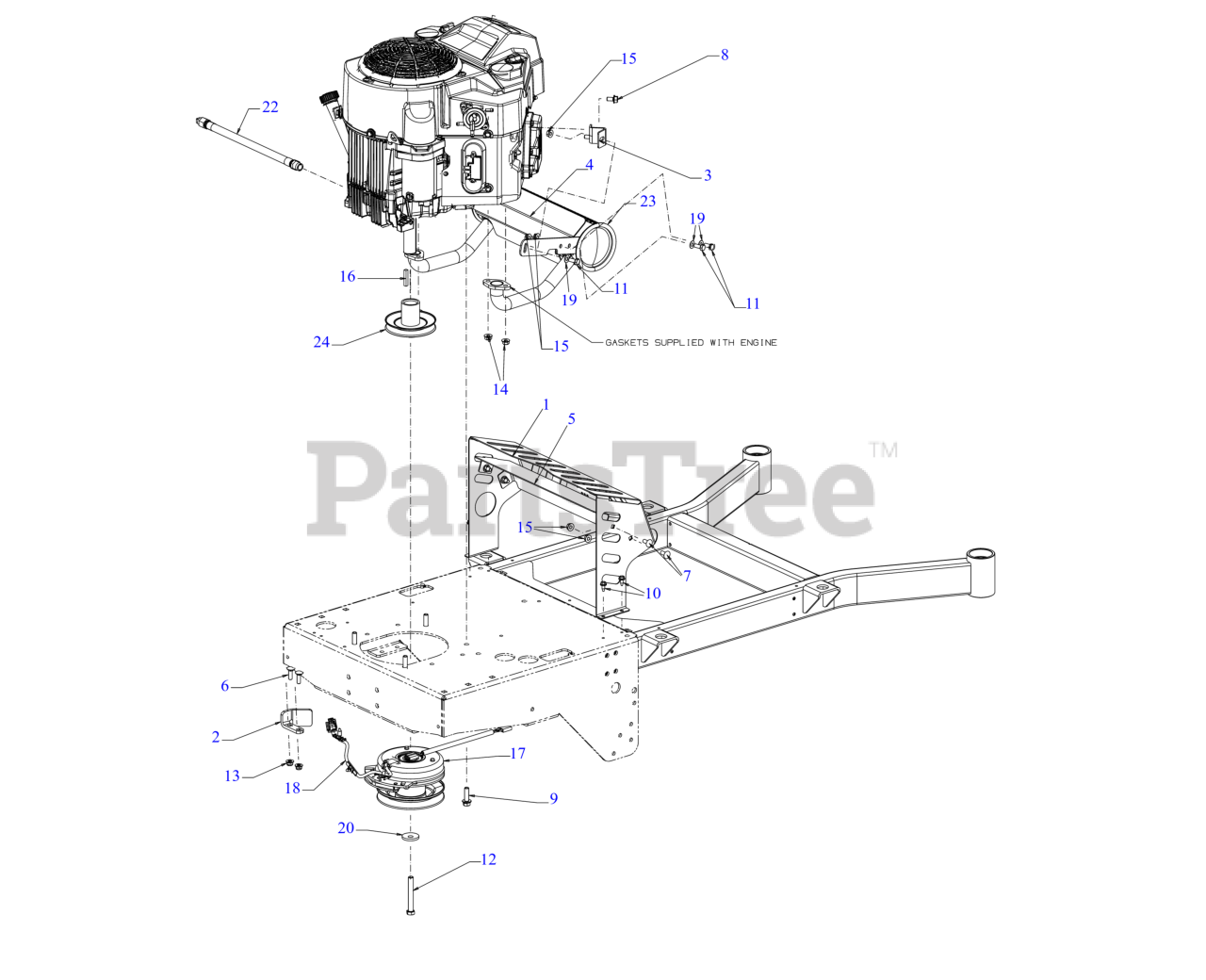

PTO Clutch Parts Diagram

  • Title

1

MTD 680-02714

MUFFLER COVER

$154.99

$

Usually ships in 3-6 days

0

2

MTD 703-11287

PTO CLUTCH RETAINER BRACKET

Note: (Choose color when ordering)

$24.99

$

Usually ships in 3-6 days

0

3

MTD 703E11304

MUFFLER MOUNTING BRACKET

$23.99

$

Usually ships in 3-6 days

0

4

MTD 703-11969B

MUFFLER SHIELD

$60.99

$

Usually ships in 3-6 days

0

5

MTD 703-21324

INNER MUFFLER SHIELD
(Superseded to 703-21324-4021)

Note: (Choose color when ordering)

$33.99

$

Usually ships in 3-6 days

0

6

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 11

0

7

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

0

9

MTD 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

Usually ships in 3-6 days

0

10

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3157A

SCREW 7/16-20 x 3.25 GR5

$11.99

$

In Stock, Qty 20+

0

13

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

16

MTD 714-0118

SQUARE KEY 1/4 x 1.50

$7.49

$

In Stock, only 2 left!

0

17

MTD 917-05438

PTO CLUTCH
(Superseded to 917-05438A)

$608.99

$

Usually ships in 3-6 days

0

18

MTD 725-06173

CLUTCH HARNESS 11"

$32.99

$

In Stock, Qty 20+

0

19

MTD 736-0278

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

20

MTD 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$10.99

$

Usually ships in 3-6 days

0

22

MTD 751-10291C

OIL DRAIN HOSE
(Superseded to 751-10291D)

$56.99

$

In Stock, Qty 6

0

23

MTD 951-15704A

MUFFLER (ROUND)

$223.99

$

Usually ships in 3-6 days

0

24

MTD 756-05317

ENGINE PULLEY (1.125")

$91.99

$

Usually ships in 3-6 days

0
