DXGST227SS (41AD27SC939) - DeWALT String Trimmer Engine Assembly Parts Diagram

String Trimmer

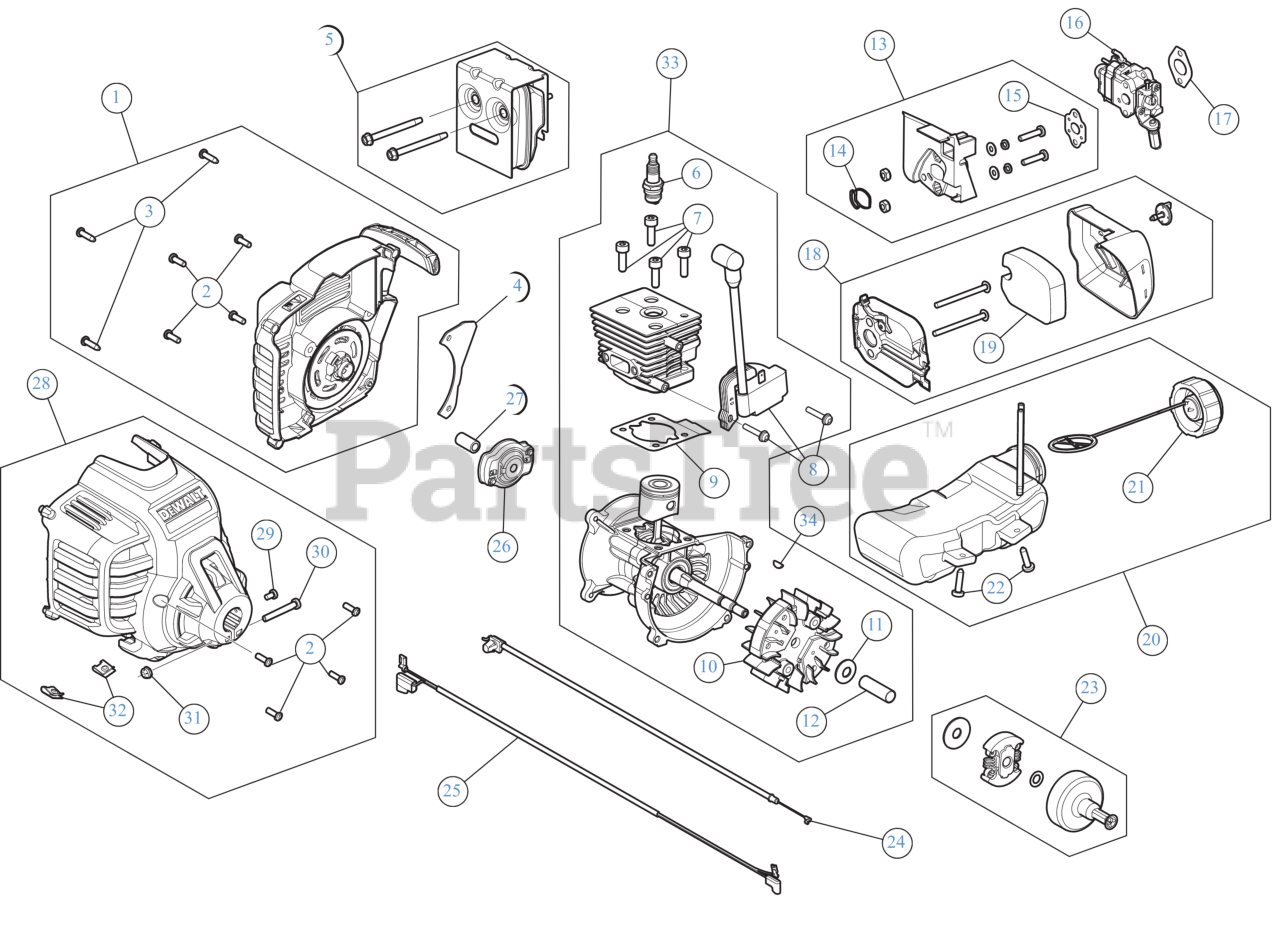

Engine Assembly Parts Diagram

  • Title

1

MTD 753-10928

STARTER HOUSING 27CC

Note: (Incl. 2 & 3)

$19.99

$

In Stock, only 3 left!

0

2

MTD 791-182195

SCREW #

$6.99

$

In Stock, Qty 15

0

3

MTD 710-04194

SCREW 8-16 x 3/4

$3.99

$

In Stock, Qty 20+

0

4

MTD 731-21835

STARTER GUARD

$2.99

$

Usually ships in 3-6 days

0

5

MTD 753-08745

MUFFLER ASSEMBLY

$24.99

$

In Stock, only 4 left!

0

6

MTD 753-06847

SPARK PLUG

$2.99

$

In Stock, Qty 20+

0

7

MTD 710-04715

SCREW 1/4 x 20 x .8125

$6.49

$

Usually ships in 3-6 days

0

8

MTD 753-10924

MODULE 27CC

$28.99

$

Usually ships in 3-6 days

0

9

MTD 753-06827

GASKET CYL

$3.49

$

In Stock, only 4 left!

0

10

MTD 753-06246

FLYWHEEL ASSEMBLY 27CC

$20.99

$

In Stock, only 1 left!

0

11

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 7

0

12

MTD 753-06248

SPACER

$3.49

$

Usually ships in 3-6 days

0

13

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 14 & 15)

$7.49

$

In Stock, Qty 20+

0

14

MTD 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

15

MTD 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0

16

MTD 751-20529

CARBURETOR 27cc

$47.99

$

Usually ships in 3-6 days

0

17

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

18

MTD 753-10925

AIR CLEANER

Note: (Incl. 19)

$8.99

$

In Stock, only 2 left!

0

19

MTD 753-06954

AIR FILTER

$2.99

$

In Stock, Qty 20+

0

20

MTD 753-10926

FUEL TANK

Note: (Incl. 21 & 22)

$18.99

$

Usually ships in 3-6 days

0

21

MTD 753-06857

FUEL CAP

$7.49

$

In Stock, Qty 16

0

22

MTD 791-181930

SCREW:10-6 x .75

$6.49

$

In Stock, Qty 9

0

23

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$23.99

$

In Stock, Qty 20+

0

24

MTD 746-06691

THROTTLE CABLE

$3.49

$

Usually ships in 3-6 days

0

25

MTD 753-05877

LEAD WIRES

$9.49

$

Usually ships in 3-6 days

0

26

MTD 753-06091

PAWL ASSEMBLY AC5

$8.49

$

In Stock, Qty 20+

0

27

MTD 753-06104

ELECTRIC START ADP

$3.99

$

In Stock, Qty 14

0

28

MTD 753-10927

CLUTCH COVER

Note: (Incl. 2, 29 - 32)

$16.99

$

Usually ships in 3-6 days

0

29

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

30

MTD 9689A

SCREW

$10.99

$

Usually ships in 3-6 days

0

31

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

32

MTD 791-182366

NUT, TINNERMAN U-T

$5.49

$

In Stock, only 2 left!

0

33

MTD 753-08666

SHORT BLOCK 27CC

Note: (Incl. 6 - 12)

$82.99

$

Usually ships in 3-6 days

0

34

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

Usually ships in 3-6 days

0
