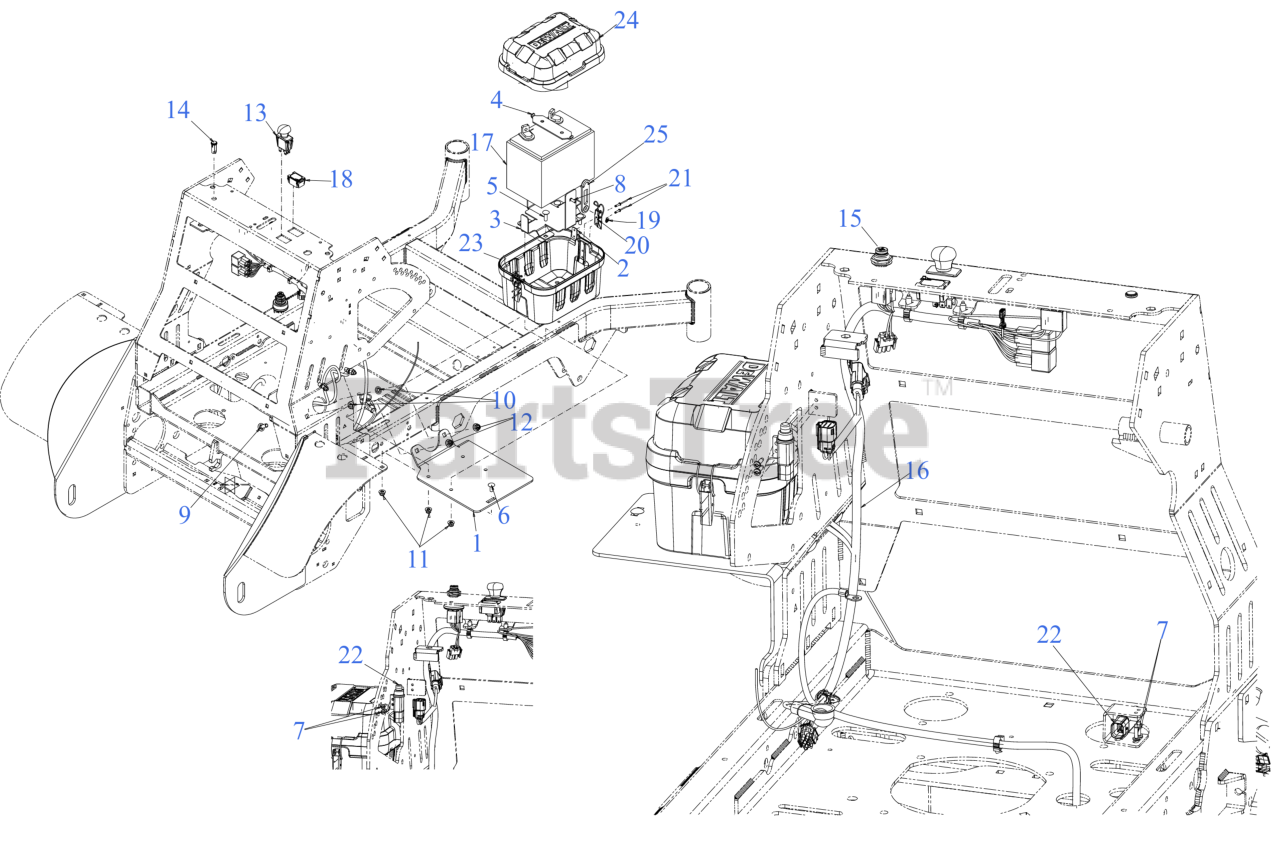

DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2021) Electrical Parts Diagram

Stand-On Mower

Electrical Parts Diagram

  • Title

1

MTD 703-26744

BATTERY MOUNT BRACKET

$68.99

$

Usually ships in 3-6 days

0

2

MTD 703-26822

BACK CLIP PLATE
(Superseded to 703E26822)

$2.99

$

Usually ships in 3-6 days

0

3

MTD 703-26843

BATTERY MOUNT
(Superseded to 703E26843)

$72.99

$

Usually ships in 3-6 days

0

4

MTD 703-26844

BATTERY STRAP
(Superseded to 703E26844)

$11.99

$

Usually ships in 3-6 days

0

5

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.99

$

Usually ships in 3-6 days

0

8

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

9

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

13

MTD 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$74.99

$

In Stock, Qty 20+

0

14

MTD 725-04660

INDICATOR LIGHT-RED

$33.99

$

Usually ships in 3-6 days

0

15

MTD 725P13545

KEY SWITCH

$90.99

$

In Stock, only 2 left!

0

16

MTD 725-17123

HARNESS (EFI KAW)
(Superseded to 725P17123)

$377.99

$

Usually ships in 3-6 days

0

17

MTD 725P17130

BATTERY (230 CCA AGM U1-280)

$124.99

$

In Stock, only 3 left!

0

18

MTD 725-17252

HOUR METER
(Superseded to 725P17252)

$108.99

$

Usually ships in 3-6 days

0

19

MTD 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 20+

0

20

MTD 726-05552

LATCH

$36.99

$

Usually ships in 3-6 days

0

21

MTD 728-0175

RIVOT

$4.99

$

In Stock, Qty 20+

0

22

MTD 929-05136

SEALED PLUNGER SWITCH

$45.99

$

Usually ships in 3-6 days

0

23

MTD 731-26210

BATTERY BOX (LOWER)
(Superseded to 731P26210)

$28.99

$

Usually ships in 3-6 days

0

24

MTD 731-26211

BATTERY BOX (UPPER)
(Superseded to 731P26211)

$30.99

$

In Stock, only 2 left!

0

25

MTD 735-05226

COVER STRAP 2.50 LONG

$6.99

$

Usually ships in 3-6 days

0
