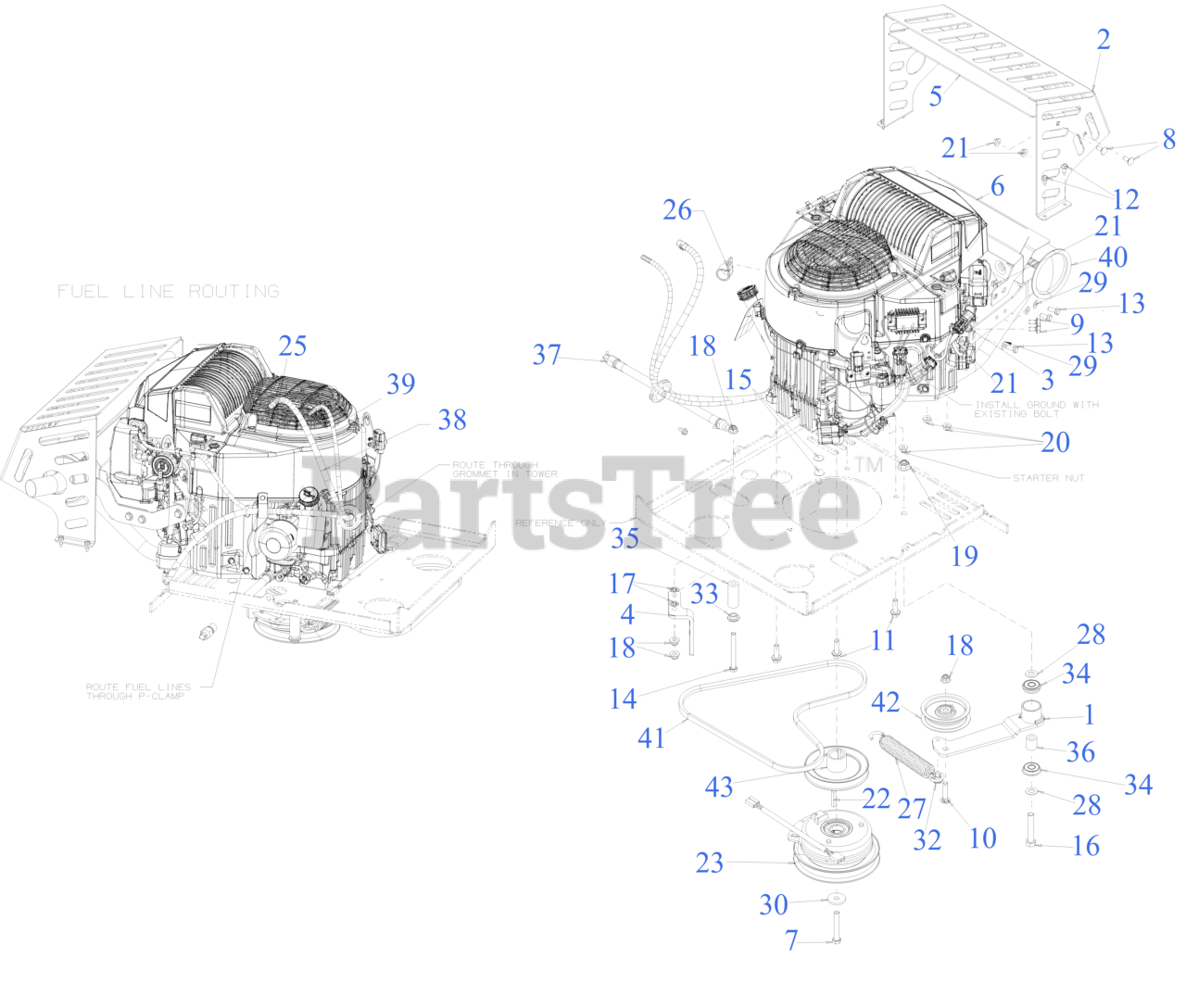

DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2021) Engine Accessories Parts Diagram

Stand-On Mower

Engine Accessories Parts Diagram

  • Title

1

MTD 680E00714

IDLER BRACKET ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

2

MTD 680-02654

MUFFLER SHIELD

$190.99

$

Usually ships in 3-6 days

0

3

MTD 703E11304

MUFFLER MOUNTING BRACKET

$23.99

$

Usually ships in 3-6 days

0

4

MTD 703E12821A

CLUTCH BRACKET

$66.99

$

Usually ships in 3-6 days

0

5

MTD 703-26823

MUFFLER SHEILD BRACKET (INNER)

$51.99

$

Usually ships in 3-6 days

0

6

MTD 703-26861

MUFFLER SHIELD

$

$

Not available

7

MTD 710-04377

SCREW 7/16-20:2.75 GR5

$11.99

$

Usually ships in 3-6 days

0

8

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

0

10

MTD 710-05376

CARRIAGE BOLT 3/8-16 x 1.75 GR5

$4.99

$

In Stock, only 2 left!

0

11

MTD 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

In Stock, only 2 left!

0

12

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.99

$

In Stock, Qty 20+

0

15

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-3230

SCREW 1/2-13 x 2.75 GR5

$12.99

$

Usually ships in 3-6 days

0

17

MTD 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, Qty 18

0

21

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 20+

0

22

MTD 714-0118

SQUARE KEY 1/4 x 1.50

$7.49

$

In Stock, only 3 left!

0

23

MTD 917-05184

ELECTRIC PTO CLUTCH

$529.99

$

Usually ships in 3-6 days

0

24

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

25

MTD 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

26

MTD 726-0475

HOSE CLAMP 1.0"

$14.99

$

Usually ships in 3-6 days

0

27

MTD 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$36.99

$

In Stock, Qty 20+

0

28

MTD 736-0272

FLAT WASHER .510 x .995

$5.49

$

In Stock, Qty 20+

0

29

MTD 736-0278

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

30

MTD 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$10.99

$

In Stock, Qty 11

0

32

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-04503

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

34

MTD 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 8

0

35

MTD 750-04198A

SPACER .41 x .875 x 2.19

$12.99

$

In Stock, only 4 left!

0

36

MTD 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 3 left!

0

37

MTD 751-10291C

OIL DRAIN HOSE

$

$

Not available

38

MTD 751-10349-36

FUEL HOSE LOW PERMEATION 36"

$

$

Not available

39

MTD 751-12089-45

VENT HOSE 3/16 ID 45"LG

$13.99

$

In Stock, only 3 left!

0

40

MTD 751-22188

MUFFLER
(Superseded to 751P22188)

$274.99

$

Usually ships in 3-6 days

0

41

MTD 754P05914A

BELT SEC A x 51.18

$43.99

$

Usually ships in 3-6 days

0

42

MTD 756-06243

FLAT IDLER PULLEY 3.5

$32.99

$

Usually ships in 3-6 days

0

43

MTD 756-06263

DRIVE PUMP PULLEY

$98.99

$

In Stock, only 4 left!

0
