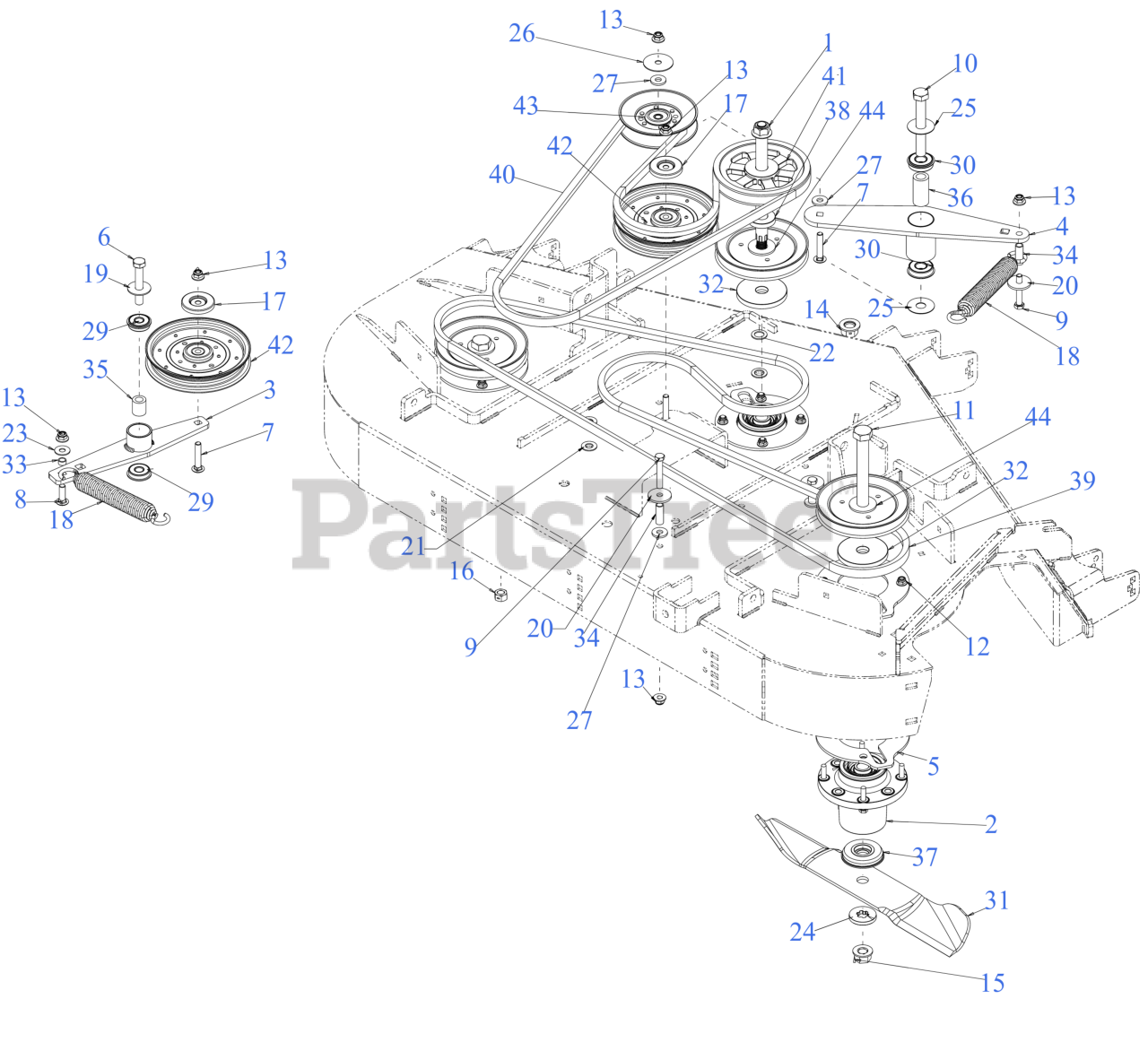

DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2022) Belt, Blade & Spindle Parts Diagram

Stand-On Mower

Belt, Blade & Spindle Parts Diagram

  • Title

1

MTD 611-05847

SPINDLE SHAFT

$63.99

$

Usually ships in 3-6 days

0

2

MTD 618-07406

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$197.99

$

In Stock, Qty 6

0

3

MTD 680E00522A

IDLER BRACKET

$63.99

$

Usually ships in 3-6 days

0

4

MTD 680E00874

IDLER BRACKET

$100.99

$

Usually ships in 3-6 days

0

5

MTD 703E10057A

SPINDLE SUPPORT PLATE TOP & BOTTOM

$27.99

$

Usually ships in 3-6 days

0

6

MTD 710-0182A

SCREW-HEX 1/2-13 x 3.00

$8.49

$

In Stock, Qty 20+

0

7

MTD 710-04157

CARRIAGE BOLT 3/8-16 x 2

$9.49

$

In Stock, Qty 6

0

8

MTD 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

9

MTD 710-0859

HEX SCREW-3/8-16X2.5 GR5

Note: (5/1/22 & After)

$7.49

$

In Stock, Qty 20+

0

9

MTD 710-3011

SCREW 3/8-16 x 2.25 GR5

Note: (5/1/22 & Before)

$7.49

$

In Stock, Qty 20+

0

10

MTD 710-3151A

SCREW 5/8-18X4.5 GR5

$19.99

$

Usually ships in 3-6 days

0

11

MTD 711-06787

SPINDLE SHAFT

$35.99

$

In Stock, only 2 left!

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-04327

NUT

$7.99

$

Usually ships in 3-6 days

0

15

MTD 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

16

MTD 712-3022

HEX NUT CTR LK 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

MTD 721-04516

PULLEY CAP

$15.99

$

In Stock, Qty 6

0

18

MTD 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$36.99

$

In Stock, Qty 20+

0

19

MTD 736-0208

WASHER .51 x 1.5 x .07

$4.99

$

In Stock, Qty 7

0

20

MTD 736-0227

FLAT WASHER .390x1.500x.134

Note: (5/1/22 & After)

$6.99

$

In Stock, Qty 11

0

20

MTD 736-3039

FLAT WASHER .406X1.500X.105

Note: (5/1/22 & Before)

$5.49

$

In Stock, Qty 10

0

21

MTD 736-0272

FLAT WASHER .510 x .995

$5.49

$

In Stock, Qty 20+

0

22

MTD 736-0290

FLAT WASHER

$7.49

$

In Stock, Qty 5

0

23

MTD 736-04183

WASHER-.395 x 1.0 x .62

$5.49

$

Usually ships in 3-6 days

0

24

MTD 736-05223A

FLAT WASHER - SPECIAL

Note: (5/1/22 & After)

$7.49

$

In Stock, Qty 20+

0

25

MTD 736-05210

FLAT WASHER 0.635xX1.755x0.110

Note: (5/1/22 & Before)

$11.99

$

Usually ships in 3-6 days

0

25

MTD 736-05255

THRUST WASHER .635x1.750x0.055

$2.49

$

Usually ships in 3-6 days

0

26

MTD 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.99

$

In Stock, Qty 16

0

27

MTD 736-3052

FLAT WASHER .406ID X1.0 OD

$4.99

$

In Stock, Qty 20+

0

29

MTD 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 8

0

30

MTD 941-0563

BALL BEARING W/RET

$38.99

$

In Stock, only 3 left!

0

31

MTD 742P05533

19" BLADE

$42.99

$

Usually ships in 3-6 days

0

32

MTD 748-05174

DECK SPINDLE SPACER
(Superseded to 748-05174A)

$11.99

$

Usually ships in 3-6 days

0

33

MTD 750-0526

SPACER

$4.99

$

In Stock, Qty 18

0

34

MTD 750-05673

SPACER

$9.49

$

Usually ships in 3-6 days

0

35

MTD 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 3 left!

0

36

MTD 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.99

$

In Stock, only 1 left!

0

37

MTD 750-06749

SPACER 0.790 x 2.75 x 0.486
(Superseded to 750-06749A)

$13.99

$

In Stock, only 4 left!

0

38

MTD 750-10830

SPACER

$6.99

$

Usually ships in 3-6 days

0

39

MTD 954-04327

BELT-B SECTION 119.45"

$127.99

$

In Stock, only 2 left!

0

40

MTD 754P06074

BELT SEC B x 90.30

$105.99

$

In Stock, only 2 left!

0

41

MTD 756-04485

PULLEY-6.96 OD x .750 ID
(Superseded to 756-04485A)

$169.99

$

Usually ships in 3-6 days

0

42

MTD 756-04487

IDLER PULLEY

$70.99

$

In Stock, only 2 left!

0

43

MTD 756-04522

IDLER PULLEY 5.06 OD

$42.99

$

Usually ships in 3-6 days

0

44

MTD 756-06784B

V-PULLEY 6.426"

$41.99

$

Usually ships in 3-6 days

0
