DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2022) Controls Parts Diagram

Stand-On Mower

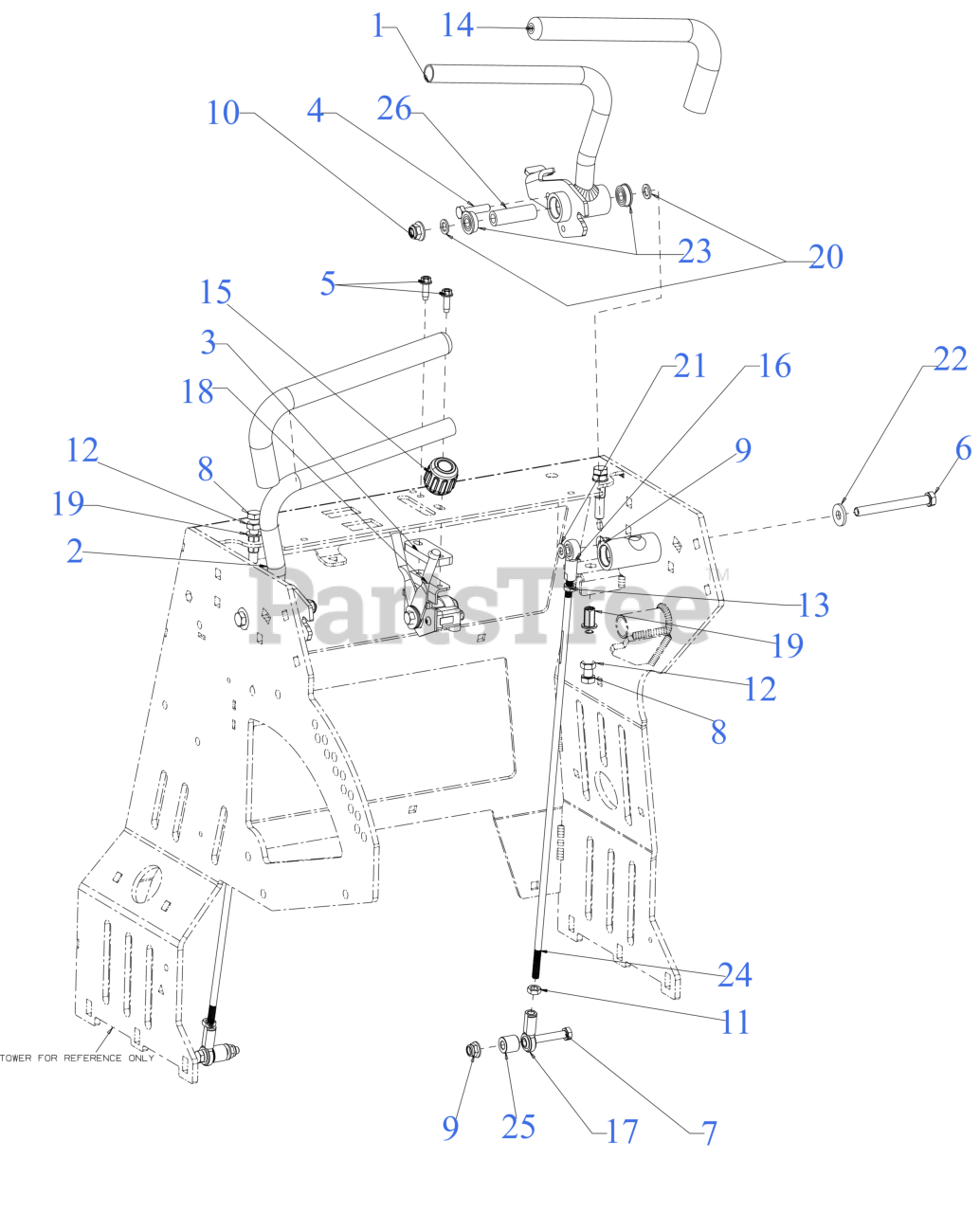

Controls Parts Diagram

  • Title

1

MTD 680P01274B

CONTROL HANDLE (LH)

$125.99

$

Usually ships in 3-6 days

0

2

MTD 680P01275B

CONTROL HANDLE (RH)

$125.99

$

Usually ships in 3-6 days

0

3

MTD 703-10399A

THROTTLE CABLE SPACER

Note: *CHOOSE COLOR WHEN ORDERING*

$6.49

$

Usually ships in 3-6 days

0

4

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3180

SCREW 5/16-18 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-3184A

SCREW 3/8-16 x 2 GR5

$6.49

$

Usually ships in 3-6 days

0

9

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-05941

HEX JAM NUT 5/16-24 GR5

$2.49

$

Usually ships in 3-6 days

0

12

MTD 712-3008

HEX NUT

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3025

HEX JAM NUT 5/16-24 GR 5

$6.99

$

Usually ships in 3-6 days

0

14

MTD 720P05321

GRIP .75 ID X 1.00 OD

$10.99

$

Usually ships in 3-6 days

0

15

MTD 720P05961

BALL KNOB

$10.99

$

Usually ships in 3-6 days

0

16

MTD 723-04039

ROD END 5/16 ID

$53.99

$

Usually ships in 3-6 days

0

17

MTD 723-05004

END ROD- 5/16 (LH)

$47.99

$

Usually ships in 3-6 days

0

18

MTD 925-07443

ELECTRONIC THROTTLE CONTROL

$276.99

$

Usually ships in 3-6 days

0

19

MTD 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

20

MTD 736-0140

FLAT WASHER

$6.99

$

In Stock, Qty 9

0

21

MTD 736-0264

FLAT WASHER

Note: (11/1/22 & After)

$6.49

$

In Stock, only 1 left!

0

21

MTD 736-0275

FLAT WASHER

Note: (11/1/22 & Before)

$6.49

$

Usually ships in 3-6 days

0

22

MTD 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

23

MTD 741-04568

FLANGE BEARING

$35.99

$

In Stock, only 1 left!

0

24

MTD 747-07590

CONTROL ROD

$17.99

$

Usually ships in 3-6 days

0

25

MTD 750-06201

SPACER .34 x .75 x .63 LG

$3.99

$

Usually ships in 3-6 days

0

26

MTD 750-07430

SPACER .379 x .63 x 1.957

$4.99

$

Usually ships in 3-6 days

0
