DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2022) Deck Parts Diagram

Stand-On Mower

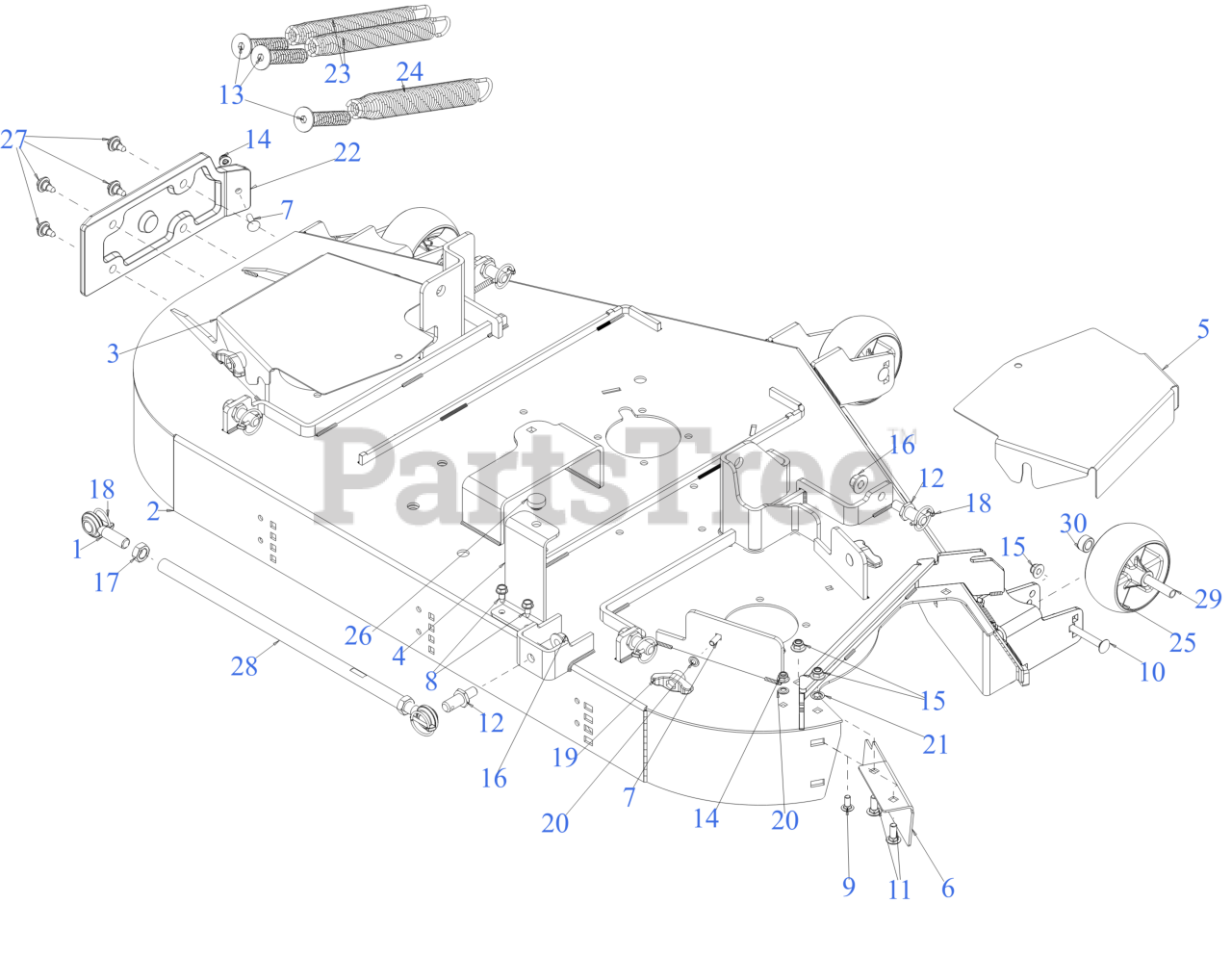

Deck Parts Diagram

  • Title

1

MTD 01007487

MALE ROD END

$82.99

$

In Stock, only 1 left!

0

2

MTD 680-02596

54" FAB DECK

Note: *CHOOSE COLOR WHEN ORDERING*

$1276.99

$

Usually ships in 3-6 days

0

3

MTD 703-14662

BELT COVER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$41.99

$

Usually ships in 3-6 days

0

4

MTD 703-15943

DECK STOP BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$13.99

$

Usually ships in 3-6 days

0

5

MTD 703-26534

BELT COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$41.99

$

Usually ships in 3-6 days

0

6

MTD 703-26535

BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$13.99

$

Usually ships in 3-6 days

0

7

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

9

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-05384

CARRIAGE BOLT 3/8-16 x 4.00 GR5

$4.99

$

In Stock, Qty 20+

0

11

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

12

MTD 711-05604

PIN

$10.99

$

In Stock, Qty 20+

0

13

MTD 711-06667

SPRING INSERT SCREW

$37.99

$

Usually ships in 3-6 days

0

14

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04150

NUT

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-3056

HEX JAM NUT 5/8-18

$4.49

$

In Stock, Qty 11

0

18

MTD 753-04070

LYNCH PIN .1875

$9.49

$

In Stock, Qty 20+

0

19

MTD 720-04122

WING KNOB 5/16-18

$6.49

$

In Stock, Qty 20+

0

20

MTD 726-0201

PUSH NUT

$6.49

$

In Stock, Qty 20+

0

21

MTD 712-0229

PUSH NUT

$3.49

$

In Stock, Qty 20+

0

22

MTD 731-11926

DECK SKID PLATE (LH)

$46.99

$

Usually ships in 3-6 days

0

23

MTD 732-05476

EXTENTION SPRING 1.20 x 11.35

$32.99

$

In Stock, Qty 7

0

24

MTD 732-05492

EXTENSION SPRING 1.44 OD x 11.36

$27.99

$

In Stock, only 2 left!

0

25

MTD 734-04155

DECK WHEEL

$19.99

$

In Stock, Qty 20+

0

26

MTD 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

27

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

28

MTD 747E10270

TUBE .565 X .750 X 18.75"LG
(Superseded to 747-10270)

$

$

Not available

29

MTD 750-06199

SPACER .38X.49X3.05LG

$7.99

$

In Stock, only 4 left!

0

30

MTD 750-0664

SPACER-.505 1D

$6.49

$

Usually ships in 3-6 days

0
