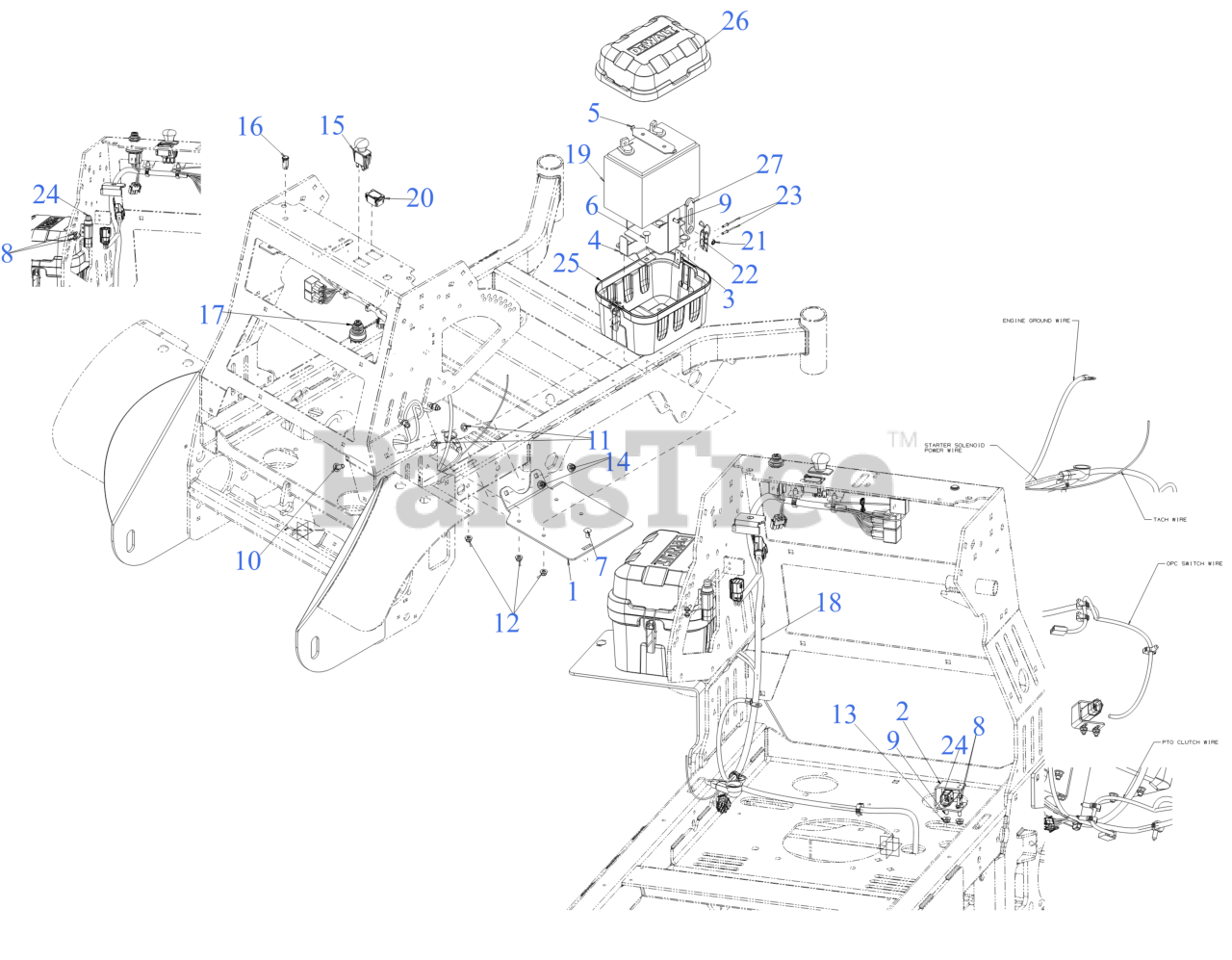

DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2022) Electrical Parts Diagram

Stand-On Mower

Electrical Parts Diagram

  • Title

1

MTD 703-26744

BATTERY MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$60.99

$

Usually ships in 3-6 days

0

2

MTD 703E26760

OPC MOUNT BRACKET

$14.99

$

Usually ships in 3-6 days

0

3

MTD 703E26822A

BACK CLIP PLATE

$7.99

$

Usually ships in 3-6 days

0

4

MTD 703E26843

BATTERY MOUNT

$63.99

$

Usually ships in 3-6 days

0

5

MTD 703E26844

BATTERY STRAP

$10.99

$

Usually ships in 3-6 days

0

6

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.49

$

Usually ships in 3-6 days

0

9

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0229

PUSH NUT

$3.49

$

In Stock, Qty 20+

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

MTD 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$65.99

$

In Stock, Qty 20+

0

16

MTD 725-04660

INDICATOR LIGHT-RED

$29.99

$

Usually ships in 3-6 days

0

17

MTD 725P13545

KEY SWITCH

$79.99

$

Usually ships in 3-6 days

0

17

MTD 925-06908

PRO-Z KEY SET

Note: (Not Shown)

$34.99

$

Usually ships in 3-6 days

0

18

MTD 725P17123

HARNESS (EFI KAW)

$331.99

$

Usually ships in 3-6 days

0

19

MTD 725P17130

BATTERY (230 CCA AGM U1-280)

$116.99

$

Usually ships in 3-6 days

0

20

MTD 725P17252

HOUR METER

$95.99

$

Usually ships in 3-6 days

0

21

MTD 726-0233

RETAINER-BOLT .25ID x .50OD

$3.99

$

In Stock, only 2 left!

0

22

MTD 726-05552

LATCH

$31.99

$

Usually ships in 3-6 days

0

23

MTD 728-0175

RIVOT

$4.49

$

In Stock, Qty 20+

0

24

MTD 929-05136

SEALED PLUNGER SWITCH

$40.99

$

In Stock, only 1 left!

0

25

MTD 731P26210

BATTERY BOX (LOWER)

$25.99

$

Usually ships in 3-6 days

0

26

MTD 731P26211

BATTERY BOX (UPPER)

$26.99

$

Usually ships in 3-6 days

0

27

MTD 735-05226

COVER STRAP 2.50 LONG

$5.99

$

Usually ships in 3-6 days

0
