DXGXA50003 (59A50003038) - DeWALT 36" Mulch Kit (2022) General Assembly Parts Diagram

36" Mulch Kit

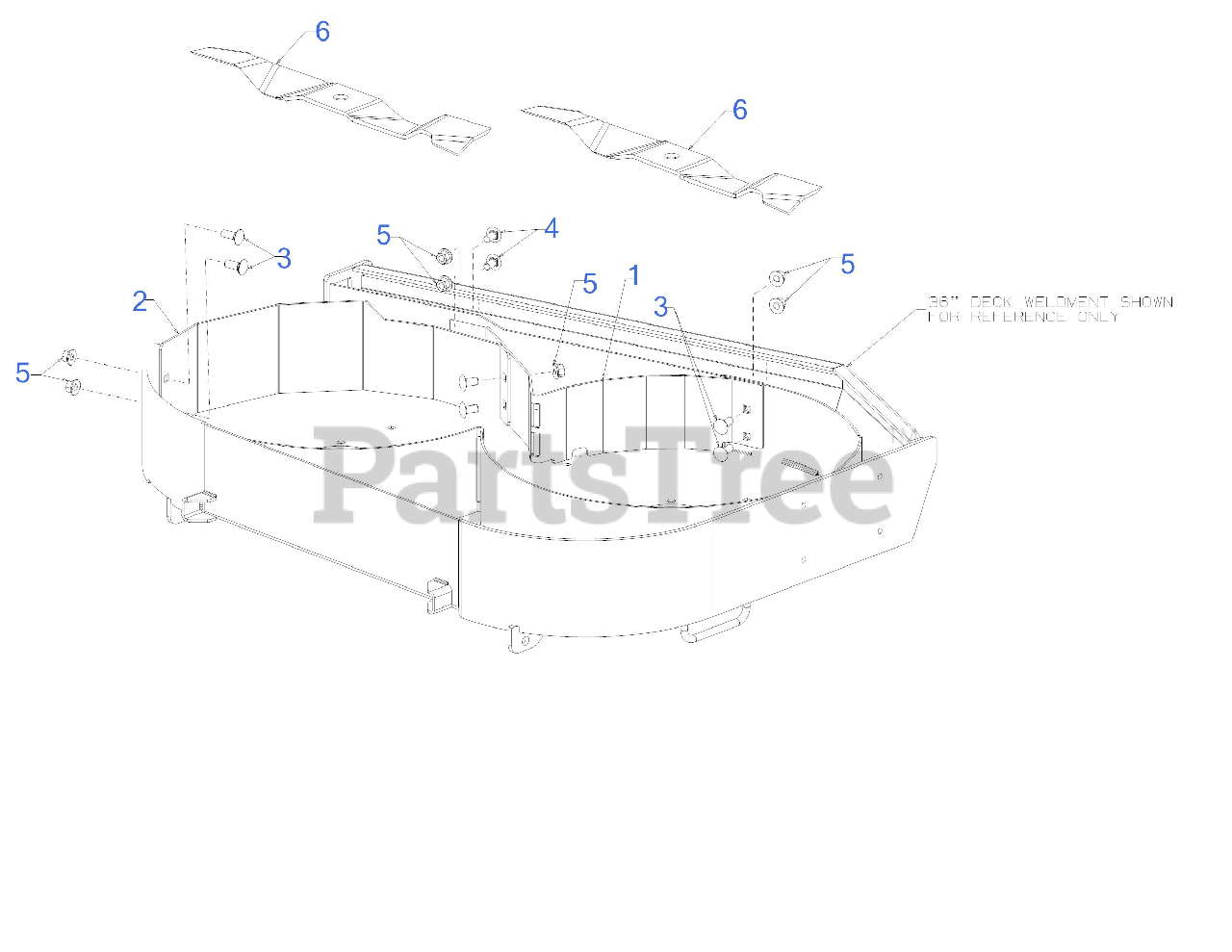

General Assembly Parts Diagram

  • Title

1

MTD 703-11356

36" MULCH BAFFLE (CENTER)

$77.99

$

Usually ships in 3-6 days

0

2

MTD 703-11359

36" MULCH BAFFLE (RH)

$42.99

$

Usually ships in 3-6 days

0

3

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

5

MTD 712-05007

NUT-CTRLCK FLG HEX

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

6

MTD 942-05490

MULCHING BLADE 18.5"
(Superseded to 742-05490-5183)

$39.99

$

Usually ships in 3-6 days

0

MTD 59A50003150

36" WAM MULCH KIT
(Superseded to 59B50003150)

$255.99

$

Usually ships in 3-6 days

0
