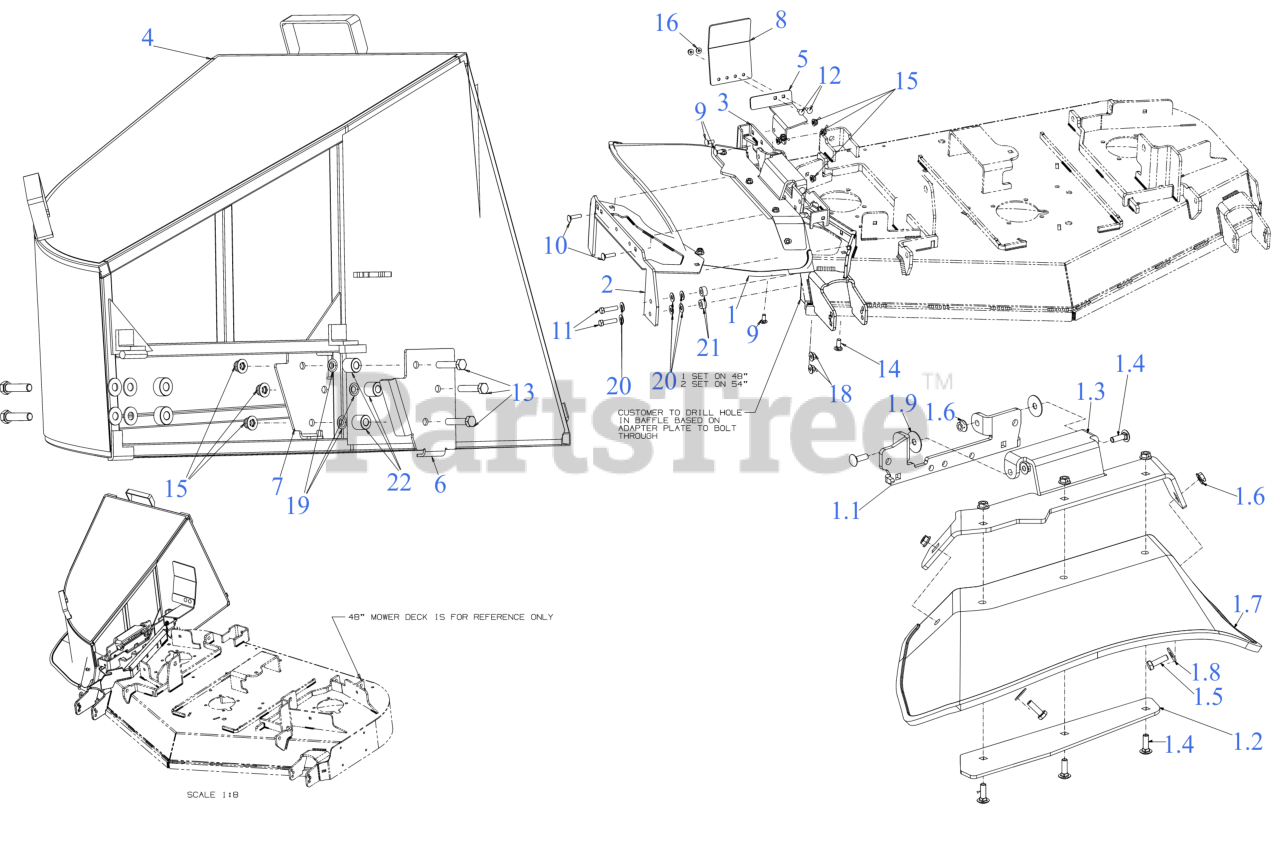

DXGXA50013 (59A50013038) - DeWALT Grass Collector, 4.3 Bushel (2021) General Assembly Parts Diagram

Grass Collector, 4.3 Bushel

General Assembly Parts Diagram

  • Title

1

MTD 931-05396D

DECK CHUTE ASSEMBLY

$244.99

$

Usually ships in 3-6 days

0

1.1

MTD 703-10371D

CHUTE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$40.99

$

Usually ships in 3-6 days

0

1.2

MTD 703-10868

CHUTE SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$19.99

$

Usually ships in 3-6 days

0

1.3

CHUTE BRACKET

Note: (Order Complete Chute)

$

$

Not available

1.4

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

1.5

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

1.6

MTD 712-3004A

HEX FLANGE NUT

$3.49

$

In Stock, Qty 20+

0

1.7

MTD 735-05165

FIBER FORMED CHUTE

$86.99

$

In Stock, only 1 left!

0

1.8

MTD 736-0159

FLAT WASHER

$3.99

$

In Stock, Qty 20+

0

1.9

MTD 736-04639

WASHER .355X1.25X.048THK

$3.49

$

In Stock, only 4 left!

0

2

MTD 680-02744

WELD ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$241.99

$

Usually ships in 3-6 days

0

3

MTD 680-02745

MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$144.99

$

Usually ships in 3-6 days

0

4

GRASSCATCHER CAGE

Note: (Order Complete)

$

$

Not available

5

MTD 703-17783

DEFLECTOR CHUTE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$31.99

$

Usually ships in 3-6 days

0

6

MTD 703-18324

OUTER BAG BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 3-6 days

0

7

MTD 703-18325

INNER BAG BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$28.99

$

Usually ships in 3-6 days

0

8

MTD 703-18604

DEFLECTOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$31.99

$

Usually ships in 3-6 days

0

9

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-04821

CARRIAGE BOLT 5/16-18 x 1.25

$4.99

$

In Stock, Qty 10

0

11

MTD 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-0805A

SCREW 5/16-18 x 1.5 LG

$3.99

$

In Stock, Qty 8

0

14

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

19

MTD 726-0201

PUSH NUT

$6.49

$

In Stock, Qty 20+

0

20

MTD 736-0267

FLAT WASHER

$4.49

$

Usually ships in 3-6 days

0

21

MTD 750-05635

SPACER .385X.875X.458 LG

$3.99

$

Usually ships in 3-6 days

0

22

MTD 750-06201

SPACER .34 x .75 x .63 LG

$3.99

$

Usually ships in 3-6 days

0

MTD 59A50013038

GRASS COLLECTOR 4.3BU

$506.99

$

Usually ships in 3-6 days

0
