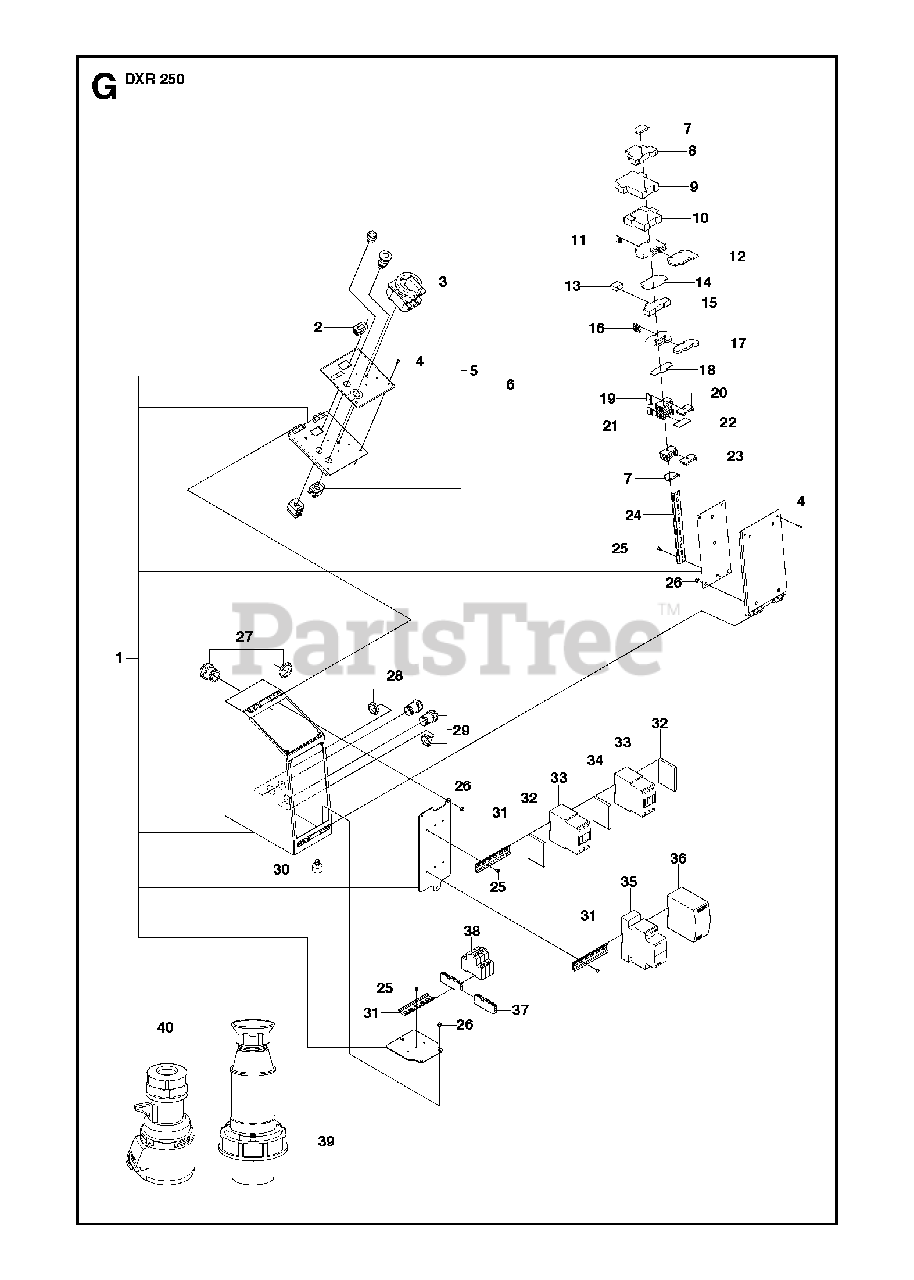

DXR 250 - Husqvarna Demolition Robot (SN: 11) (2010-09) ELECTRICAL Parts Diagram

Demolition Robot

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 584 79 81-01

ELECTRONIC BOX

$11411.98

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 510 28 49-01

HOUR METER

$129.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 522 87 14-01

MAIN SWITCH

$278.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 576 46 77-01

TBD

$

$

Not available

5

Husqvarna Construction 510 28 52-01

SWITCH

$

$

Not available

6

Husqvarna Construction 575 88 81-01

SWITCH

$352.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 522 92 21-01

STOP

$9.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 575 46 49-01

CONTROL

$1209.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 522 91 16-01

RELAY

$704.67

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 522 86 92-01

RELAY

$1591.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 575 89 44-01

BAR

$9.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 522 92 25-01

RELAY

$183.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 575 88 90-01

RELAY

$105.00

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 575 89 49-01

PLATE

$8.49

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 575 88 91-01

RELAY

$59.85

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 575 89 42-01

JUMPER BAR

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 522 92 18-01

FUSE HOLDER

$32.67

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 575 89 48-01

PLATE

$

$

Not available

19

Husqvarna Construction 575 89 45-01

JUMPER BAR

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 575 88 79-01

TERMINAL BLOCK

$8.49

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 575 89 46-01

JUMPER BAR

$9.99

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 522 92 65-01

TERMINAL BLOCK

$9.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 575 88 80-01

TERMINAL BLOCK

$12.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 523 05 53-01

RAIL

$29.99

$

Usually ships in 3-10 days

0

25

Husqvarna 723 23 23-81

SCREW SLPANM

$

$

Not available

26

Husqvarna 503 22 00-06

HEXAGON NUT

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna Construction 575 88 98-01

CABLE

$41.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 523 05 74-01

CABLE

$76.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 523 05 73-01

CABLE

$12.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 510 28 25-01

DAMPER

$39.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 523 05 53-03

RAIL

$29.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 523 04 68-01

RELAY

$79.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 523 04 69-01

CONTACTOR

$1860.83

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 523 04 70-01

CONNECTION

$29.99

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 522 91 44-01

STARTER

$2949.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 505 52 74-01

TRANSFORMER

$1426.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 523 06 00-01

TERMINAL BLOCK

$39.99

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 522 91 18-01

FUSE

$378.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 510 27 77-01

CABLE

$267.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 531 11 71-32

SOCKET

$277.99

$

In Stock, only 1 left!

0
