DXR 310 - Husqvarna Demolition Robot (SN: 44 & Above) (2013-08) HYDRAULIC STACK Parts Diagram

Demolition Robot

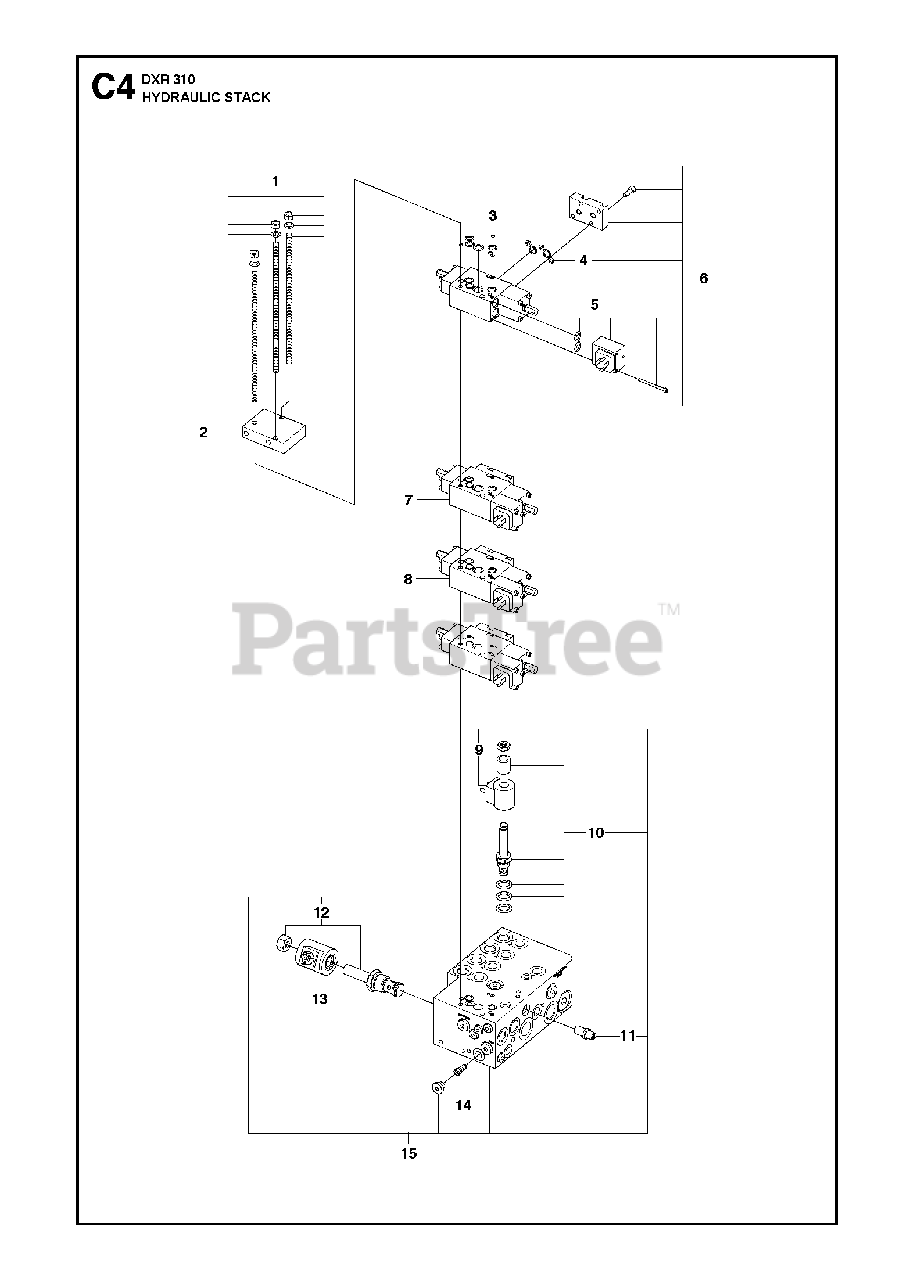

HYDRAULIC STACK Parts Diagram

  • Title

1

Husqvarna Construction 522 96 36-01

TAP4 sections

$821.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 522 80 04-01

VALVE

$646.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 522 96 14-01

O-RING

$230.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 522 96 16-01

O-RING

$143.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 522 96 13-01

SOLENOID

$1158.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 522 80 10-01

VALVESlew motor

$3148.83

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 522 80 09-01

VALVEOutriggers

$2712.50

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 522 80 06-01

VALVETrack drive motor left & right

$4420.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 522 95 87-01

SOLENOID

$31.50

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 522 95 85-01

VALVEOutriggers

$984.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 522 95 99-01

VALVEPressure reducing valve, Pilot pressure

$884.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 522 95 92-01

VALVEcirculation valve

$1386.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 522 95 93-01

SOLENOID

$240.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 522 96 00-01

VALVEShuttel valve, Load-sensing signal

$184.28

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 522 95 81-01

MANIFOLD

$8460.99

$

Usually ships in 3-10 days

0
