DY232BS0030 (DY23-2) - Subaru Robin Engine, Diesel 103 Crankcase Parts Diagram

Engine, Diesel

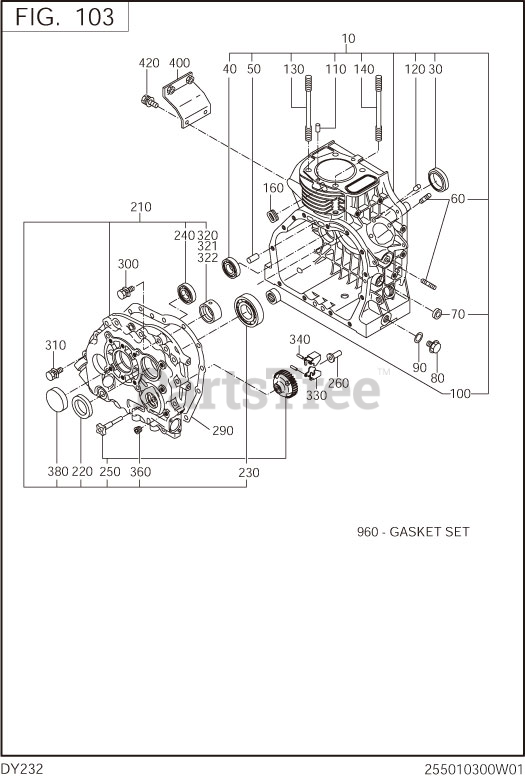

103 Crankcase Parts Diagram

  • Title

10

Subaru Robin 243-10106-71

CRANKCASE CP

$1525.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 044-03000-60

OIL SEAL

Note: Remarks: TB30488.

$12.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 060-01700-40

BALL BEARING

Note: Remarks: BB6003C3.

$12.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 031-00801-00

DOWEL PIN

Note: Start Code: 7136.

$7.49

$

Usually ships in 2-12 days

0

50

Subaru Robin 005-26081-80

DOWEL PIN

Note: End Code: 7135.

$7.49

$

Usually ships in 2-12 days

0

60

Subaru Robin 001-37062-21

STUD

$2.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 044-00800-30

OIL SEAL

Note: Remarks: 8X18X7.

$11.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 040-11400-30

PLUG

Note: Remarks: M14X1.5X20DX12L.

$5.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 021-11400-20

GASKET

Note: Remarks: 14.1DX19DX2.3T.

$1.49

$

In Stock, Qty 9

0

100

Subaru Robin 061-01700-30

NEEDLE BEARING

$20.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 031-00600-10

DOWEL PIN

Note: Remarks: 6DX14.8L.

$0.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 031-00500-10

DOWEL PIN

Note: Remarks: 5DX10L.

$0.99

$

Usually ships in 2-12 days

0

130

Subaru Robin 244-16001-11

TENSION BOLT CP

$33.99

$

Usually ships in 2-12 days

0

140

Subaru Robin 244-16002-11

TENSION BOLT CP

$33.99

$

Usually ships in 2-12 days

0

160

Subaru Robin 243-75001-03

GROMMET

$10.99

$

Usually ships in 2-12 days

0

210

255-10905-11

M,BEARING COVER CP

$

$

Not available

220

Subaru Robin 044-03000-30

OIL SEAL

Note: Remarks: 30DX45DX8B.

$26.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 060-03000-20

BALL BEARING

Note: Remarks: 30DX62DX16B.

$50.99

$

Usually ships in 2-12 days

0

240

Subaru Robin 060-01700-40

BALL BEARING

Note: Remarks: BB6003C3.

$12.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 243-45011-17

GOVERNOR GEAR SET

$121.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

Note: Remarks: 6DX9DX16DX26L.

$19.99

$

Usually ships in 2-12 days

0

290

Subaru Robin 255-15004-03

GASKET(BEARING COVER

$21.99

$

Usually ships in 2-12 days

0

300

Subaru Robin 011-00802-70

FLANGE BOLT

Note: Remarks: M8X1.25X16DX33L.

$1.49

$

Usually ships in 2-12 days

0

310

011-00802-80

FLANGE BOLT

$

$

Not available

320

Subaru Robin 243-15801-03

MAIN BEARING

Note: Remarks: STD..

$23.99

$

Usually ships in 2-12 days

0

321

Subaru Robin 243-15802-03

MAIN BEARING

Note: Remarks: 0.25 U.S..

$26.99

$

Usually ships in 2-12 days

0

322

Subaru Robin 243-15803-03

MAIN BEARING

Note: Remarks: 0.50 U.S..

$26.99

$

Usually ships in 2-12 days

0

330

Subaru Robin 220-41601-03

FLYWEIGHT

$3.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 030-73000-70

PIN

Note: Remarks: 2.6DX27.5L.

$1.49

$

Usually ships in 2-12 days

0

360

Subaru Robin 235-15421-03

BLIND PLUG

Note: Remarks: PT1/8X8L.

$4.99

$

Usually ships in 2-12 days

0

380

Subaru Robin 041-04500-10

BLIND PLUG

$8.49

$

Usually ships in 2-12 days

0

960

Subaru Robin 255-99001-27

GASKET SET

$115.99

$

Usually ships in 2-12 days

0
