DY232BS0030 (DY23-2) - Subaru Robin Engine, Diesel 303 Intake & Exhaust Parts Diagram

Engine, Diesel

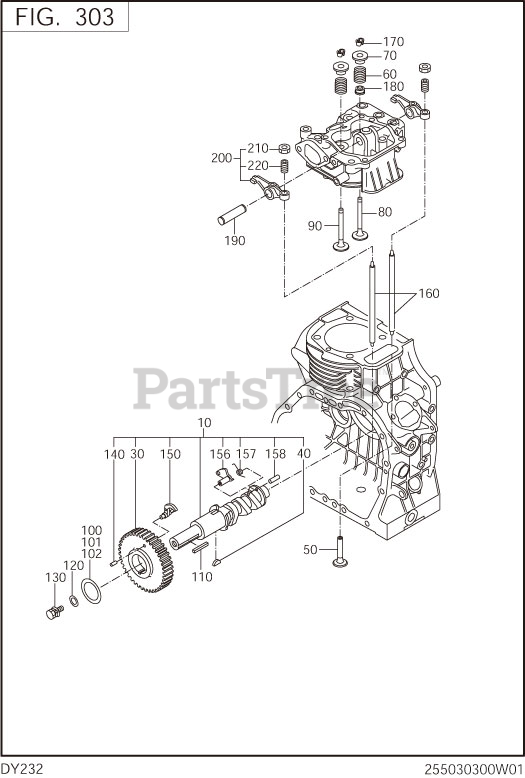

303 Intake & Exhaust Parts Diagram

  • Title

10

Subaru Robin 243-31602-11

CAMSHAFT CP

$236.24

$

Usually ships in 2-12 days

0

30

Subaru Robin 243-33201-33

CAMSHAFT GEAR

$55.45

$

Usually ships in 2-12 days

0

40

Subaru Robin 005-32032-01

WOODRUFF KEY

$1.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 243-33301-03

TAPPET

$13.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 243-33601-03

VALVE SPRING

$4.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 243-33701-23

SPRING RETAINER

Note: Start Code: 6026.

$10.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 243-33701-13

SPRING RETAINER

Note: End Code: 6025.

$10.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 243-33401-23

INTAKE VALVE

$20.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 243-33501-23

EXHAUST VALVE

$40.99

$

Usually ships in 2-12 days

0

100

Subaru Robin 023-03001-70

SPACER

Note: Remarks: 30.3DX40DX0.6T.

$

$

Not available

101

Subaru Robin 023-03001-80

SPACER

Note: Remarks: 30.3DX40DX0.8T.

$1.49

$

Usually ships in 2-12 days

0

102

Subaru Robin 023-03001-90

SPACER

Note: Remarks: 30.3DX40DX1.0T.

$1.49

$

Usually ships in 2-12 days

0

110

Subaru Robin 005-30053-01

KEY

Note: Interchangable with 032-00500-10.

$5.49

$

Usually ships in 2-12 days

0

120

Subaru Robin 020-00800-50

WASHER

Note: Remarks: 8.5DX28DX2.3T.

$2.49

$

Usually ships in 2-12 days

0

130

Subaru Robin 001-13081-60

BOLT AND WASHER AY

Note: Remarks: M8X1.25X16L W/SW.

$0.99

$

Usually ships in 2-12 days

0

140

Subaru Robin 031-00801-00

DOWEL PIN

Note: Start Code: 7136.

$4.99

$

Usually ships in 2-12 days

0

140

Subaru Robin 005-26081-80

DOWEL PIN

Note: End Code: 7135.

$4.99

$

Usually ships in 2-12 days

0

150

Subaru Robin 243-35504-33

RELEASE LEVER

$34.25

$

Usually ships in 2-12 days

0

156

Subaru Robin 243-35506-03

RELEASE LEVER

$10.64

$

Usually ships in 2-12 days

0

157

Subaru Robin 243-35024-03

SPRING(RELEASE)

$1.99

$

Usually ships in 2-12 days

0

158

Subaru Robin 243-35022-03

SHAFT(RELEASE)

$0.99

$

Usually ships in 2-12 days

0

160

Subaru Robin 243-35032-01

PUSH ROD CP

$10.64

$

Usually ships in 2-12 days

0

170

Subaru Robin 243-33801-13

RETAINER LOCK

$4.49

$

Usually ships in 2-12 days

0

180

Subaru Robin 237-16008-01

STEM SEAL

Note: Remarks: 5.5DX9.5DX14DX7.5B.

$7.49

$

In Stock, only 2 left!

0

190

Subaru Robin 243-35034-03

ROCKER SHAFT

$13.94

$

Usually ships in 2-12 days

0

200

Subaru Robin 243-36002-01

ROCKER ARM CP

$25.24

$

Usually ships in 2-12 days

0
