DY232BS7000 (DY23-2) - Subaru Robin Engine, Diesel 206 Crankshaft Parts Diagram

Engine, Diesel

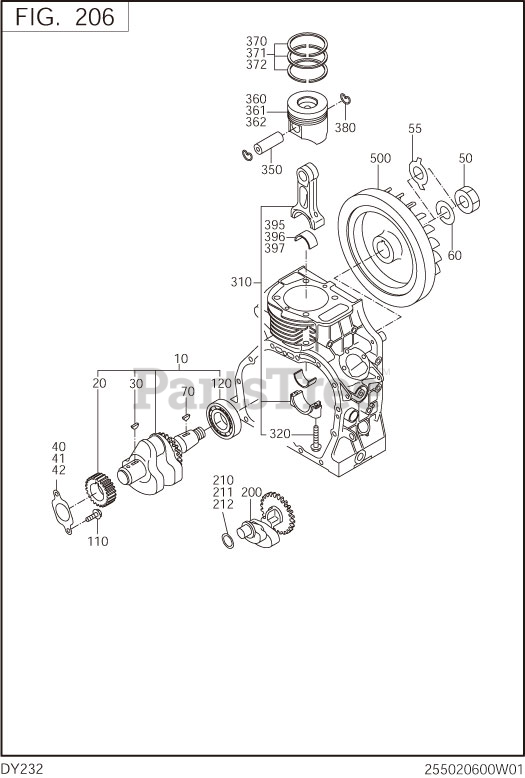

206 Crankshaft Parts Diagram

  • Title

10

Subaru Robin 243-20101-21

CRANKSHAFT CP

Note: Start Code: 5661.

$602.99

$

Usually ships in 2-12 days

0

10

Subaru Robin 243-20101-11

CRANKSHAFT CP

Note: End Code: 5660.

$602.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 243-22301-03

CRANKSHAFT GEAR

$77.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: Remarks: 3BX6HX16D.

$7.49

$

Usually ships in 2-12 days

0

40

Subaru Robin 243-25001-03

THRUST WASHER

Note: Remarks: T=0.8.

$12.99

$

Usually ships in 2-12 days

0

41

Subaru Robin 243-25002-03

THRUST WASHER

Note: Remarks: T=1.0.

$6.99

$

Usually ships in 2-12 days

0

42

Subaru Robin 243-25003-03

THRUST WASHER

Note: Remarks: T=1.2.

$6.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 002-18180-00

NUT

Note: Remarks: M18X1.5X15H.

$10.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 003-20180-00

SPRING WASHER

Note: Remarks: 18.2DX31DX4.6T.

$1.49

$

Usually ships in 2-12 days

0

70

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: Remarks: 3BX6HX16D.

$7.49

$

Usually ships in 2-12 days

0

110

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Remarks: M6X1.0X14DX8L.

$4.49

$

In Stock, only 2 left!

0

120

060-03502-00

BALL BEARING

Note: Start Code: 5661.

$

$

Not available

120

Subaru Robin 060-03500-20

BALL BEARING

Note: End Code: 5660. Remarks: BB6307.

$44.99

$

Usually ships in 2-12 days

0

200

Subaru Robin 243-24301-01

BALANCER CP

$375.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 023-01700-20

SPACER

Note: Remarks: T=0.8.

$10.99

$

Usually ships in 2-12 days

0

211

Subaru Robin 023-01700-30

SPACER

Note: Remarks: T=1.0.

$10.99

$

Usually ships in 2-12 days

0

212

Subaru Robin 023-01700-40

SPACER

Note: Remarks: T=1.2.

$10.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 243-22510-00

CONNECTING ROD AY

$428.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 243-23002-03

CONNECTING ROD BOLT

$5.49

$

Usually ships in 2-12 days

0

350

243-23301-13

PISTON PIN

Note: Start Code: 6666.

$

$

Not available

350

Subaru Robin 243-23301-03

PISTON PIN

Note: End Code: 6665.

$23.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 255-23401-H3

PISTON

Note: Start Code: 6960.

$208.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 243-23401-13

PISTON

Note: End Code: 6959. Remarks: STD..

$208.99

$

Usually ships in 2-12 days

0

361

255-23402-H3

PISTON(0.25)

Note: Start Code: 6960.

$

$

Not available

361

Subaru Robin 243-23402-13

PISTON

Note: End Code: 6959. Remarks: 0.25 O.S..

$205.99

$

Usually ships in 2-12 days

0

362

255-23403-H3

PISTON(0.5)

Note: Start Code: 6960.

$

$

Not available

362

Subaru Robin 243-23403-13

PISTON

Note: End Code: 6959. Remarks: 0.50 O.S..

$205.99

$

Usually ships in 2-12 days

0

370

Subaru Robin 243-23501-27

PISTON RING SET

Note: Remarks: STD..

$195.99

$

Usually ships in 2-12 days

0

371

Subaru Robin 243-23502-27

PISTON RING SET

Note: Remarks: 0.25 O.S..

$111.99

$

Usually ships in 2-12 days

0

372

Subaru Robin 243-23503-27

PISTON RING SET

Note: Remarks: 0.50 O.S..

$111.99

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-52000-30

CLIP

$2.99

$

Usually ships in 2-12 days

0

395

Subaru Robin 243-22801-03

LARGE END BEARING

Note: Remarks: STD..

$31.99

$

Usually ships in 2-12 days

0

396

Subaru Robin 243-22802-03

LARGE END BEARING

Note: Remarks: 0.25 U.S..

$33.99

$

Usually ships in 2-12 days

0

397

Subaru Robin 243-22803-03

LARGE END BEARING

Note: Remarks: 0.50 U.S..

$33.99

$

Usually ships in 2-12 days

0
