DY272BS7000 (DY27-2) - Subaru Robin Engine, Diesel 303 Intake & Exhaust Parts Diagram

Engine, Diesel

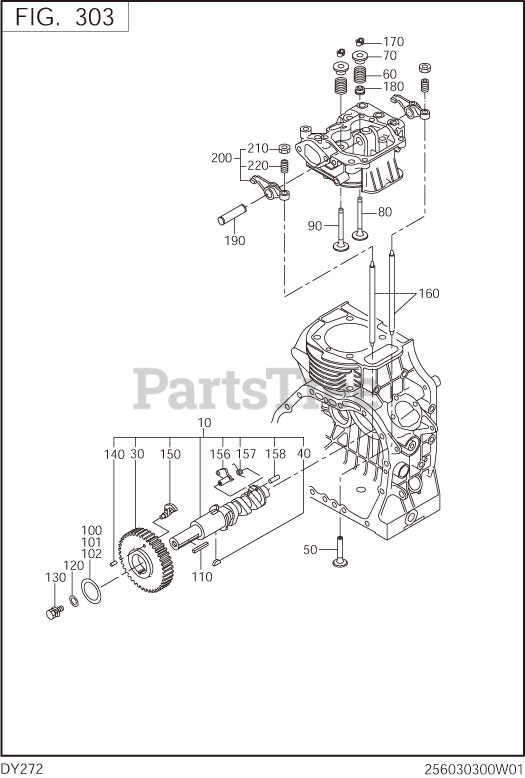

303 Intake & Exhaust Parts Diagram

  • Title

10

Subaru Robin 244-31602-11

CAMSHAFT CP

Note: Start Code: 5140.

$331.99

$

Usually ships in 2-12 days

0

10

Subaru Robin 244-31602-01

CAMSHAFT CP

Note: End Code: 5139.

$331.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 243-33201-33

CAMSHAFT GEAR

$79.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 005-32032-01

WOODRUFF KEY

$2.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 243-33301-03

TAPPET

$20.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 243-33601-03

VALVE SPRING

$8.49

$

Usually ships in 2-12 days

0

70

Subaru Robin 243-33701-23

SPRING RETAINER

Note: Start Code: 6026.

$16.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 243-33701-13

SPRING RETAINER

Note: End Code: 6025.

$16.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 243-33401-23

INTAKE VALVE

$

$

Not available

90

Subaru Robin 243-33501-23

EXHAUST VALVE

$67.99

$

Usually ships in 2-12 days

0

100

Subaru Robin 023-03001-70

SPACER

Note: Remarks: 30.3DX40DX0.6T.

$2.49

$

Usually ships in 2-12 days

0

101

Subaru Robin 023-03001-80

SPACER

Note: Remarks: 30.3DX40DX0.8T.

$1.99

$

Usually ships in 2-12 days

0

102

Subaru Robin 023-03001-90

SPACER

Note: Remarks: 30.3DX40DX1.0T.

$1.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 005-30073-51

KEY

Note: Remarks: 7BX7HX35L.

$11.99

$

Usually ships in 2-12 days

0

140

Subaru Robin 031-00801-00

DOWEL PIN

Note: Start Code: 7136.

$7.49

$

Usually ships in 2-12 days

0

140

Subaru Robin 005-26081-80

DOWEL PIN

Note: End Code: 7135.

$7.49

$

Usually ships in 2-12 days

0

150

Subaru Robin 243-35504-33

RELEASE LEVER

$49.99

$

Usually ships in 2-12 days

0

156

Subaru Robin 243-35506-03

RELEASE LEVER

$15.99

$

Usually ships in 2-12 days

0

157

Subaru Robin 243-35024-03

SPRING(RELEASE)

$2.99

$

Usually ships in 2-12 days

0

158

Subaru Robin 243-35022-03

SHAFT(RELEASE)

$1.49

$

Usually ships in 2-12 days

0

160

Subaru Robin 243-35032-01

PUSH ROD CP

$15.99

$

Usually ships in 2-12 days

0

170

Subaru Robin 243-33801-13

RETAINER LOCK

$6.99

$

Usually ships in 2-12 days

0

180

Subaru Robin 237-16008-01

STEM SEAL

Note: Remarks: 5.5DX9.5DX14DX7.5B.

$12.99

$

Usually ships in 2-12 days

0

190

Subaru Robin 243-35034-03

ROCKER SHAFT

$20.99

$

Usually ships in 2-12 days

0

200

Subaru Robin 243-36002-01

ROCKER ARM CP

$36.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 017-00800-90

NUT

Note: Remarks: M8X0.75X5.1H.

$9.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 014-90800-21

ADJUSTING SCREW

Note: Remarks: M8X0.75X13.4L.

$11.99

$

Usually ships in 2-12 days

0
