DY272DD4060 (DY27-2) - Subaru Robin Engine, Diesel 350 Intake & Exhaust Parts Diagram

Engine, Diesel

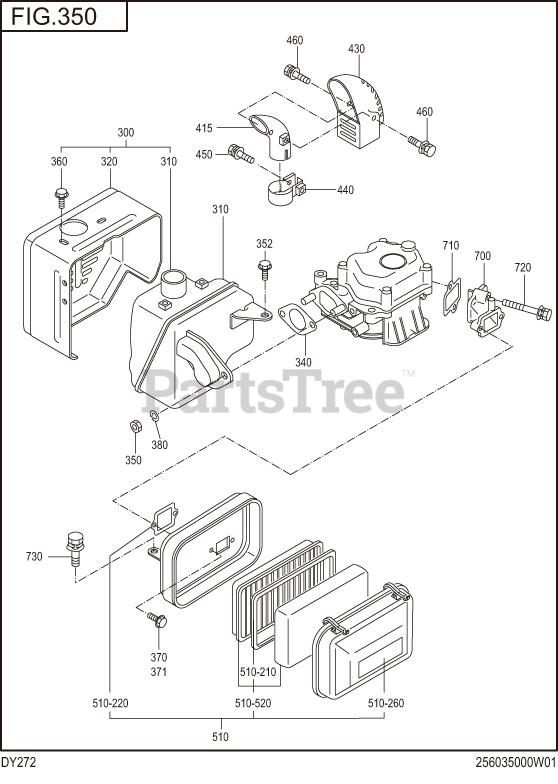

350 Intake & Exhaust Parts Diagram

  • Title

300

255-30105-00

MUFFLER AY

Note: Start Code: 2283.

$

$

Not available

310

Subaru Robin 243-30106-21

MUFFLER CP

Note: End Code: 2282.

$159.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 243-34207-01

MUFFLER COVER

Note: End Code: 2282.

$109.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 255-35002-03

GASKET(EXHAUST)

Note: Start Code: 5570.

$4.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 243-35002-03

GASKET(EXHAUST)

Note: End Code: 5569.

$4.99

$

Usually ships in 2-12 days

0

350

Subaru Robin 017-00800-30

NUT

Note: Start Code: 5631. Remarks: M8X1.25X6.5H.

$3.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 002-19080-00

NUT

Note: End Code: 5630.

$5.49

$

In Stock, only 2 left!

0

360

Subaru Robin 001-10061-00

BOLT AND WASHER AY

Note: End Code: 2282. Remarks: M6X1.0X10L W/SW.

$1.99

$

Usually ships in 2-12 days

0

370

Subaru Robin 001-13061-20

BOLT AND WASHER AY

Note: Interchangable with 001-14061-20.

$1.99

$

Usually ships in 2-12 days

0

380

Subaru Robin 003-20080-00

SPRING WASHER

Note: Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

0

415

Subaru Robin 228-37001-01

TAILE PIPE CP

$66.99

$

Usually ships in 2-12 days

0

430

Subaru Robin 228-37101-21

TAILE PIPE COVER CP

$61.99

$

Usually ships in 2-12 days

0

440

Subaru Robin 228-37201-11

BAND CP

$15.99

$

Usually ships in 2-12 days

0

450

Subaru Robin 001-13062-50

BOLT AND WASHER AY

$0.99

$

Usually ships in 2-12 days

0

460

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Remarks: M6X1.0X14DX8L.

$4.49

$

In Stock, only 2 left!

0

510

Subaru Robin 243-32604-10

AIR CLEANER AY

Note: Start Code: 3866.

$254.99

$

Usually ships in 2-12 days

0

510

Subaru Robin 243-32604-00

AIR CLEANER AY

Note: End Code: 3865.

$254.99

$

Usually ships in 2-12 days

0

510

Subaru Robin 228-32805-08

PACKING

$3.99

$

In Stock, Qty 18

0

510

Subaru Robin 243-32651-08

PACKING

$4.49

$

Usually ships in 2-12 days

0

510

Subaru Robin 243-92305-03

LABEL(AIR CLEANER)

$4.99

$

Usually ships in 2-12 days

0

510

Subaru Robin 228-32801-07

ELEMENT SET

$189.99

$

In Stock, only 1 left!

0

700

Subaru Robin 243-33101-13

INTAKE MANIFOLD

$21.99

$

Usually ships in 2-12 days

0

710

Subaru Robin 243-35003-13

GASKET(IN-MANIFOLD)

$0.99

$

Usually ships in 2-12 days

0

720

Subaru Robin 001-13083-50

BOLT AND WASHER AY

Note: Remarks: M8X1.25X35L W/SW.

$0.99

$

Usually ships in 2-12 days

0

730

Subaru Robin 001-13081-60

BOLT AND WASHER AY

Note: Remarks: M8X1.25X16L W/SW.

$0.99

$

Usually ships in 2-12 days

0
