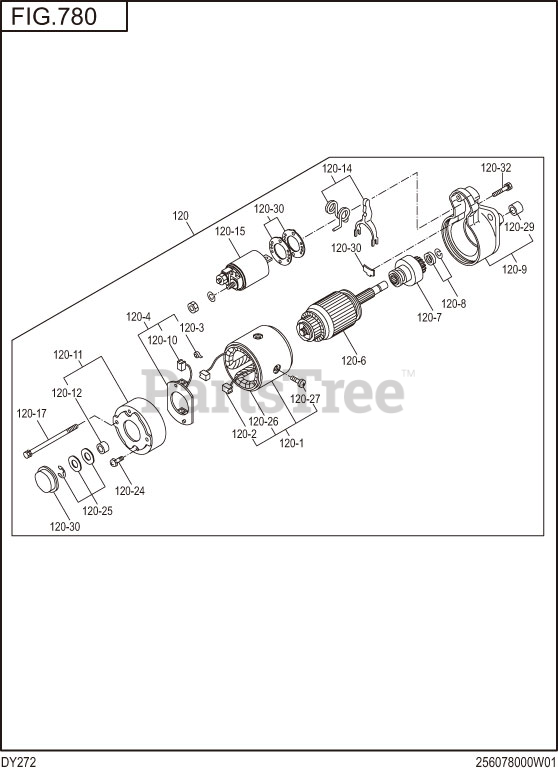

DY272DS2820 (DY27-2) - Subaru Robin Engine, Diesel 780 Electric Device Parts Diagram

Engine, Diesel

780 Electric Device Parts Diagram

  • Title

120

Subaru Robin 255-70502-00

STARTING MOTOR AY

Note: Start Code: 3319.

$1095.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70506-00

STARTING MOTOR AY

Note: End Code: 3318. Interchangable with 255-70502-00.

$1095.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70580-08

YOKE AY

Note: Start Code: 3319.

$146.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70563-08

YOKE AY

Note: End Code: 3318.

$269.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70551-08

BRUSH SET

Note: Start Code: 3319.

$25.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 210-70539-08

BRUSH(+)

Note: End Code: 3318.

$19.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70569-08

DUST COVER KIT

Note: End Code: 3318.

$20.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 228-70522-08

BOLT

Note: Start Code: 3319.

$6.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70571-08

BOLT

Note: End Code: 3318.

$11.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 228-70516-08

BRUSH SPRING

Note: Start Code: 3319.

$7.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70542-08

BRUSH SPRING

Note: End Code: 3318.

$7.49

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70531-08

BRUSH HOLDER AY

Note: Start Code: 3319.

$51.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70530-08

BRUSH HOLDER AY

Note: End Code: 3318.

$47.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70561-08

ARMATURE AY

Note: Start Code: 3319.

$304.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70561-08

ARMATURE AY

Note: End Code: 3318.

$509.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70521-08

PINION AY

Note: Start Code: 3319.

$238.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70567-08

PINION AY

Note: End Code: 3318.

$399.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 210-70534-08

PINION STOPPER SET

$14.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70501-08

GEAR CASE AY

Note: Start Code: 3319.

$268.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70568-08

GEAR CASE AY

Note: End Code: 3318.

$451.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 228-70514-08

BRUSH (-)

Note: Start Code: 3319.

$25.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70540-08

BRUSH(-)

Note: End Code: 3318.

$30.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70505-08

REAR COVER AY

Note: Start Code: 3319.

$47.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70506-08

REAR COVER AY

Note: End Code: 3318.

$80.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 210-70542-08

GEAR CASE METAL

$21.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70525-08

SHIFT LEVER KIT

$14.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70515-08

MAGNETIC SWITCH AY

Note: Start Code: 3319.

$314.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70515-08

MAGNETIC SWITCH AY

Note: End Code: 3318.

$263.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 207-70524-08

THROUGH BOLT

Note: Start Code: 3319.

$13.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70570-08

THROUGH BOLT

Note: End Code: 3318.

$22.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 217-70533-08

SCREW SET

Note: End Code: 3318.

$3.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 210-70533-08

THRUST WASHER KIT

$3.49

$

Usually ships in 2-12 days

0

120

Subaru Robin 243-70565-08

FIELD COIL AY

Note: End Code: 3318.

$260.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 210-70508-08

SCREW

Note: End Code: 3318.

$1.49

$

Usually ships in 2-12 days

0

120

Subaru Robin 210-70542-08

GEAR CASE METAL

$21.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 255-70570-08

DUST COVER KIT

Note: Start Code: 3319.

$19.99

$

Usually ships in 2-12 days

0
