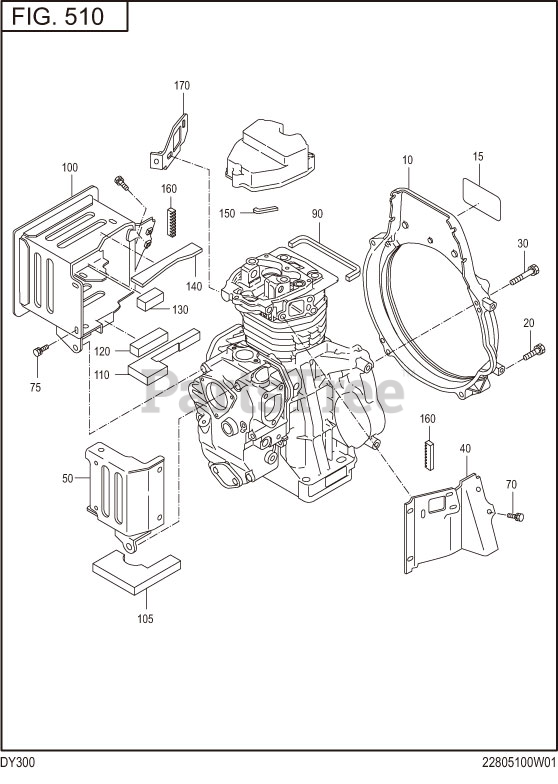

DY300DS1650 (DY30) - Subaru Robin Engine, Diesel 510 Cooling & Starting Parts Diagram

Engine, Diesel

510 Cooling & Starting Parts Diagram

  • Title

10

Subaru Robin 228-51101-03

BLOWER HOUSING

$229.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 001-13084-00

BOLT AND WASHER AY

Note: Remarks: M8X1.25X40L W/SW.

$0.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 001-13085-50

BOLT AND WASHER AY

Note: Remarks: M8X1.25X55L W/SW.

$0.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 228-53001-02

CYLINDER BAFFLE 1 UN

$94.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 228-53101-02

CYLINDER BAFFLE 2 UN

$53.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Remarks: M6X1.0X14DX12L.

$4.49

$

In Stock, only 3 left!

0

75

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Remarks: M6X1.0X14DX8L.

$4.49

$

In Stock, only 2 left!

0

90

Subaru Robin 228-55016-03

SEAL RUBBER(HEAD)

$45.99

$

Usually ships in 2-12 days

0

100

Subaru Robin 228-53201-12

CYLINDER BAFFIE 3 UN

$97.99

$

Usually ships in 2-12 days

0

105

Subaru Robin 228-55007-03

SEAL 1

$33.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 228-55008-13

SEAL 2

$42.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 228-55013-03

SEAL 5

$9.99

$

Usually ships in 2-12 days

0

130

Subaru Robin 228-55010-03

SEAL 4

$15.99

$

Usually ships in 2-12 days

0

140

Subaru Robin 228-55015-13

SEAL 7

$10.99

$

Usually ships in 2-12 days

0

160

Subaru Robin 228-55004-03

FIN DAMPER

$48.99

$

Usually ships in 2-12 days

0

170

Subaru Robin 228-55006-12

SUPPORT UN

$72.99

$

Usually ships in 2-12 days

0
