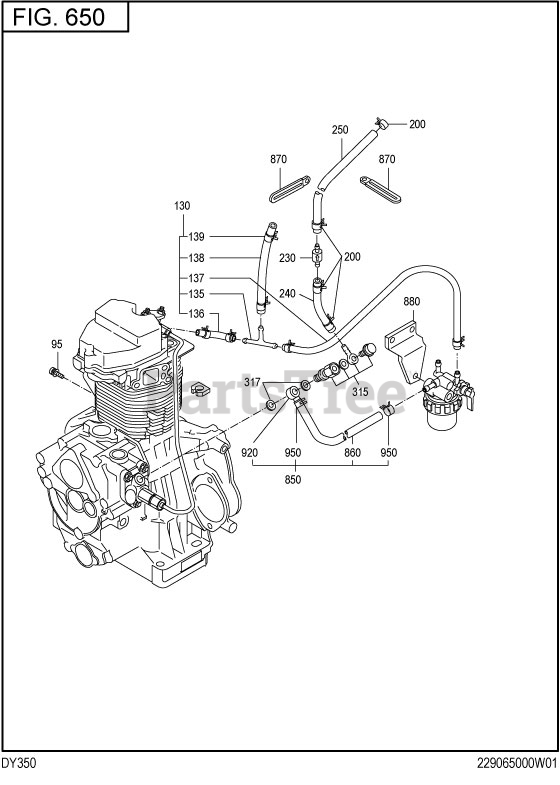

DY350DS1720 (DY35) - Subaru Robin Engine, Diesel 650 Fuel & Lubricant Parts Diagram

Engine, Diesel

650 Fuel & Lubricant Parts Diagram

  • Title

95

Subaru Robin 001-13082-00

BOLT AND WASHER AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X20L W/SW.

$1.99

$

Usually ships in 2-12 days

0

130

228-62641-11

FUEL PIPE 41CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

135

Subaru Robin 255-65003-03

T-CONNECTOR CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$14.99

$

Usually ships in 2-12 days

0

136

085-10413-20

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5DX9DX60L. Interchangable with 085-14500-00.

$

$

Not available

137

085-10411-20

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5DX9DX270L. Interchangable with 085-14500-00.

$

$

Not available

138

Subaru Robin 085-10406-90

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5DX9DX120L. Interchangable with 085-14500-00.

$17.99

$

Usually ships in 2-12 days

0

139

Subaru Robin 056-10800-10

HOSE CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.8DX6BX0.6T.

$2.49

$

Usually ships in 2-12 days

0

200

Subaru Robin 056-10800-10

HOSE CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.8DX6BX0.6T.

$2.49

$

Usually ships in 2-12 days

0

230

Subaru Robin 228-65032-13

CHECK VALVE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$15.99

$

Usually ships in 2-12 days

0

240

085-10413-20

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5DX9DX60L. Interchangable with 085-14500-00.

$

$

Not available

250

Subaru Robin 085-10415-60

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5DX9DX380L. Interchangable with 085-14500-00.

$17.99

$

Usually ships in 2-12 days

0

315

228-66502-00

EYE BOLT AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

317

Subaru Robin 228-66601-03

GASKET(PUMP)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12.2DX15.4DX1.5T.

$3.49

$

Usually ships in 2-12 days

0

850

Subaru Robin 228-62642-01

FUEL PIPE 42 CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$49.99

$

Usually ships in 2-12 days

0

860

085-10602-70

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX185L. Interchangable with 085-10600-00.

$

$

Not available

870

Subaru Robin 150-75201-03

CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$9.99

$

Usually ships in 2-12 days

0

880

Subaru Robin 228-67670-01

FUEL F.BRACKET CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$12.99

$

Usually ships in 2-12 days

0

920

Subaru Robin 052-10500-12

BANJO

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$16.99

$

Usually ships in 2-12 days

0

950

Subaru Robin 056-11100-20

HOSE CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11.5DX8BX0.7T.

$2.99

$

Usually ships in 2-12 days

0
