E 125 BT - Weed Eater Edger, Electric

Edger, Electric

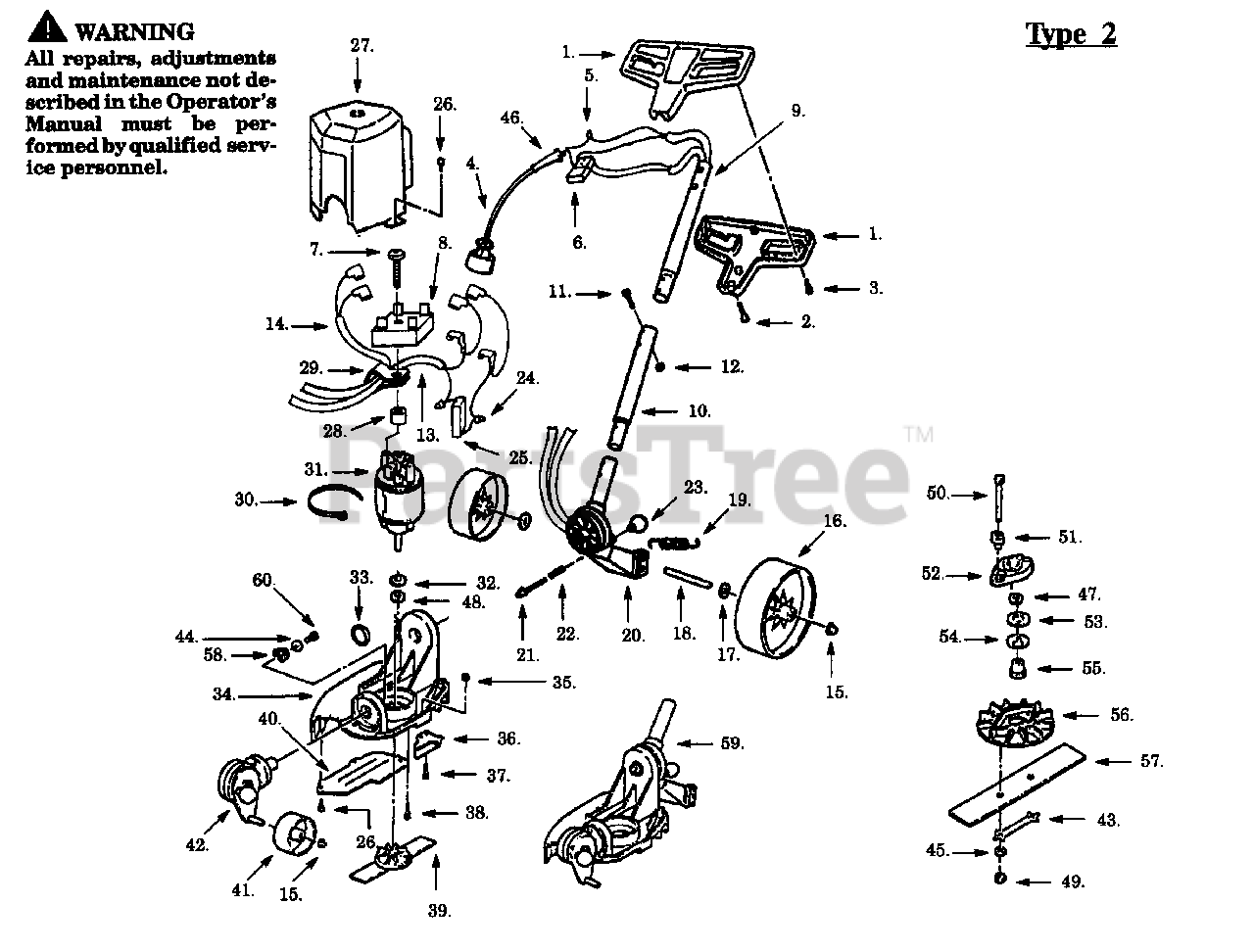

E 125 BT - Weed Eater Edger, Electric > Parts Diagrams (4) > TRIMMER ASSEMBLY - TYPE 2

  • Title
530402076

1

Handle Set

Part# 530402076

Note: (Incl. 1, 4 & 46) See Ser. Ref. 1

OEM Warranty Repair Part for Poulan

Not available

534790300

2

Screw

Part# 534790300

OEM Warranty Repair Part for Poulan

Not available

534790302

3

Screw

Part# 534790302

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

530401874

4

Power Cord

Part# 530401874

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $7.82

534253201

5

Wire Nut

Part# 534253201

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $1.11

534193004

6

Switch

Part# 534193004

OEM Warranty Repair Part for Poulan

Not available

534136402

7

Screw

Part# 534136402

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

530401569

8

Bridge

Part# 530401569

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $11.17

534838001

9

Upper Tube

Part# 534838001

OEM Warranty Repair Part for Poulan

Not available

534838101

10

Lower Tube

Part# 534838101

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $12.29

534774701

11

Screw

Part# 534774701

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534828300

12

Locknut

Part# 534828300

OEM Warranty Repair Part for Poulan

Not available

530401597

13

Harness Ass'y. (Red/White)

Part# 530401597

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

530401596

14

Harness Ass'y. (Blue/White)

Part# 530401596

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $5.58

534121000

15

Push Nut

Part# 534121000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534236800

16

Rear Wheel

Part# 534236800

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $5.58

534137900

17

Washer

Part# 534137900

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.42

534137701

18

Rear Axle

Part# 534137701

OEM Warranty Repair Part for Poulan

Not available

534121300

19

Spring

Part# 534121300

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.42

534137505

20

Rear Swivel

Part# 534137505

OEM Warranty Repair Part for Poulan

Not available

534700002

21

Pin-Index

Part# 534700002

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

534710000

22

Swivel Lock Spring

Part# 534710000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.42

534720001

23

Knob

Part# 534720001

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.42

534561000

24

Terminal Cap

Part# 534561000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534134500

25

Resister

Part# 534134500

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

534826800

26

Screw

Part# 534826800

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.23

534824929

27

Motor Cover

Part# 534824929

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $14.52

530027689

28

Spacer

Part# 530027689

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

530401567

29

Clip

Part# 530401567

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534134700

30

Tie Wrap

Part# 534134700

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $1.11

534961801

31

Motor Ass'y., E125BT

Part# 534961801

OEM Warranty Repair Part for Poulan

Not available

530400591

31

Motor Ass'y., E150BT

Part# 530400591

OEM Warranty Repair Part for Poulan

Not available

534938100

32

Washer

Part# 534938100

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534780000

33

Retaining Ring

Part# 534780000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.42

534130529

34

Deck Frame

Part# 534130529

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $16.76

534315300

35

Locknut

Part# 534315300

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534830000

36

Blade Guide

Part# 534830000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

534315200

37

Screw

Part# 534315200

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.42

534136401

38

Screw

Part# 534136401

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534135205

39

Blade Ass'y.

Part# 534135205

OEM Warranty Repair Part for Poulan

Not available

534131515

40

Side Guard Plate

Part# 534131515

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

534240003

41

Front Wheel

Part# 534240003

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

534130705

42

Front Swivel Ass'y

Part# 534130705

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $25.70

534135700

43

Lock Strap

Part# 534135700

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.23

534778000

44

Washer

Part# 534778000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $1.11

534136600

45

Lockwasher

Part# 534136600

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.23

534758000

47

Washer

Part# 534758000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534757900

48

Washer

Part# 534757900

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534136200

49

Nut

Part# 534136200

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.23

534135901

50

Screw

Part# 534135901

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

530401512

51

Insulating Sleeve

Part# 530401512

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534135410

52

Clutch Plate

Part# 534135410

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

534136300

53

Washer

Part# 534136300

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534238900

54

Spring Washer

Part# 534238900

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

534135500

55

Clutch Sleeve

Part# 534135500

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

534135305

56

Fan

Part# 534135305

OEM Warranty Repair Part for Poulan

Not available

534205300

57

Blade

Part# 534205300

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $13.41

534120500

58

Front Swivel Spring

Part# 534120500

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.42

534135129

59

Frame Ass'y

Part# 534135129

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $103.96

534778000

60

Screw

Part# 534778000

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $1.11

530082545

Operator Manual

Part# 530082545

Note: Not Shown.

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

530400485

Carton Contents Bag

Part# 530400485

Note: Not Shown.

OEM Warranty Repair Part for Poulan

Not available
