E 150 (CMXGRAM1130049) (33AA27JD793) - Craftsman Rear-Engine Riding Mower, Electric (2020) Fender Parts Diagram

Rear-Engine Riding Mower, Electric

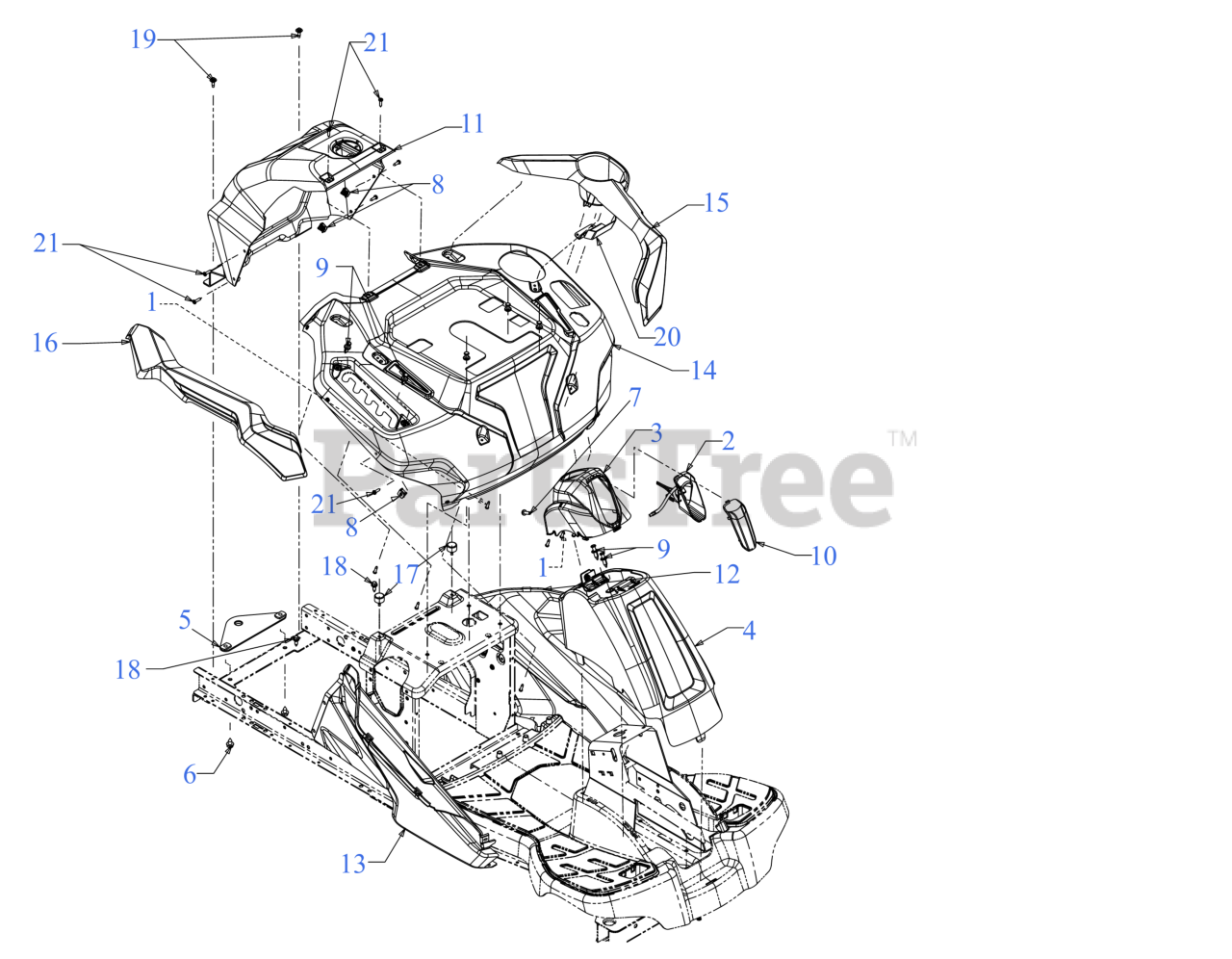

Fender Parts Diagram

  • Title

1

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

2

MTD 925-05119

LED HEADLIGHT HARNESS ASSEMBLY

$63.99

$

In Stock, only 2 left!

0

3

MTD 631-06580

COLUMN CAP (LIBERTY RED)

$39.99

$

Usually ships in 3-6 days

0

4

MTD 631-06581

COLUMN COVER (LIBERTY RED)

$47.99

$

Usually ships in 3-6 days

0

5

MTD 683-05377

HITCH PLATE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

683-05377-0637

MTD 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$25.99

$

In Stock, only 2 left!

0

$24.99

$

Usually ships in 3-6 days

0

6

MTD 710-0604A

SCREW 5/16-18 x .625

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-0924

SCREW 1/4-20X.75

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-05861

U-NUT #10-16

$2.49

$

Usually ships in 3-6 days

0

9

MTD 728-0199

PLASTIC RIVET

$4.99

$

In Stock, only 3 left!

0

10

MTD 731-11484

LED HEADLIGHT LENS

$11.99

$

Usually ships in 3-6 days

0

11

MTD 731-13381

REAR BODY COVER

$384.99

$

Usually ships in 3-6 days

0

12

MTD 731-13383A

BODY PANEL LH ECR12

$214.99

$

Usually ships in 3-6 days

0

13

MTD 731-13384A

BODY PANEL RH ECR12

$214.99

$

Usually ships in 3-6 days

0

14

MTD 731-13409

FENDER

$411.99

$

Usually ships in 3-6 days

0

15

MTD 731-17691

FENDER TRIM (LH) (LIBERTY RED)

$28.99

$

Usually ships in 3-6 days

0

16

MTD 731-17692

FENDER TRIM (RH) (LIBERTY RED)

$18.99

$

Usually ships in 3-6 days

0

17

MTD 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 13

0

18

MTD 738-04184A

SHOULDER SCREW

$7.49

$

In Stock, Qty 20+

0

19

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

20

MTD 783-09735

FENDER BRACKET

$21.99

$

Usually ships in 3-6 days

0

21

MTD 791-181930

SCREW:10-6 x .75

$7.49

$

In Stock, only 2 left!

0
