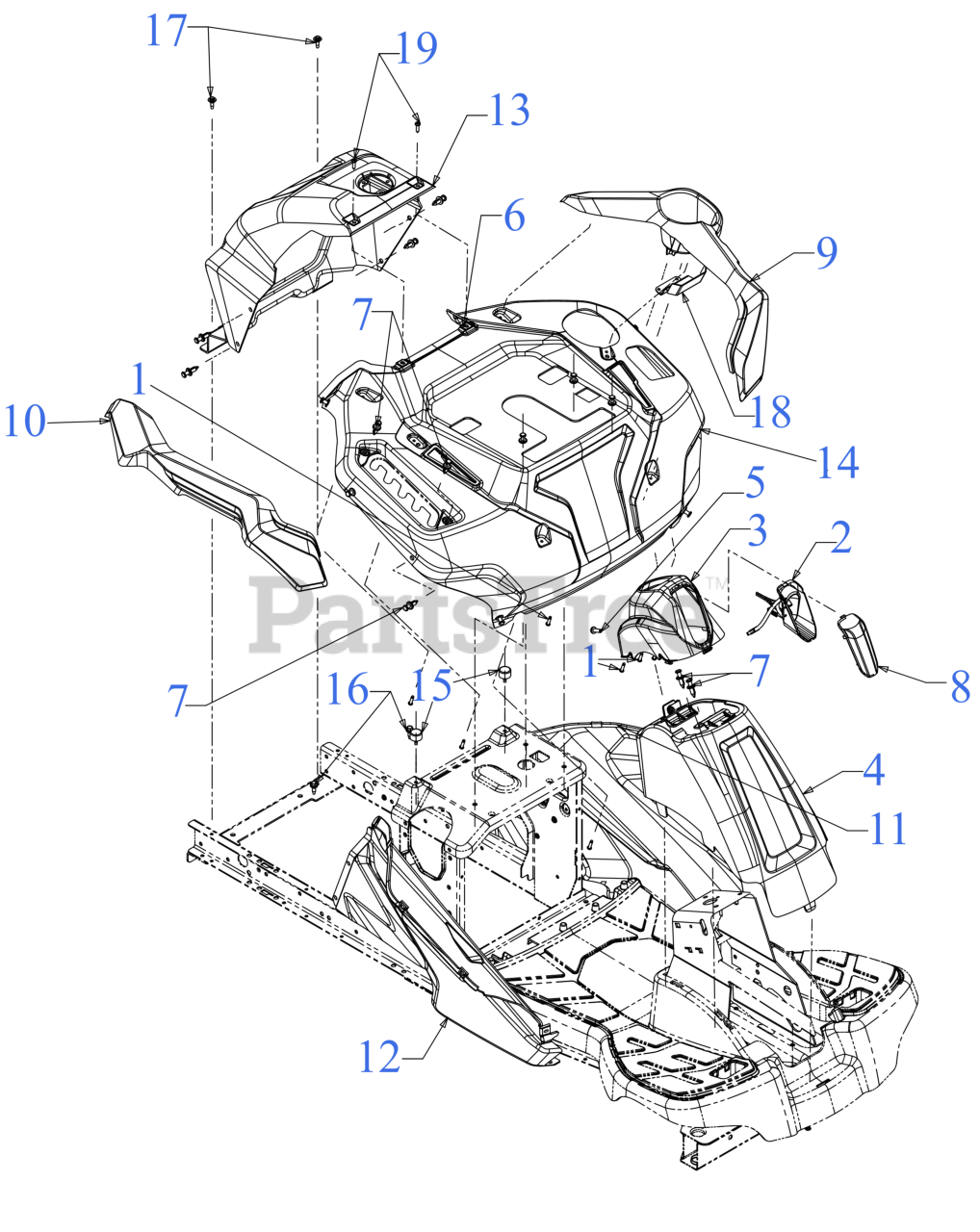

E 150 (CMXGRAM1130049) (33BA27JD793) - Craftsman Rear-Engine Riding Mower, Electric (2021) Fender Parts Diagram

Rear-Engine Riding Mower, Electric

Fender Parts Diagram

  • Title

1

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 16

0

2

MTD 925-05119

LED HEADLIGHT HARNESS ASSEMBLY

$60.99

$

In Stock, only 1 left!

0

3

MTD 631-06580

COLUMN CAP (LIBERTY RED)

$37.99

$

Usually ships in 3-6 days

0

4

MTD 631-06581

COLUMN COVER (LIBERTY RED)

$44.99

$

Usually ships in 3-6 days

0

4

MTD 712-04092

U NUT

$5.99

$

In Stock, only 2 left!

0

5

MTD 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-05861

U-NUT #10-16

$2.49

$

Usually ships in 3-6 days

0

7

MTD 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-11484

LED HEADLIGHT LENS

$10.99

$

Usually ships in 3-6 days

0

9

MTD 731-17691

FENDER TRIM (LH) (LIBERTY RED)

$26.99

$

Usually ships in 3-6 days

0

10

MTD 731-17692

FENDER TRIM (RH) (LIBERTY RED)

$17.99

$

Usually ships in 3-6 days

0

11

MTD 731-25151

BODY PANEL (LH)

$112.99

$

Usually ships in 3-6 days

0

12

MTD 731-25152

BODY PANEL (RH)

$112.99

$

Usually ships in 3-6 days

0

13

MTD 731-25153

BODY COVER (REAR)

Note: (Models Built 8/1/21 & Before)

$224.99

$

Usually ships in 3-6 days

0

13

MTD 731-26297

BODY COVER (REAR)

Note: (Models Built 8/1/21 & After)

$217.99

$

Usually ships in 3-6 days

0

14

MTD 731-25154

FENDER

$238.99

$

Usually ships in 3-6 days

0

15

MTD 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 15

0

16

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 20+

0

17

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

18

MTD 783-09735

FENDER BRACKET

$19.99

$

Usually ships in 3-6 days

0

19

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, Qty 8

0

MTD 683-05377

HITCH PLATE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$24.99

$

In Stock, only 4 left!

0

$22.99

$

Usually ships in 3-6 days

0

MTD 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0
