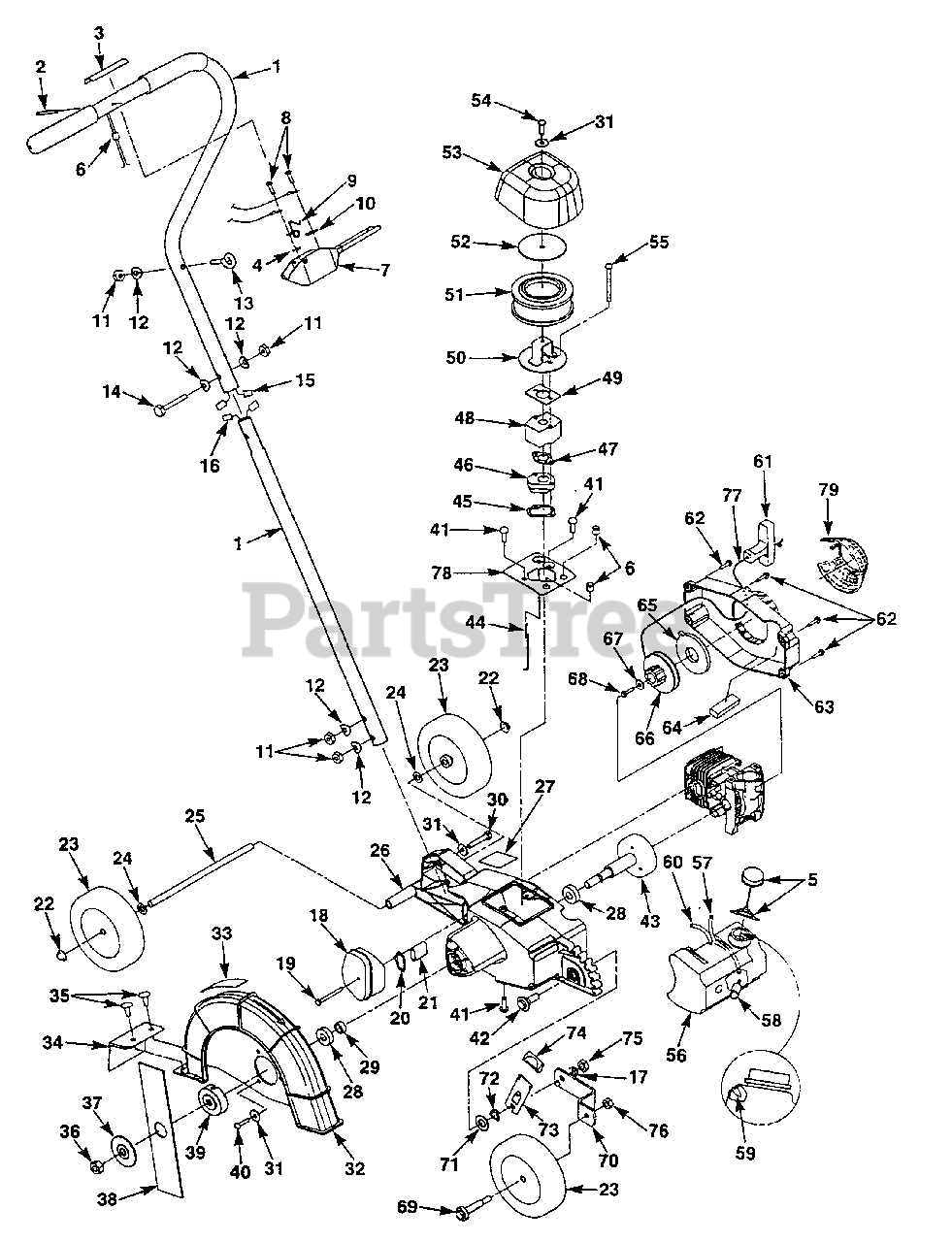

E 200 (UT-22088-A) - Homelite Edger Handle, Starter And Cutter Parts Diagram

Edger

Handle, Starter And Cutter Parts Diagram

  • Title

1

Homelite A04356

HANDLE ASSEMBLY

Note: Includes Item Nos. 2 & 3.

$

$

Not available

2

Homelite 04196

PIN-Roll
(Superseded to 70763)

$

$

Not available

3

Homelite 04350

DECAL-Operation

$

$

Not available

4

Homelite 04462

WASHER-Flat

$4.49

$

Usually ships in 3-7 days

0

5

Homelite A97230A

CAP & RETAINER

$

$

Not available

6

Homelite 03872

BUSHING-Flange

$

$

Not available

7

Homelite 03862

BAIL-O.P.C.

$

$

Not available

8

Homelite 82546

SCREW-Thread Form (8-16 x 5/8")
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 03861

SWITCH-O.P.C.

$

$

Not available

10

Homelite 98791

BRACKET-Retaining

$

$

Not available

11

Homelite 04306

NUT-Hex C/Lock (1/4-20)

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 03600

WASHER-Curved

$

$

Not available

13

Homelite 04299

EYEBOLT

$

$

Not available

14

Homelite 80388

SCREW-Cap Hex Hd.(1/4-20 x 1 1/4")

$

$

Not available

15

Homelite A03859A

HARNESS-Wire

$

$

Currently unavailable

16

Homelite A03975A

HARNESS-Wire

$

$

Not available

17

Homelite 83018

WASHER-Lock

$

$

Not available

18

Homelite A02459

MUFFLER

$

$

Currently unavailable

19

Homelite 93460

SCREW-Sems Hex Hd.

$

$

Not available

20

Homelite 93801

GASKET-Muffler

$

$

Not available

21

Homelite 02458

SCREEN-Muffler

$

$

Not available

22

Homelite 03960

NUT-Push 3/8"

$

$

Not available

23

Homelite 03840

TIRE-(5")

$

$

Not available

24

Homelite 84010

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

25

Homelite 03841

AXLE-Rear

$

$

Not available

26

Homelite A04352

ENGINE-HOUSING ASSY

Note: Includes Item Nos. 27-29.

$

$

Currently unavailable

27

Homelite 04339

DECAL-Warning

$

$

Not available

28

Homelite 98798

BEARING-Ball
(Superseded to UP05589)

$8.49

$

Usually ships in 3-7 days

0

29

Homelite 01012

SPACER

$

$

Not available

30

Homelite 80295

SCREW-Cap Hex Hd.(1/4-20 x 2")

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 84006

WASHER-Flat (1/4)

$

$

Not available

32

Homelite A04351

BLADE GUARD ASSEMBLY

Note: Includes Item Nos. 33 & 34.

$

$

Currently unavailable

33

Homelite 03871

DECAL-Warning
(Superseded to UP04532)

$

$

Not available

34

Homelite 03857

FLAT-Drag

$

$

Not available

35

Homelite 03873

RATCHET FASTENER
(Superseded to 03873A)

$

$

Not available

36

Homelite 03874

NUT-Hex (L.H.) (7/16-20)

$

$

Not available

37

Homelite 98836

WASHER-Cupped

$10.99

$

Usually ships in 3-7 days

0

38

Homelite D04359

BLADE-(2" x 9")

$

$

Currently unavailable

39

Homelite 038681

WASHER-FLANGED
(Superseded to 038681A)

$

$

Not available

40

Homelite 82537

SCREW-Thread Form.(10-24 x 7/8)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 82538

SCREW-Thd. Form (10-24 x 3/4)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 04248

BOLT-Shoulder

$

$

Not available

43

Homelite A03865

DRUM-Clutch

$

$

Currently unavailable

44

Homelite 03851

LINK-Air Vane

$

$

Not available

45

Homelite 69143

GASKET-Heat Dam

$

$

Not available

46

Homelite A69373B

HEAT DAM & REED

$

$

Not available

47

Homelite 65016

GASKET-Carburetor

$

$

Not available

48

Homelite A04657

CARBURETOR-Walbro

$

$

Not available

49

Homelite 04325

GASKET-Carburetor

$

$

Not available

50

Homelite 03890

PLATE-Filter

$

$

Not available

51

Homelite 03847

AIR FILTER

$

$

Not available

52

Homelite 04145

WASHER-Filter
(Superseded to 04145B)

$

$

Not available

53

Homelite 038891

COVER-Air Filter

$

$

Not available

54

Homelite 825551

SCREW-Truss Hd. (10-24 x 3/4")
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

55

Homelite 88057

SCREW-Hex Sems (10-24 x 2")
(Superseded to UP05817)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite A03850

FUEL TANK ASSEMBLY

Note: Includes Item Nos. 57-61.

$

$

Currently unavailable

57

Homelite 9477222

TUBING-Rubber

$

$

Not available

58

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

59

Homelite 98819

VALVE-Duck Bill

$

$

Not available

60

Homelite 9477238

TUBING-Rubber

$

$

Not available

61

Homelite 02264

GRIP-Starter
(Superseded to UP03832)

$

$

Not available

62

Homelite 82536

SCREW-Thd. Form (#8 x 3/4")

$

$

Not available

63

Homelite A04353

HOUSING-Starter
(Superseded to A04353A)

Note: Includes Item Nos. 64 & 65.

$

$

Currently unavailable

64

Homelite 69443

FILTER

$

$

Not available

65

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

66

Homelite 97768A

PULLEY-Starter

$

$

Currently unavailable

67

Homelite 94062

WASHER-Retaining

$

$

Not available

68

Homelite 82563

SCREW-Thd. Form (10-24 x .75)

$1.49

$

In Stock, Qty 6

0

69

Homelite 03875

BOLT-Shoulder

$

$

Not available

70

Homelite 03843

ARM-Wheel Support

$

$

Not available

71

Homelite 841051

WASHER-Flat

$

$

Not available

72

Homelite 01033

WASHER-Belleville

$

$

Not available

73

Homelite A038441

SPRING-Index

$

$

Currently unavailable

74

Homelite JA336623

KNOB-Index Spring
(Superseded to UP06697)

$

$

Not available

75

Homelite 04301

NUT-Hex Lock

$

$

Not available

76

Homelite 04354

NUT-Hex W/Washer

$

$

Not available

77

Homelite 9789904

ROPE-Starter

$

$

Not available

78

Homelite 03858

COVER-Engine Housing

$

$

Not available

79

Homelite 03648

SCREEN-Starter Housing

$

$

Not available

?80

Homelite 04340

GOGGLE-Safety

Note: (Not Shown)

$

$

Not available
