E 2811525BVE (2691382-01) - Snapper 28" Rear-Engine Riding Mower, 11.5hp Main Case Assembly Parts Diagram

28" Rear-Engine Riding Mower, 11.5hp

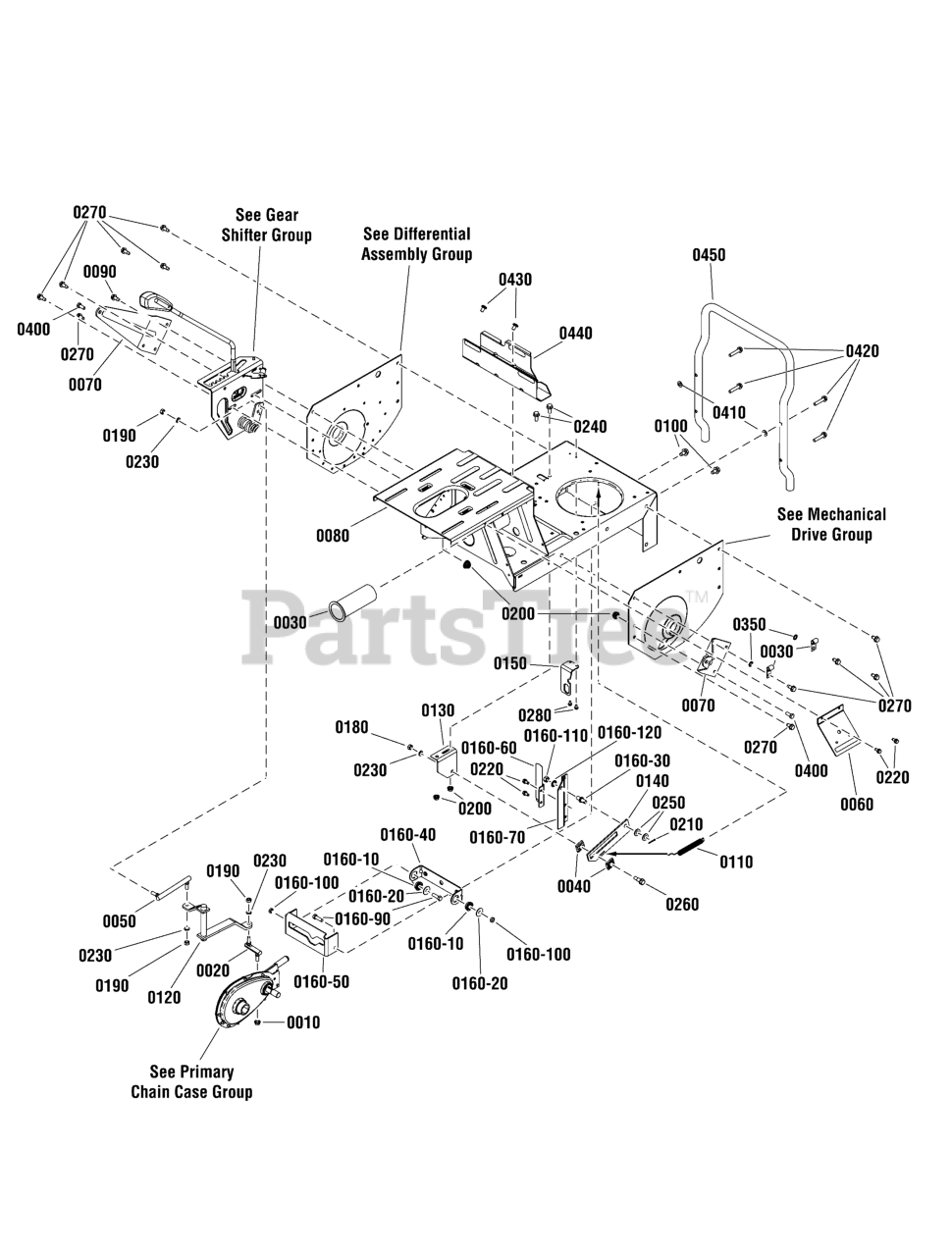

Main Case Assembly Parts Diagram

  • Title

0010

Snapper 703123

NUT, Hex Flange, Serrated, 5/16-24, G5

$3.49

$

Usually ships in 2-12 days

0

0020

Snapper 7011018

SHIFT LINK, Short (5/16-24 thread)
(Superseded to 7011018YP)

$18.99

$

Usually ships in 2-12 days

0

0030

Snapper 7074650YP

BUSHING, Pivot, 1.89X5.88X.1

$12.99

$

In Stock, Qty 14

0

0040

Snapper 7014663

SLIDE-HALF
(Superseded to 7014663YP)

$4.49

$

In Stock, only 2 left!

0

0050

Snapper 7023676

SHIFT LINK, Long (5/16-24 both ends)
(Superseded to 7023676YP)

$34.99

$

In Stock, only 2 left!

0

0060

Snapper 7033470D

PLATE, THROTTLE, RED

$

$

Currently unavailable

0070

Snapper 7034299D

WING, REAR, RED

$

$

Currently unavailable

0080

Snapper 7053697D

WELD, STD MAINCASE, RER, RED

$

$

Currently unavailable

0090

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

0100

Snapper 703950

SCREW, Hex Washer Head, Thread Roll, 5/16-18 X 5/8

$5.49

$

In Stock, Qty 6

0

0110

Snapper 7013885

SPRING, Clutch & Brake
(Superseded to 7013885YP)

$5.99

$

In Stock, Qty 10

0

0120

Snapper 7041384CJ

WELD, SHIFT ARM ECOAT, ECOAT EPOXY

$

$

Currently unavailable

0130

Snapper 7047189CJ

BRKT, DRIVE SUPPORT BLACK

$

$

Currently unavailable

0140

Snapper 7047190CJ

SLIDE, DRIVE SUPPORT BLACK

$

$

Currently unavailable

0150

Snapper 7073735CJ

BRKT, SWITCH BLACK

$

$

Currently unavailable

0160-10

Snapper 7011048

BEARING, YOKE (RIGHT HAND)
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

0160-20

Snapper 7011763

WASHER, Fender, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, Qty 6

0

0160-30

Snapper 7015464

STUD, 3/8-24 Thread
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

0160-40

Snapper 7033291

COLLAR, Yoke
(Superseded to 7033291YP)

$56.99

$

In Stock, only 1 left!

0

0160-50

Snapper 7046162

LIFT, Yoke
(Superseded to 7046162BMYP)

$22.99

$

In Stock, Qty 7

0

0160-60

Snapper 7059068

ASSEMBLY, Leaf Spring
(Superseded to 7600141YP)

$59.99

$

Usually ships in 2-12 days

0

0160-70

Snapper 7073733

ARM, Yoke
(Superseded to 7073733YP)

$9.49

$

Usually ships in 2-12 days

0

0160-90

Snapper 703301

BOLT, Hex, 5/16-24 x 1.

$3.99

$

In Stock, Qty 6

0

0160-100

Snapper 703459

NUT, 5/16-24, Hex Crown Lock,GR C, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0160-110

Snapper 703895

NUT, Hex, 3/8-24

$4.49

$

In Stock, Qty 8

0

0160-120

Snapper 703930

WASHER, 3/8 Internal Tooth Lock, BZ

$4.49

$

In Stock, Qty 7

0

0180

Snapper 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0200

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0210

Snapper 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0220

Snapper 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0230

Snapper 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0240

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0250

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 14

0

0260

Snapper 703428

BOLT, 5/16-18 x .530 Shoulder, GR 2, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0270

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 18

0

0280

Snapper 704061

SCREW, 10-32 x 1/4 Hex Washer Self-Tap, BZ

$3.99

$

In Stock, Qty 20+

0

0290

Snapper 703251

Nut, Hex Centerlock,1/4-20, GR5

$4.99

$

In Stock, Qty 20+

0

0300

Snapper 703925

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$4.49

$

In Stock, Qty 6

0

0340

Snapper 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 12

0

0400

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0410

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0420

Snapper 704318

SCREW, Hex Washer Self-Tap, 5/16-18 x 1-1/2

$4.49

$

In Stock, only 3 left!

0

0430

Snapper 703932

SCREW, 5/16-18 x 1/2" Torx Pan Head

$4.99

$

In Stock, only 1 left!

0

0440

Snapper 7033377BMYP

BRACKET, Fuel Tank
(Superseded to 84003084)

$42.99

$

Usually ships in 2-12 days

0

0450

Snapper 7036367BMYP

BUMPER, Rear, Black

$158.99

$

Usually ships in 2-12 days

0
