E 281320BE (84589) - Snapper 28" Rear-Engine Riding Mower, 13hp Blade Stop Pedals Parts Diagram

28" Rear-Engine Riding Mower, 13hp

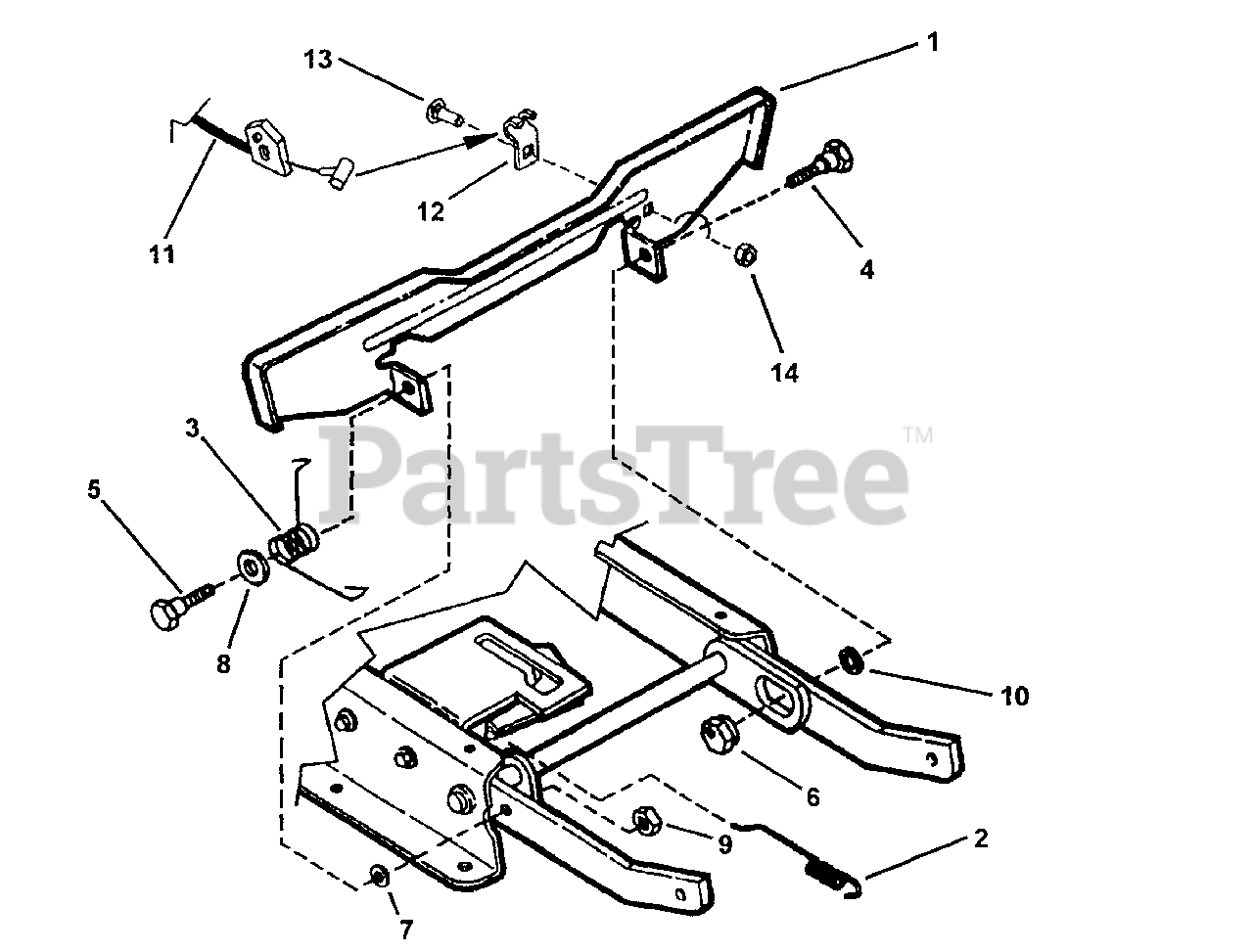

Blade Stop Pedals Parts Diagram

  • Title

1

Snapper 7073267

PEDAL, Blade Stop Control
(Superseded to 7073267YP)

$45.99

$

Usually ships in 2-12 days

0

2

Snapper 7035669

SPRING, Latching
(Superseded to 7035669YP)

$8.49

$

In Stock, only 3 left!

0

3

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 3 left!

0

4

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

5

Snapper 7015446

BOLT, 3/8-24 x 9/16" Shoulder
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

In Stock, only 1 left!

0

7

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 17

0

9

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 13

0

10

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 8

0

11

Snapper 7073216

CABLE, No Reverse In Mow
(Superseded to 7073216YP)

$32.99

$

In Stock, only 1 left!

0

12

Snapper 7073217

CLIP, Cable
(Superseded to 7073217YP)

$5.99

$

In Stock, only 1 left!

0

13

Snapper 7091530

BOLT, 1/4-20 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 91776

$3.99

$

In Stock, Qty 5

0

14

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0
