E 281320BE (84589) - Snapper 28" Rear-Engine Riding Mower, 13hp Drive Disc Assembly Parts Diagram
28" Rear-Engine Riding Mower, 13hp

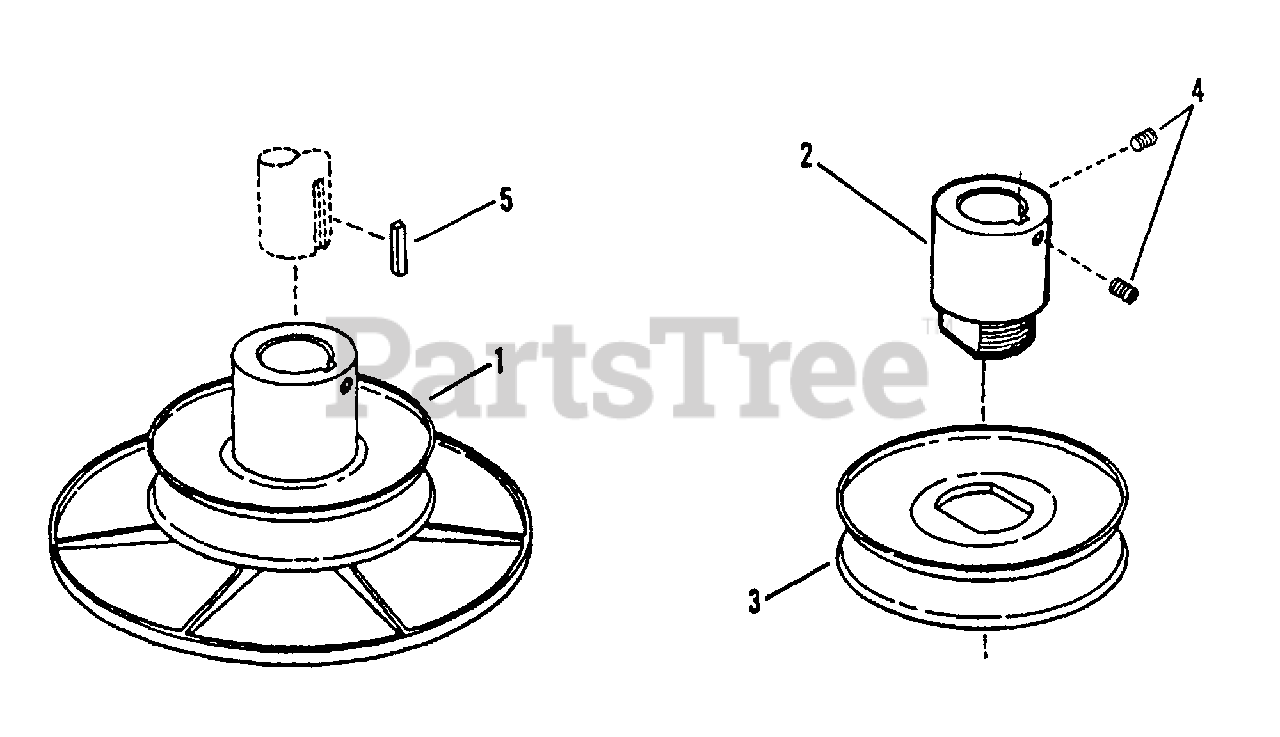

Drive Disc Assembly Parts Diagram
Snapper 7074187
ASSEMBLY, 5.18" O.D. Drive Disc
(Superseded to 7074187YP)
Note: Was 53708 (33" Model); (Includes Items 2 Thru 4)
$155.99
$
In Stock, only 1 left!
Snapper 7072658
ASSEMBLY, 6" O.D. Drive Disc
(Superseded to 7072658YP)
Note: Was 53709 (28" Model); (Includes Items 2 Thru 4)
$125.99
$
In Stock, only 3 left!
Snapper 7029112
HUB
$
$
Not available
$65.99
$
In Stock, only 3 left!
$25.99
$
Usually ships in 2-12 days
$3.49
$
In Stock, Qty 10
$4.99
$
In Stock, Qty 8
