E 281320BE (84589) - Snapper 28" Rear-Engine Riding Mower, 13hp Throttle Control Parts Diagram

28" Rear-Engine Riding Mower, 13hp

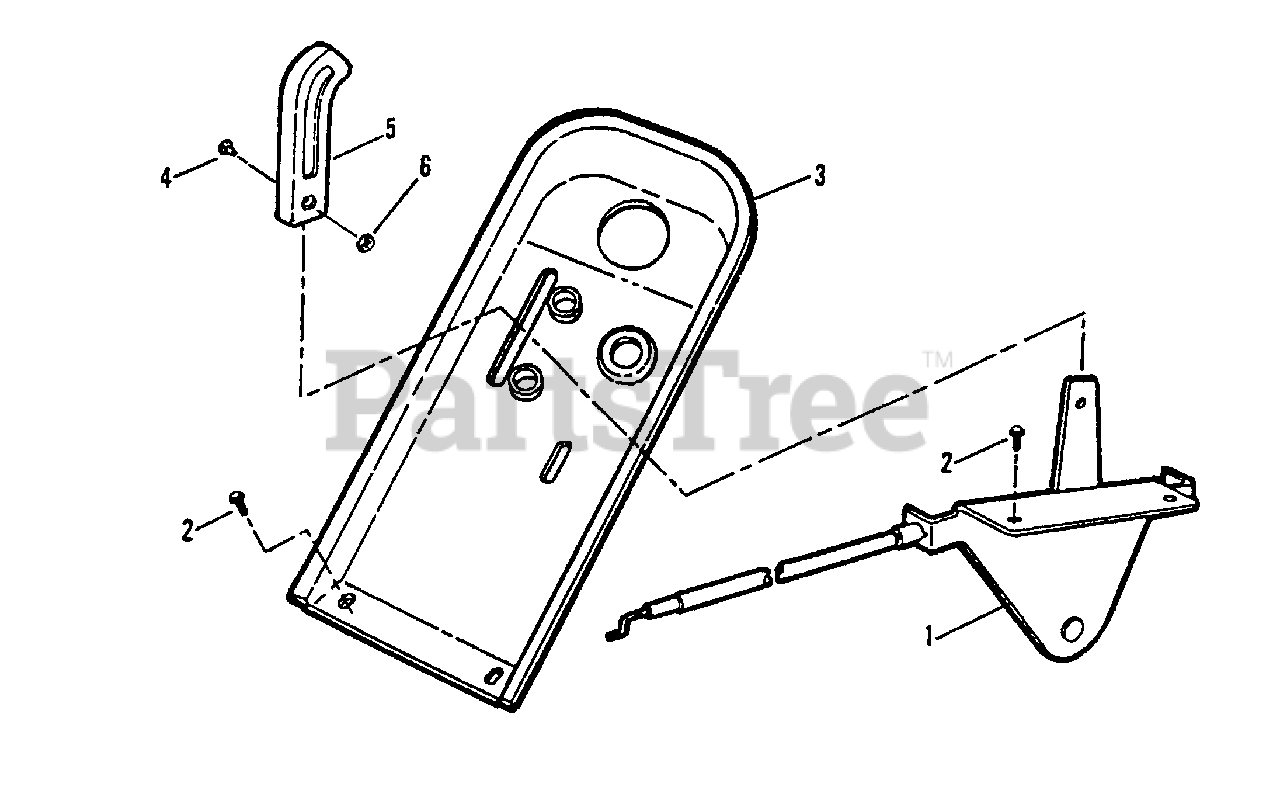

Throttle Control Parts Diagram

  • Title

1

Snapper 7024155

CONTROL, Throttle 44.1" Conduit
(Superseded to 7024155YP)

Note: (Briggs Engines)

$36.99

$

In Stock, only 1 left!

0

1

Snapper 7022483

CONTROL, Throttle 48.6" Conduit
(Superseded to 7022483YP)

Note: (Kohler Engines)

$35.99

$

In Stock, only 3 left!

0

2

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

3

Snapper 7023665

COVER, Dash Panel (Electric Start)

$

$

Not available

4

Snapper 7091017

SCREW, #8-32 x 3/8" Cross Recessed Fillister Head
(Superseded to 7091017YP)

$3.99

$

In Stock, Qty 5

0

5

Snapper 7023655

KNOB, Throttle Control
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7091018

NUT, #8-32 Hex, Grade 2 or B
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 11

0
