E 2813524BVE (7800978-00) - Snapper 28" Rear-Engine Riding Mower, 13.5hp Differential Assembly Parts Diagram

28" Rear-Engine Riding Mower, 13.5hp

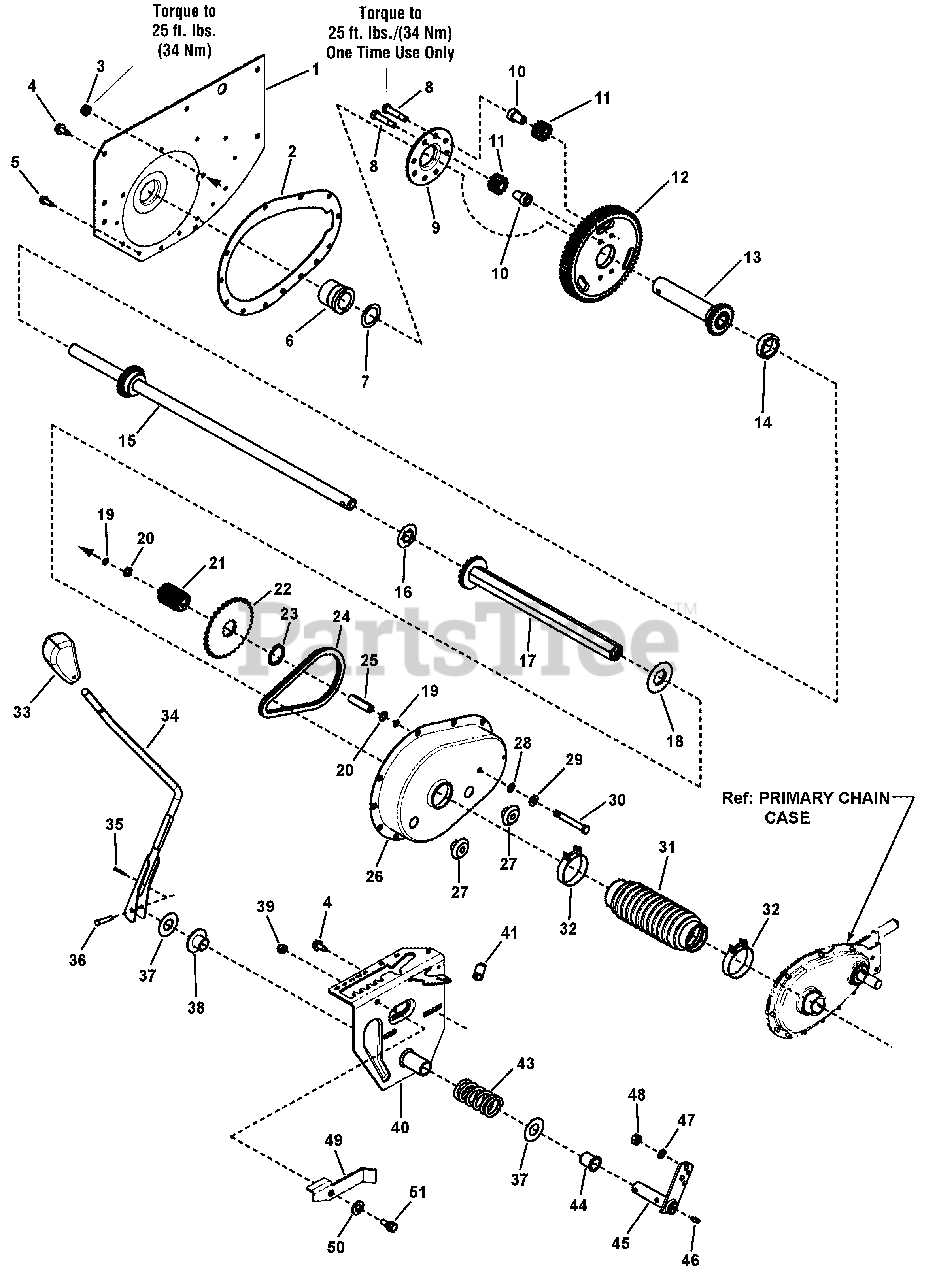

Differential Assembly Parts Diagram

  • Title

1

Snapper 7301301YP

FENDER, RH, 1.615 Hole, RER

$149.99

$

Usually ships in 2-12 days

0

2

Snapper 7028762YP

GASKET, Transmission Case

$24.99

$

In Stock, Qty 20+

0

3

Snapper 703123

NUT, 5/16-24, Serated Flange, Zinc/Clear, GR5

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 703949

SCREW, 5/16-18 X .625, Hex Washer Head, Thread Roll, Zinc/Clear

$3.99

$

In Stock, Qty 18

0

5

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7012296YP

BEARING, Axle, 1.126 ID, 1.626 OD, PM

$14.99

$

In Stock, Qty 20+

0

7

Snapper 7031079YP

WASHER, Thrust (1.37 ID, 1.625 OD)

$6.99

$

In Stock, Qty 20+

0

8

Snapper 7012333YP

BOLT, 5/16-24 x 1-5/8 Hex Nylock, G5, Black

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7038067YP

PLATE, Differential, Heat Treated (8 holes)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 7022115YP

SPACER, Pinion

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7021127YP

GEAR, Differential Pinion (12T, 12P)

$23.99

$

In Stock, Qty 12

0

12

Snapper 7021158YP

GEAR, 63 Tooth 10 Pitch (4 Hole)

$109.99

$

In Stock, only 3 left!

0

13

Snapper 7057398YP

ASSEMBLY, Short Axle, 23T
(Superseded to 7600137YP)

$95.99

$

In Stock, Qty 13

0

14

Snapper 7074431YP

SPACER, Differential (1.25 ID x .425 Wide)

$4.49

$

In Stock, Qty 11

0

15

Snapper 7075479YP

KIT, 23 Tooth Long Axle & Spacer (Includes 7047763 Axle & Spacer 7074431)

$136.99

$

Usually ships in 2-12 days

0

16

Snapper 7011072YP

WASHER, Thrust, (Hex Flanged)

$5.99

$

In Stock, Qty 20+

0

17

Snapper 7051584YP

ASSEMBLY, Drive Hex Tube 13.2 Long

$92.99

$

In Stock, only 1 left!

0

18

Snapper 7010988YP

WASHER, Nylon

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7011156YP

O-RING, 5/16"

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7011782YP

WASHER, 5/16 X 5/8 X .05, Belleville

$4.49

$

In Stock, Qty 19

0

21

Snapper 7200128YP

GEAR, 11 Tooth, 10 Pitch, PM

$14.99

$

In Stock, Qty 6

0

22

Snapper 7021129YP

SPROCKET, 34T, 3/8P

$20.99

$

In Stock, only 2 left!

0

23

Snapper 7010965YP

RING, 1-3/16 External Retaining

$4.49

$

In Stock, Qty 10

0

24

Snapper 7010941YP

CHAIN, 46 Pitch (#35 Endless)

$14.99

$

In Stock, Qty 14

0

25

Snapper 7021128YP

SPACER, .50 OD X .031 ID X 1.75 Long, Heat Treated

$7.49

$

In Stock, only 3 left!

0

26

Snapper 7037279YP

CASE, Transmission

$79.99

$

Usually ships in 2-12 days

0

27

Snapper 7011024YP

PLUG, 3/4"

$2.99

$

In Stock, Qty 19

0

28

Snapper 703138

WASHER, External Tooth, 5/16

$3.99

$

In Stock, Qty 10

0

29

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7011042YP

SCREW, 5/16-24 x 2-5/8 Hex Head Cap, ZP

$4.49

$

In Stock, only 3 left!

0

31

Snapper 7075115YP

BOOT, Rear Axle

$10.99

$

In Stock, Qty 20+

0

32

Snapper 7012332YP

CLAMP, 2 ID

$6.99

$

In Stock, only 3 left!

0

33

Snapper 7023656YP

GRIP, Shift Handle

$5.99

$

In Stock, Qty 18

0

34

Snapper 7059212YP

WELDMENT, Shift Handle
(Superseded to 7059212DYP)

$56.99

$

In Stock, Qty 10

0

35

Snapper 703312

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7023914YP

PIN, .25 X 1.25, Clevis

$

$

Not available

38

Snapper 7019245YP

BUSHING, 3/4 ID, 1.62 Flange (Nylon)

$4.49

$

In Stock, Qty 14

0

37

Snapper 7031036YP

WASHER, Thrust .76 ID, 1.62 OD, .025 Thick

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 703902

NUT, 5/16-18, Hex Nylock, Zinc/Clear

$3.99

$

In Stock, Qty 12

0

40

Snapper 7600139YP

SPEED ADJUSTMENT LATCH ASSY.

$140.99

$

Usually ships in 2-12 days

0

41

Snapper 7026292YP

SPRING

$11.99

$

In Stock, only 4 left!

0

43

Snapper 7010754YP

SPRING, Shift Detent

$6.99

$

In Stock, only 2 left!

0

44

Snapper 7019246YP

BUSHING, 3/4 ID, 1 Flange (Nylon)

$4.49

$

Usually ships in 2-12 days

0

45

Snapper 7043201YP

WELDMENT, Shift Arm
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 1 left!

0

46

Snapper 7010817SM

FITTING, Lube (Straight press fit for .187 hole, n

$4.49

$

In Stock, only 2 left!

0

47

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

48

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7073289YP

LEVER, Over-Ride

$7.49

$

Usually ships in 2-12 days

0

50

Snapper 703183

WASHER, .922 X .065 X .065, Flat, Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

51

Snapper 703839

BOLT, 5/16-18 X .750, Hex Washer Head Shoulder, Zinc/Clear

$5.49

$

In Stock, Qty 5

0

52

Snapper 7061017YP

GREASE, 00" (Not Shown)

$

$

Not available

53

Snapper 7600229YP

KIT, Differential Assembly (Not Shown)

$1049.99

$

Usually ships in 2-12 days

0

54

Snapper 7060412YP

KIT, Long & Short Axle (Includes items 13, 14, & 15)

$237.99

$

Usually ships in 2-12 days

0
