E 2813524BVE (7800978-00) - Snapper 28" Rear-Engine Riding Mower, 13.5hp Main Case, LH Fender & Yoke Lift Group Parts Diagram

28" Rear-Engine Riding Mower, 13.5hp

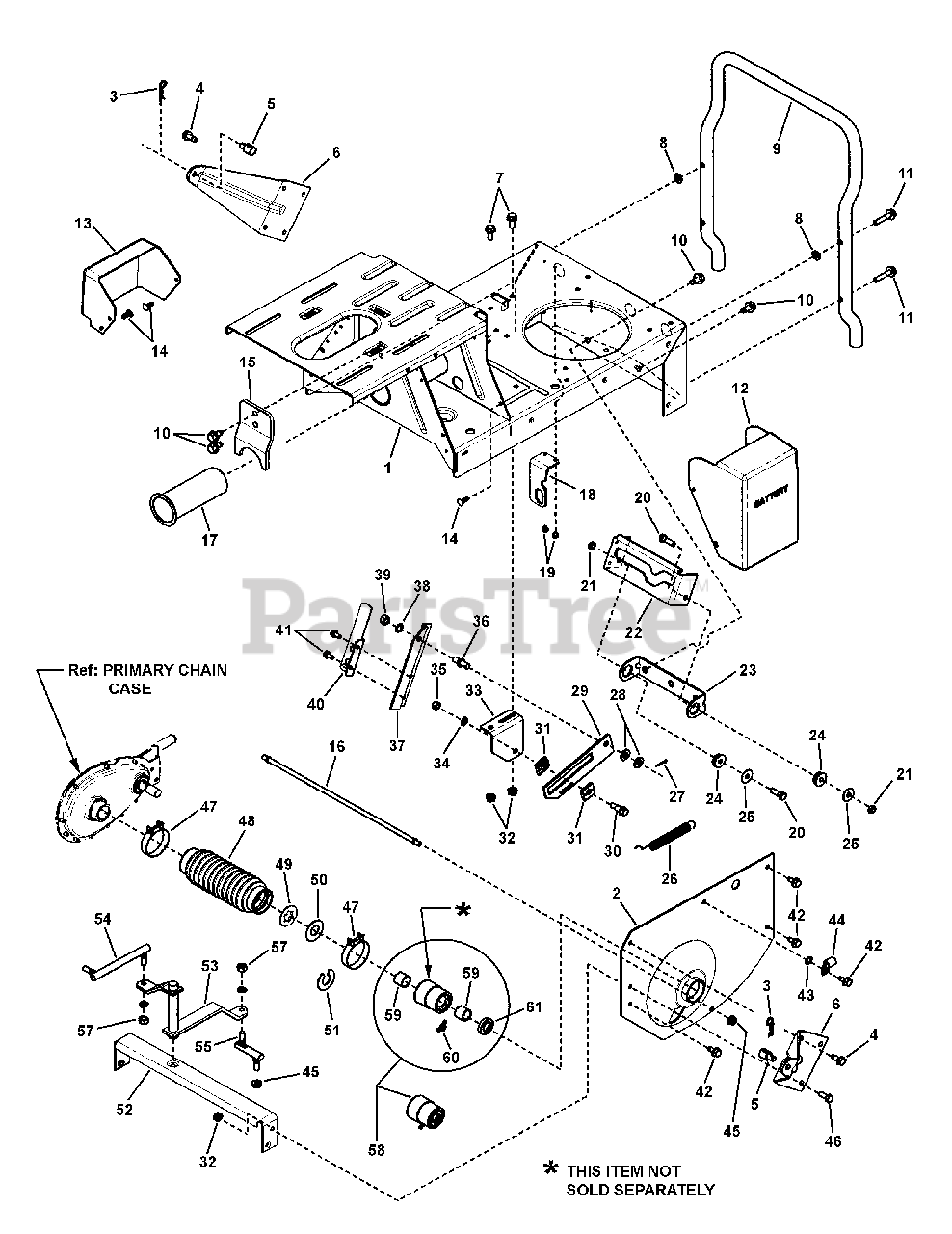

Main Case, LH Fender & Yoke Lift Group Parts Diagram

  • Title

1

Snapper 7053697DYP

WELDMENT, Main Case (Standard), Red

$

$

Currently unavailable

2

Snapper 7301302YP

FENDER, 1.625 ID Hole, LH, RER

$

$

Not available

3

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7090793YP

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap

$3.49

$

In Stock, only 3 left!

0

5

Snapper 7028200SM

SWIVEL, Adjustable, 5/16-18+.109 hole

$13.99

$

In Stock, only 1 left!

0

6

Snapper 7034299DYP

WING, Rear, Red

$

$

Currently unavailable

7

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

8

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7036367BMYP

BUMPER, Rear, Black

$158.99

$

Usually ships in 2-12 days

0

10

Snapper 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 704318

SCREW, Hex Washer Self-Tap, 5/16-18 x 1-1/2

$4.49

$

In Stock, only 3 left!

0

12

Snapper 7028990YP

COVER, Battery

$34.99

$

In Stock, only 4 left!

0

13

Snapper 7073268YP

COVER, Solenoid

$20.99

$

In Stock, only 2 left!

0

14

Snapper 7091272YP

FASTENER, 1/4 x 3/4 Ratchet

$3.99

$

In Stock, Qty 11

0

15

Snapper 7074210DYP

BRACKET, Belt Adjuster, Red

$

$

Currently unavailable

16

Snapper 7011070YP

TIE ROD, (5/16-24 thread- both ends)

$20.99

$

In Stock, only 1 left!

0

17

Snapper 7074650YP

BUSHING, Pivot, 1.89X5.88X.1

$12.99

$

In Stock, Qty 14

0

18

Snapper 7073735BMYP

BRACKET, Switch, Black

$

$

Currently unavailable

19

Snapper 703967

SCREW, #10-32 x 3/8, Torx Hex Washer Head Self-Tap, ZC/CL

$3.49

$

In Stock, only 3 left!

0

20

Snapper 703301

SCREW, 5/16-24 x 1 Hex Head Cap, GR 5, BZ

$3.99

$

In Stock, Qty 6

0

21

Snapper 703459

NUT, 5/16-24, Hex Crown Lock,GR C, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7046162YP

YOKE
(Superseded to 7046162BMYP)

$22.99

$

In Stock, Qty 7

0

23

Snapper 7033291YP

COLLAR, Yoke

$56.99

$

In Stock, only 1 left!

0

24

Snapper 7011048YP

BEARING, Yoke

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7011763SM

WASHER, 5/16" I.D. 1" O.D. Fender

$4.49

$

In Stock, Qty 6

0

26

Snapper 7013885YP

SPRING, Clutch / Brake

$5.99

$

In Stock, Qty 10

0

27

Snapper 703312

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

28

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 14

0

29

Snapper 7047190BMYP

SLIDE, Drive Support, Black

$12.99

$

Usually ships in 2-12 days

0

30

Snapper 703428

BOLT, 5/16-18 x .530 Shoulder, GR 2, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

31

Snapper 7014663YP

SLIDE HALF

$4.49

$

In Stock, only 2 left!

0

32

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

33

Snapper 7047189BMYP

BRACKET, Drive Support

$12.99

$

Usually ships in 2-12 days

0

34

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

35

Snapper 703465

NUT, 5/16-18, GRB, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 7015464YP

STUD, Clutch Link (3/8-24 thread)

$7.49

$

In Stock, only 1 left!

0

37

Snapper 7073733YP

ARM, Yoke

$9.49

$

Usually ships in 2-12 days

0

38

Snapper 703930

WASHER, 3/8 Internal Tooth Lock, BZ

$4.49

$

In Stock, Qty 7

0

39

Snapper 703895

NUT, 3/8-24, Hex, Grade 5, YZ

$4.49

$

In Stock, Qty 8

0

40

Snapper 7059068YP

ASSEMBLY, Leaf Spring
(Superseded to 7600141YP)

$59.99

$

Usually ships in 2-12 days

0

41

Snapper B4300GS

SCREW, 1/4-20X.500, Hex HD, Self-Tap, Zinc/Clear
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 703949

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8

$3.99

$

In Stock, Qty 18

0

43

Snapper 7090391SM

WASHER, 5/16, Internal Lock, Zinc/Clear
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

44

Snapper 7012652YP

CLIP, Wire 7/16

$3.99

$

Usually ships in 2-12 days

0

45

Snapper 7010969YP

NUT, 5/16-24 Hex Flange Lock, ZP
(Superseded to 703123)

$3.49

$

Usually ships in 2-12 days

0

46

Snapper 704287

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ

$3.99

$

In Stock, Qty 19

0

47

Snapper 7012332YP

CLAMP, 2 ID

$6.99

$

In Stock, only 3 left!

0

48

Snapper 7075115YP

BOOT, Rear Axle, Thick Flange

$10.99

$

In Stock, Qty 20+

0

49

Snapper 7011072YP

WASHER, Thrust, (Hex Flanged)

$5.99

$

In Stock, Qty 20+

0

50

Snapper 7011071YP

WASHER, Thrust, (.765 ID, 1.625 OD)(Nylon)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7012271YP

WASHER, Notched Shim, Nylon (Can make from 7011071)
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

52

Snapper 7033799YP

BRACE, CROSS

$15.99

$

Usually ships in 2-12 days

0

53

Snapper 7041384BMYP

WELDMENT, Shift Arm, Black

$51.99

$

Usually ships in 2-12 days

0

54

Snapper 7023676YP

SHIFT LINK, Long (5/16-24 both ends)

$34.99

$

In Stock, only 2 left!

0

55

Snapper 7011018YP

SHIFT LINK, Short (1.44 Long, 5/16-24 thread)

$18.99

$

Usually ships in 2-12 days

0

57

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

58

Snapper 7052827YP

ASSEMBLY, 3/4" DX Axle Bearing, (Includes 7074182, 7074500, & 7075848)

$121.99

$

In Stock, only 1 left!

0

59

Snapper 7074182YP

BEARING, 3/4" ID, DX

$5.99

$

In Stock, Qty 12

0

60

Snapper 7075848YP

FITTING, Lube, 45 Degree, 3/16 w/Hex (long shank)

$6.49

$

In Stock, only 1 left!

0

61

Snapper 7074500YP

SEAL, .750X1.25X.25, Dust / Grease

$

$

Not available
