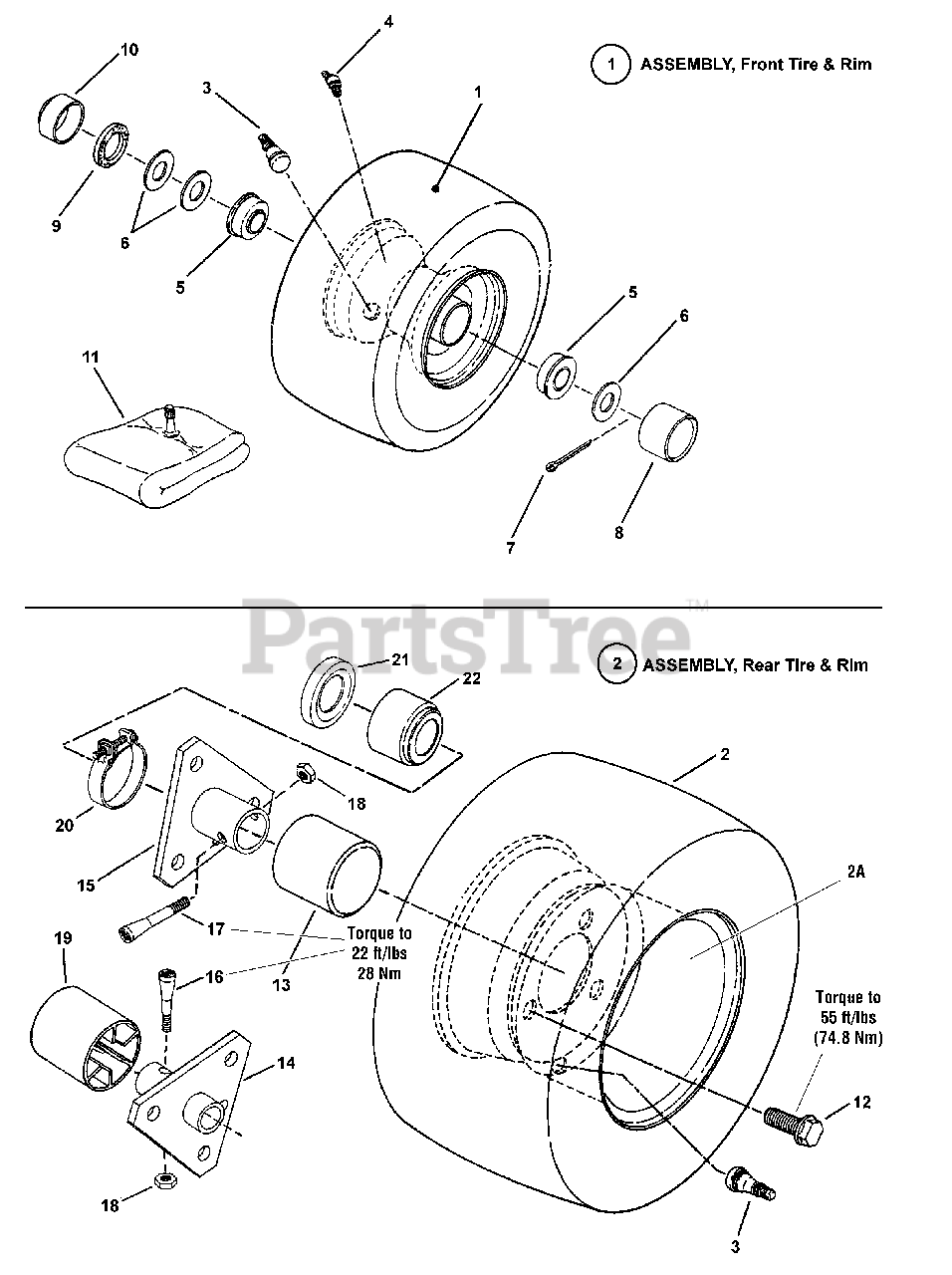

E 2813524BVE (7800978-00) - Snapper 28" Rear-Engine Riding Mower, 13.5hp Wheels Group Parts Diagram

28" Rear-Engine Riding Mower, 13.5hp

Wheels Group Parts Diagram

  • Title

01

Snapper 7106384YP

ASSEMBLY, Front Wheel, 11x4.00 - 4

$92.99

$

Usually ships in 2-12 days

0

02

Snapper 7106091YP

ASSEMBLY, Rear Wheel, K358, 15x6.50-8, Kenda

$201.99

$

Usually ships in 2-12 days

0

02A

Snapper 7012163YP

RIM, 8X5.375 3 Hole, Extra Wide (For 16/7.50 x 8 Tire)

$121.99

$

Usually ships in 2-12 days

0

03

Snapper 7012234SM

AIR VALVE STEM, Snap-In

$6.49

$

In Stock, only 2 left!

0

04

Snapper 7014669YP

LUBE FITTING, Straight (Press into 3/16" hole)

$4.49

$

In Stock, only 2 left!

0

05

Snapper 7011807YP

BEARING, Ball, Flanged (3/4 ID, 1-3/8 OD)

$7.99

$

In Stock, Qty 20+

0

06

Snapper 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

07

Snapper 703984

PIN, 5/32 x 1 Cotter

$4.49

$

In Stock, Qty 20+

0

08

Snapper 7011022YP

HUBCAP

$4.49

$

In Stock, Qty 20+

0

09

Snapper 7011032YP

SEAL, Felt

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7031038YP

CAP, Dust

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7010821YP

TUBE, Inner (For 4.10/3.50 x 4 Tire)

$18.99

$

In Stock, Qty 9

0

12

Snapper 703431

BOLT, Hex Washer, 1/2-20 X .750

$4.99

$

In Stock, Qty 6

0

13

Snapper 7023895YP

CAP, Hub, R.H., 1.35 ID x 2.25"

$6.99

$

In Stock, only 1 left!

0

14

Snapper 7040434YP

HUB, Rear Wheel, 3 Hole 3/4 ID, LH

$37.99

$

In Stock, Qty 5

0

15

Snapper 7040433YP

HUB, Rear Wheel, 3 Hole 1.25 ID, RH

$37.99

$

Usually ships in 2-12 days

0

16

Snapper 7011035YP

BOLT, 5/16-24 x 1-5/8 Tapered, Axle (Left Hand)

$4.99

$

In Stock, Qty 20+

0

17

Snapper 7011013YP

BOLT, 5/16-24 x 2 Tapered, Axle (Right Hand)

$6.49

$

In Stock, Qty 17

0

18

Snapper 703459

NUT, 5/16-24, Hex Crown Lock,GR C, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7023522YP

CAP, Hub, L.H., .975 ID x 2.25"

$6.49

$

In Stock, Qty 9

0

20

Snapper 7012332YP

CLAMP, 2 ID

$6.99

$

In Stock, only 3 left!

0

21

Snapper 7011817YP

SEAL, 1.22 ID x 1.875 OD

$5.49

$

In Stock, Qty 19

0

22

Snapper 7031732YP

CAP, Seal 1.0 ID x 1.67 OD

$6.49

$

In Stock, Qty 20+

0
